Datasheet AD835 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 250 MHz, Voltage Output 4-Quadrant Multiplier |
| Pages / Page | 14 / 5 — Data Sheet. AD835. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. … |
| Revision | E |
| File Format / Size | PDF / 259 Kb |
| Document Language | English |

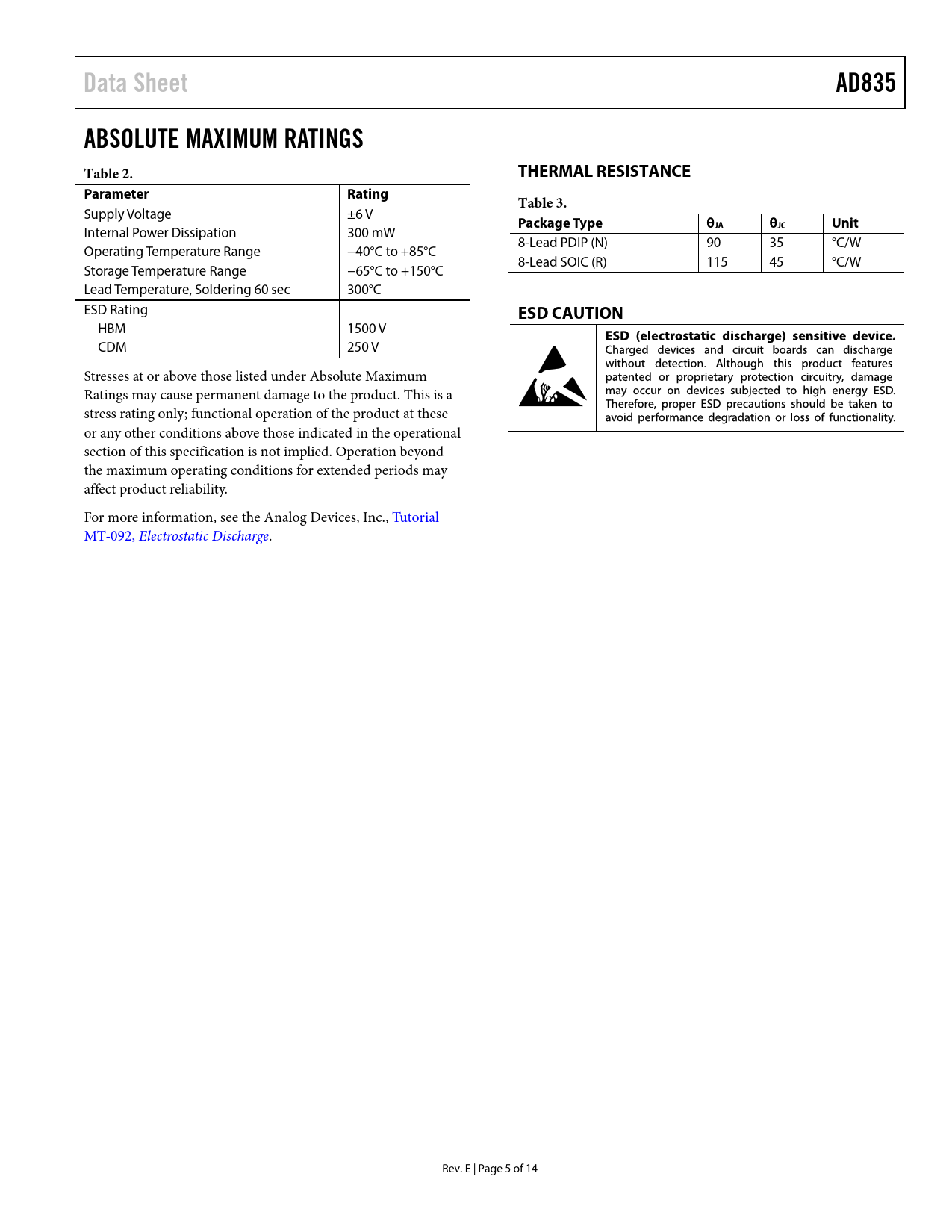

Data Sheet. AD835. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Package Type. θJC. Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet AD835 ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating Table 3.
Supply Voltage ±6 V
Package Type θ
Internal Power Dissipation 300 mW
JA θJC Unit
8-Lead PDIP (N) 90 35 °C/W Operating Temperature Range −40°C to +85°C 8-Lead SOIC (R) 115 45 °C/W Storage Temperature Range −65°C to +150°C Lead Temperature, Soldering 60 sec 300°C ESD Rating
ESD CAUTION
HBM 1500 V CDM 250 V Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. For more information, see the Analog Devices, Inc., Tutorial MT-092, Electrostatic Discharge. Rev. E | Page 5 of 14 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC THEORY SCALING ADJUSTMENT APPLICATIONS INFORMATION MULTIPLIER CONNECTIONS WIDEBAND VOLTAGE-CONTROLLED AMPLIFIER AMPLITUDE MODULATOR SQUARING AND FREQUENCY DOUBLING OUTLINE DIMENSIONS ORDERING GUIDE
