Datasheet PA22 (Apex) - 9
| Manufacturer | Apex |
| Description | High Voltage Power Operational Amplifiers |
| Pages / Page | 14 / 9 — PA22. Figure 12: Step Response. Figure 13: Pulse Response. Figure 14: … |
| File Format / Size | PDF / 3.1 Mb |
| Document Language | English |

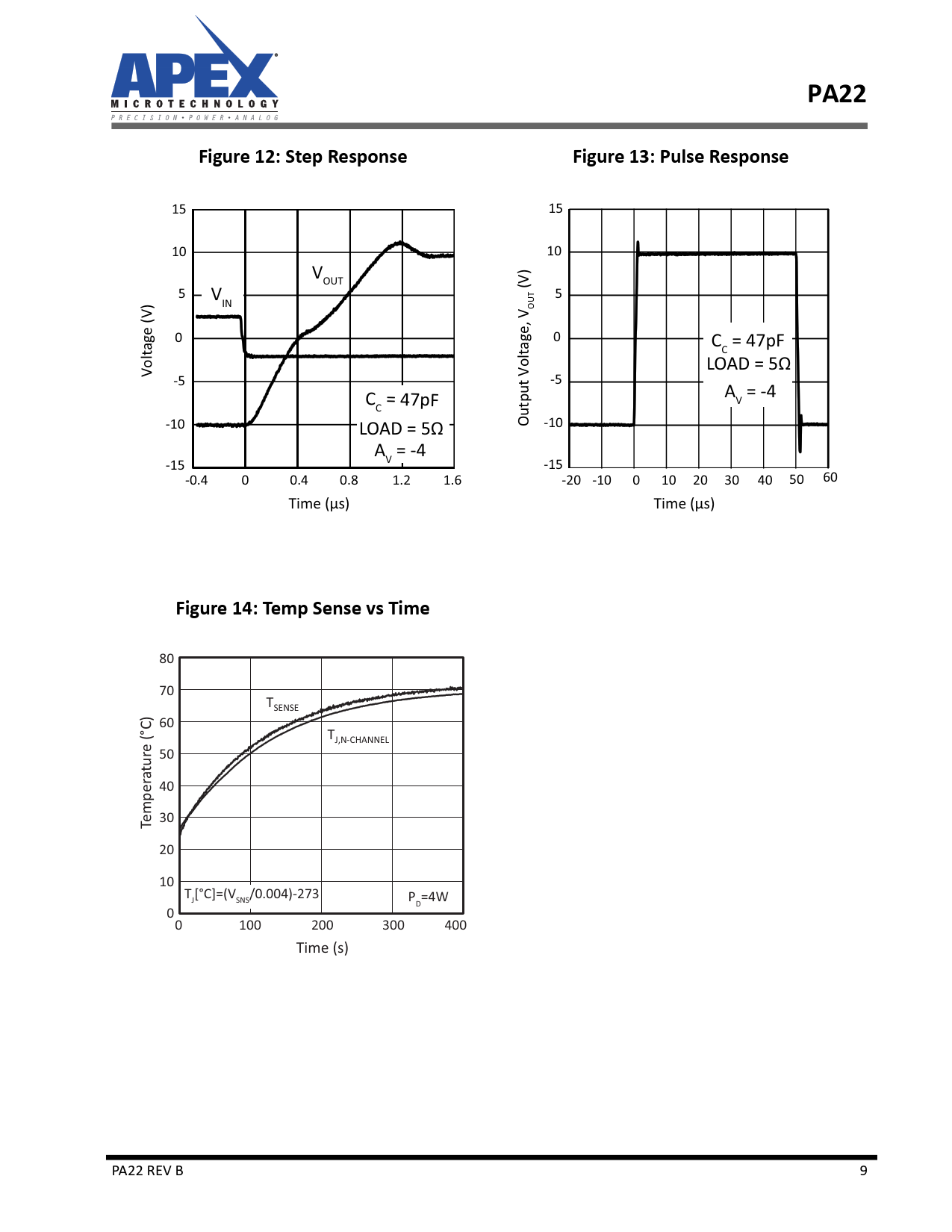

PA22. Figure 12: Step Response. Figure 13: Pulse Response. Figure 14: Temp Sense vs Time
Model Line for this Datasheet
Text Version of Document
PA22 Figure 12: Step Response Figure 13: Pulse Response
15 15 10 10 VOUT (V) 5 V 5 IN OUT 0 0 C = 47pF C LOAD = 5ё Voltage (V) -5 -5 C = 47pF A = -4 V C -10 LO AD = 5ё Output Voltage, V -10 A = -4 -15 V -15 -0.4 0 0.4 0.8 1.2 1.6 -20 -10 0 10 20 30 40 50 60 Time (μs) Time (μs)
Figure 14: Temp Sense vs Time
80 70 TSENSE 60 TJ,N-CHANNEL e (°C) 50 tur a 40 30 Temper 20 10 T [°C]=(V /0.004)-273 J SNS P =4W D 00 100 200 300 400 Time (s) PA22 REV B 9 Document Outline Features Applications Description Figure 1: Equivalent Schematic Typical Connection Figure 2: Typical Connection Pinout and Description Table Figure 3: External Connections Specifications Absolute Maximum Ratings Input Gain Output Power Supply Thermal Figure 14: Temp Sense vs Time General Safe operating area (SOA) Figure 15: Safe Operating Area (SOA) typical application Figure 16: Typical Application Schematic current limit overvoltage protection Figure 17: Overvoltage Protection power supply bypassing phase Compensation Temperature Sense Package Options Package Outline (Style LL)
