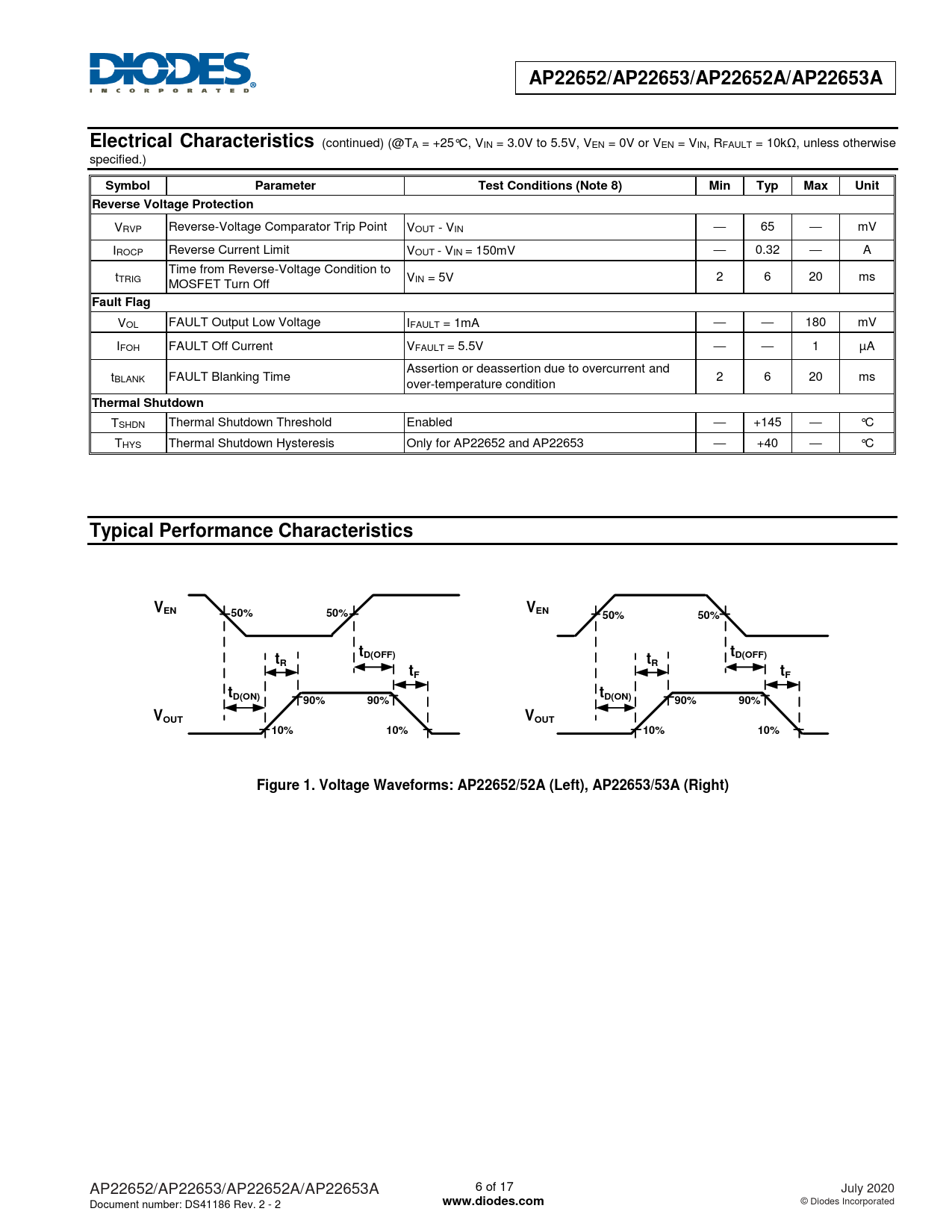

AP22652/AP22653/AP22652A/AP22653A. Electrical Characteristics. Symbol. Parameter. Test Conditions (Note 8). Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
AP22652/AP22653/AP22652A/AP22653A Electrical Characteristics
(continued) (@TA = +25°C, VIN = 3.0V to 5.5V, VEN = 0V or VEN = VIN, RFAULT = 10kΩ, unless otherwise specified.)
Symbol Parameter Test Conditions (Note 8) Min Typ Max Unit Reverse Voltage Protection
VRVP Reverse-Voltage Comparator Trip Point VOUT - VIN — 65 — mV IROCP Reverse Current Limit VOUT - VIN = 150mV — 0.32 — A Time from Reverse-Voltage Condition to tTRIG V MOSFET Turn Off IN = 5V 2 6 20 ms
Fault Flag
VOL FAULT Output Low Voltage IFAULT = 1mA — — 180 mV IFOH FAULT Off Current VFAULT = 5.5V — — 1 µA Assertion or deassertion due to overcurrent and tBLANK FAULT Blanking Time 2 6 20 ms over-temperature condition
Thermal Shutdown
TSHDN Thermal Shutdown Threshold Enabled — +145 — °C THYS Thermal Shutdown Hysteresis Only for AP22652 and AP22653 — +40 — °C
Typical Performance Characteristics VEN VEN 50% 50% 50% 50% tD(OFF) tD(OFF) tR tR tF tF tD(ON) tD(ON) 90% 90% 90% 90% VOUT VOUT 10% 10% 10% 10% Figure 1. Voltage Waveforms: AP22652/52A (Left), AP22653/53A (Right)
