LTC3889

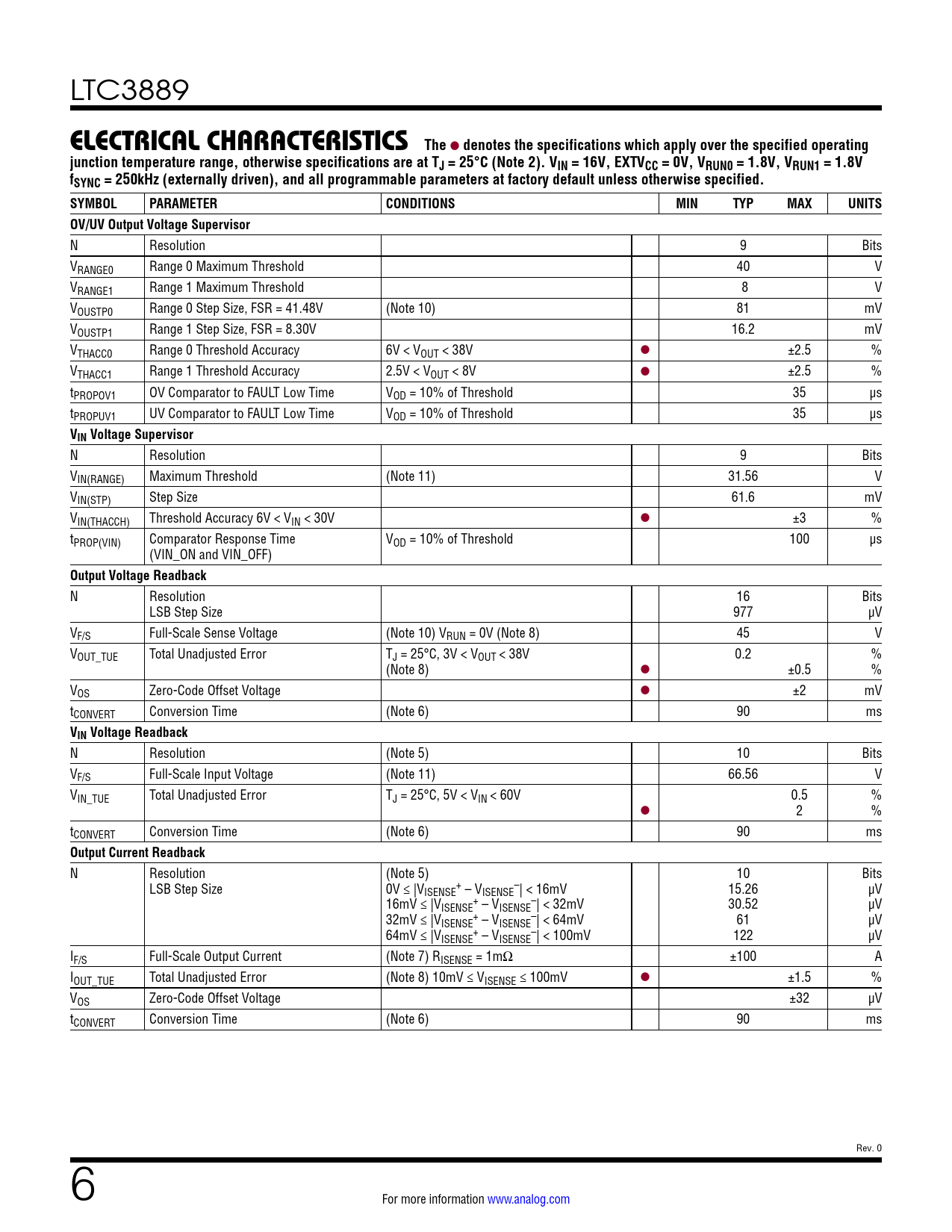

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TJ = 25°C (Note 2). VIN = 16V, EXTVCC = 0V, VRUN0 = 1.8V, VRUN1 = 1.8V fSYNC = 250kHz (externally driven), and all programmable parameters at factory default unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS OV/UV Output Voltage Supervisor
N Resolution 9 Bits VRANGE0 Range 0 Maximum Threshold 40 V VRANGE1 Range 1 Maximum Threshold 8 V VOUSTP0 Range 0 Step Size, FSR = 41.48V (Note 10) 81 mV VOUSTP1 Range 1 Step Size, FSR = 8.30V 16.2 mV VTHACC0 Range 0 Threshold Accuracy 6V < VOUT < 38V l ±2.5 % VTHACC1 Range 1 Threshold Accuracy 2.5V < VOUT < 8V l ±2.5 % tPROPOV1 OV Comparator to FAULT Low Time VOD = 10% of Threshold 35 µs tPROPUV1 UV Comparator to FAULT Low Time VOD = 10% of Threshold 35 µs
