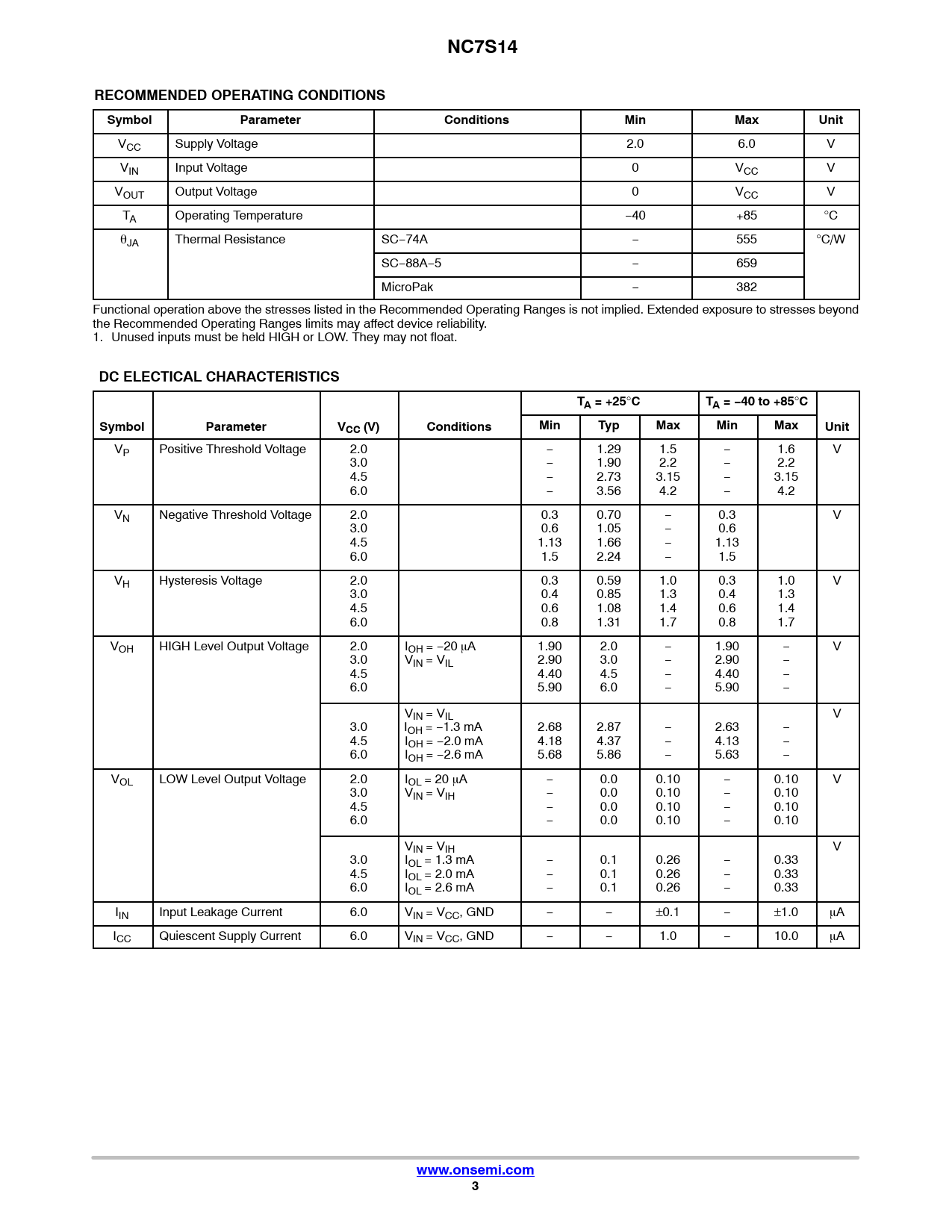

NC7S14. RECOMMENDED OPERATING CONDITIONS. Symbol. Parameter. Conditions. Min. Max. Unit. DC ELECTICAL CHARACTERISTICS. TA = +25
Model Line for this Datasheet
Text Version of Document
NC7S14 RECOMMENDED OPERATING CONDITIONS Symbol Parameter Conditions Min Max Unit
VCC Supply Voltage 2.0 6.0 V VIN Input Voltage 0 VCC V VOUT Output Voltage 0 VCC V TA Operating Temperature −40 +85 °C qJA Thermal Resistance SC−74A − 555 °C/W SC−88A−5 − 659 MicroPak − 382 Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended Operating Ranges limits may affect device reliability. 1. Unused inputs must be held HIGH or LOW. They may not float.
DC ELECTICAL CHARACTERISTICS TA = +25
°
C TA = −40 to +85
°
C Symbol Parameter VCC (V) Conditions Min Typ Max Min Max Unit
VP Positive Threshold Voltage 2.0 − 1.29 1.5 − 1.6 V 3.0 − 1.90 2.2 − 2.2 4.5 − 2.73 3.15 − 3.15 6.0 − 3.56 4.2 − 4.2 VN Negative Threshold Voltage 2.0 0.3 0.70 − 0.3 V 3.0 0.6 1.05 − 0.6 4.5 1.13 1.66 − 1.13 6.0 1.5 2.24 − 1.5 VH Hysteresis Voltage 2.0 0.3 0.59 1.0 0.3 1.0 V 3.0 0.4 0.85 1.3 0.4 1.3 4.5 0.6 1.08 1.4 0.6 1.4 6.0 0.8 1.31 1.7 0.8 1.7 VOH HIGH Level Output Voltage 2.0 IOH = −20 mA 1.90 2.0 − 1.90 − V 3.0 VIN = VIL 2.90 3.0 − 2.90 − 4.5 4.40 4.5 − 4.40 − 6.0 5.90 6.0 − 5.90 − VIN = VIL V 3.0 IOH = −1.3 mA 2.68 2.87 − 2.63 − 4.5 IOH = −2.0 mA 4.18 4.37 − 4.13 − 6.0 IOH = −2.6 mA 5.68 5.86 − 5.63 − VOL LOW Level Output Voltage 2.0 IOL = 20 mA − 0.0 0.10 − 0.10 V 3.0 VIN = VIH − 0.0 0.10 − 0.10 4.5 − 0.0 0.10 − 0.10 6.0 − 0.0 0.10 − 0.10 VIN = VIH V 3.0 IOL = 1.3 mA − 0.1 0.26 − 0.33 4.5 IOL = 2.0 mA − 0.1 0.26 − 0.33 6.0 IOL = 2.6 mA − 0.1 0.26 − 0.33 IIN Input Leakage Current 6.0 VIN = VCC, GND − − ±0.1 − ±1.0 mA ICC Quiescent Supply Current 6.0 VIN = VCC, GND − − 1.0 − 10.0 mA
