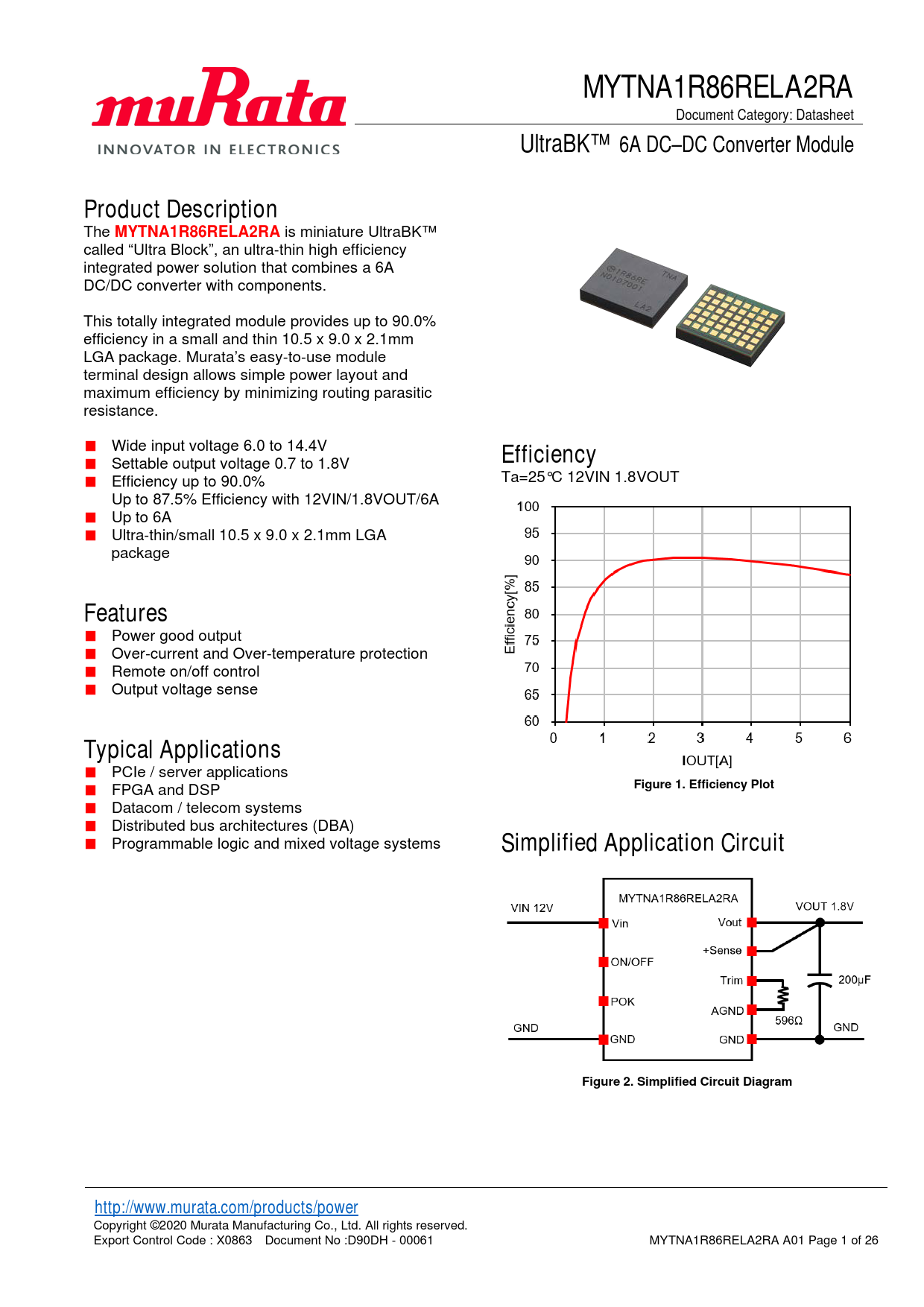

MYTNA1R86RELA2RA
Document Category: Datasheet UltraBK™ 6A DC–DC Converter Module
Product Description
The MYTNA1R86RELA2RA is miniature UltraBK™
called “Ultra Block”, an ultra-thin high efficiency
integrated power solution that combines a 6A
DC/DC converter with components.
This totally integrated module provides up to 90.0%
efficiency in a small and thin 10.5 x 9.0 x 2.1mm
LGA package. Murata’s easy-to-use module
terminal design allows simple power layout and
maximum efficiency by minimizing routing parasitic
resistance.


■ Wide input voltage 6.0 to 14.4V
Settable output voltage 0.7 to 1.8V
Efficiency up to 90.0%
Up to 87.5% Efficiency with 12VIN/1.8VOUT/6A
■ Up to 6A
■ Ultra-thin/small 10.5 x 9.0 x 2.1mm LGA
package Efficiency
Ta=25°C 12VIN 1.8VOUT Features



■ Power good output
Over-current and Over-temperature protection
Remote on/off control
Output voltage sense Typical Applications




■ PCIe / server applications
FPGA and DSP
Datacom / telecom systems
Distributed bus architectures (DBA)
Programmable logic and mixed voltage systems Figure 1. Efficiency Plot Simplified Application Circuit Figure 2. Simplified Circuit Diagram http://www.murata.com/products/power
