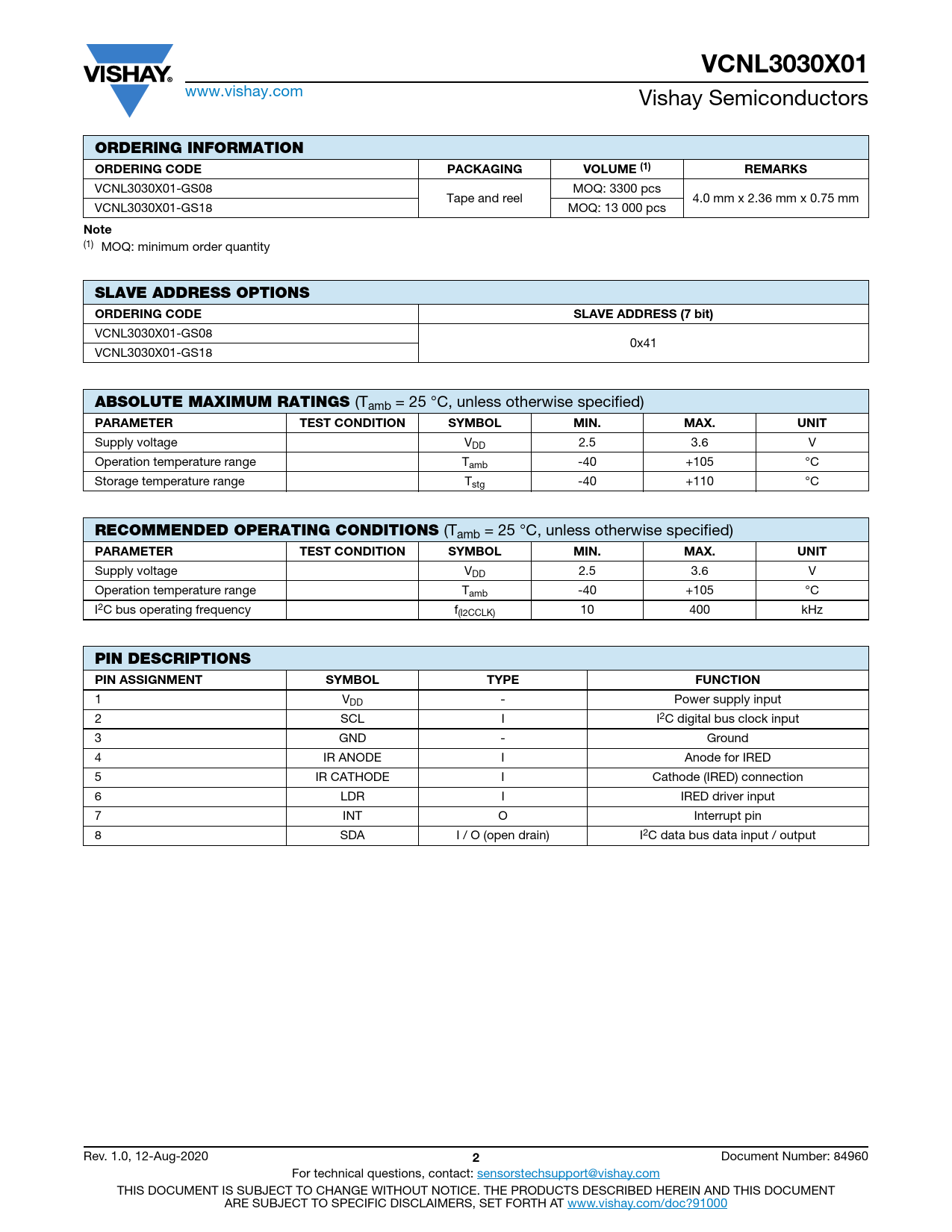

VCNL3030X01
www.vishay.com Vishay Semiconductors
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
VCNL3030X01-GS08 MOQ: 3300 pcs Tape and reel 4.0 mm x 2.36 mm x 0.75 mm VCNL3030X01-GS18 MOQ: 13 000 pcs
Note
(1) MOQ: minimum order quantity
SLAVE ADDRESS OPTIONS ORDERING CODE SLAVE ADDRESS (7 bit)
VCNL3030X01-GS08 0x41 VCNL3030X01-GS18
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage VDD 2.5 3.6 V Operation temperature range Tamb -40 +105 °C Storage temperature range Tstg -40 +110 °C
RECOMMENDED OPERATING CONDITIONS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage VDD 2.5 3.6 V Operation temperature range Tamb -40 +105 °C I2C bus operating frequency f(I2CCLK) 10 400 kHz
PIN DESCRIPTIONS PIN ASSIGNMENT SYMBOL TYPE FUNCTION
1 VDD - Power supply input 2 SCL I I2C digital bus clock input 3 GND - Ground 4 IR ANODE I Anode for IRED 5 IR CATHODE I Cathode (IRED) connection 6 LDR I IRED driver input 7 INT O Interrupt pin 8 SDA I / O (open drain) I2C data bus data input / output Rev. 1.0, 12-Aug-2020
2
Document Number: 84960 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
EMS supplier
