Datasheet AUIRL7732S2TR, AUIRL7732S2TR1 (International Rectifier) - 10
| Manufacturer | International Rectifier |
| Description | Automotive Grade. DirectFET Power MOSFET |
| Pages / Page | 11 / 10 — REEL DIMENSIONS. (QTY 4800). (QTY 1000) |
| File Format / Size | PDF / 221 Kb |
| Document Language | English |
REEL DIMENSIONS. (QTY 4800). (QTY 1000)
Model Line for this Datasheet
Text Version of Document

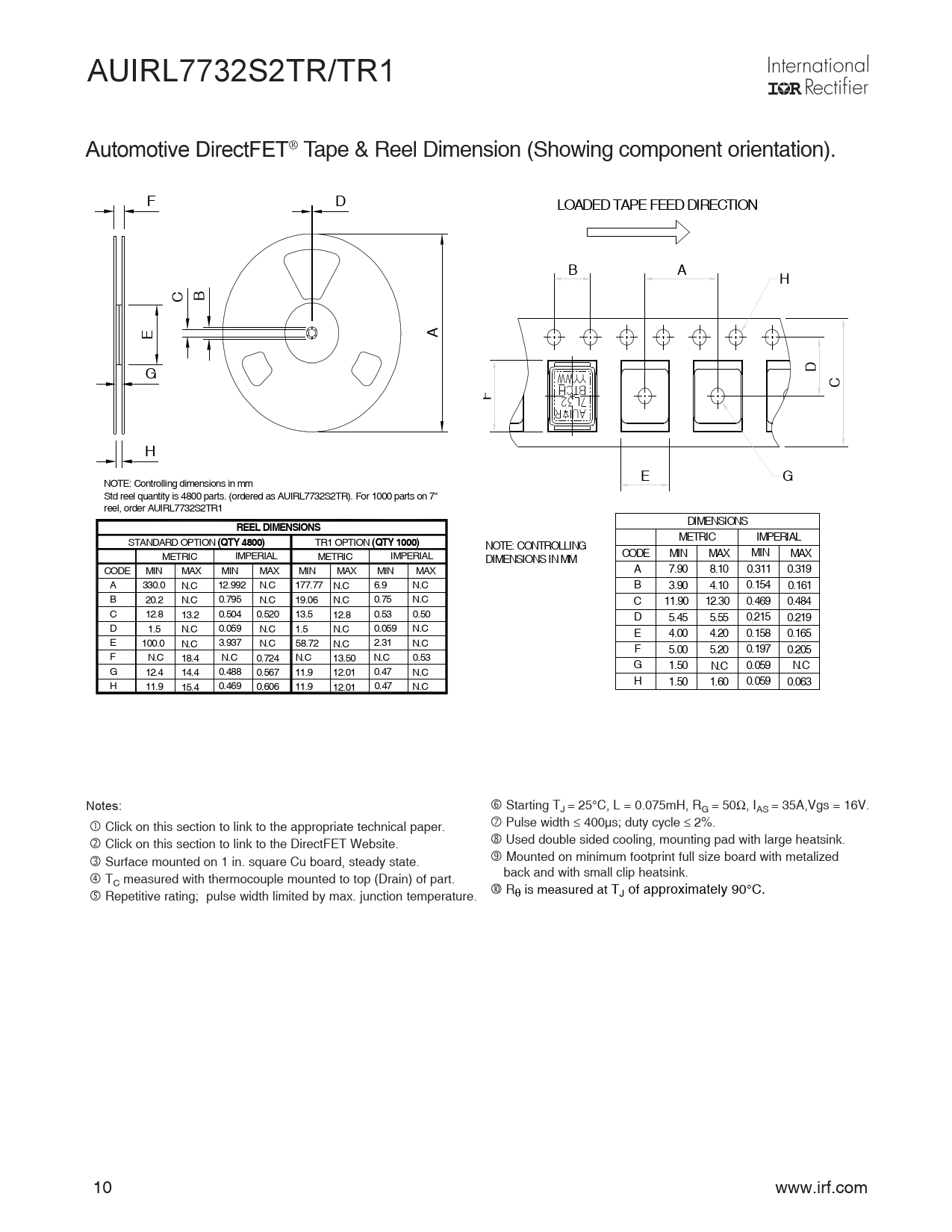

AUIRL7732S2TR/TR1 Automotive DirectFET® Tape & Reel Dimension (Showing component orientation). F D LOADED TAPE FEED DIRECTION B A H C B E A G D C F H E G NOTE: Controlling dimensions in mm Std reel quantity is 4800 parts. (ordered as AUIRL7732S2TR). For 1000 parts on 7" reel, order AUIRL7732S2TR1 DIMENSIONS
REEL DIMENSIONS
STANDARD OPTION
(QTY 4800)
TR1 OPTION
(QTY 1000)
METRIC IMPERIAL NOTE: CONTROLLING METRIC IMPERIAL METRIC IMPERIAL DIMENSIONS IN MM CODE MIN MAX MIN MAX CODE MIN MAX MIN MAX MIN MAX MIN MAX A 7.90 8.10 0.311 0.319 A 330.0 N.C 12.992 N.C 177.77 N.C 6.9 N.C B 3.90 4.10 0.154 0.161 B 20.2 N.C 0.795 N.C 19.06 N.C 0.75 N.C C 11.90 12.30 0.469 0.484 C 12.8 13.2 0.504 0.520 13.5 12.8 0.53 0.50 D 5.45 5.55 0.215 0.219 D 1.5 N.C 0.059 N.C 1.5 N.C 0.059 N.C E 4.00 4.20 0.158 0.165 E 100.0 N.C 3.937 N.C 58.72 N.C 2.31 N.C F 5.00 5.20 0.197 0.205 F N.C 18.4 N.C 0.724 N.C 13.50 N.C 0.53 G 1.50 N.C 0.059 G N.C 12.4 14.4 0.488 0.567 11.9 12.01 0.47 N.C H 11.9 H 15.4 0.469 0.606 11.9 12.01 0.47 N.C 1.50 1.60 0.059 0.063 Notes: Starting TJ = 25°C, L = 0.075mH, RG = 50Ω, IAS = 35A,Vgs = 16V. Click on this section to link to the appropriate technical paper. Pulse width ≤ 400μs; duty cycle ≤ 2%. Click on this section to link to the DirectFET Website. Used double sided cooling, mounting pad with large heatsink. Surface mounted on 1 in. square Cu board, steady state. Mounted on minimum footprint full size board with metalized T back and with small clip heatsink. C measured with thermocouple mounted to top (Drain) of part. Repetitive rating; pulse width limited by max. junction temperature. Rθ is measured at TJ of approximately 90°C. 10 www.irf.com
