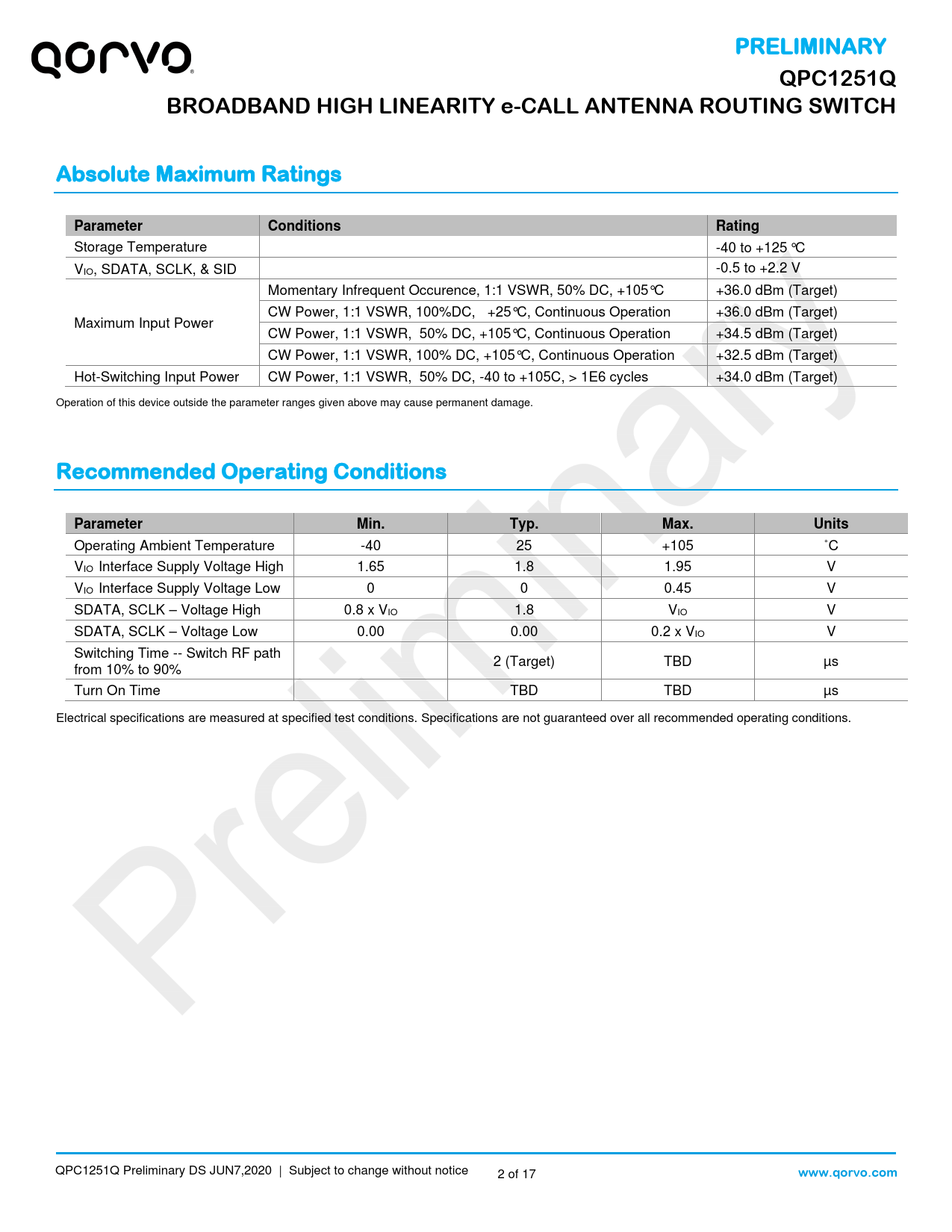

PRELIMINARY. QPC1251Q. BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH. Absolute Maximum Ratings. Parameter. Conditions
Model Line for this Datasheet
Text Version of Document
PRELIMINARY QPC1251Q BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH Absolute Maximum Ratings Parameter Conditions Rating
Storage Temperature -40 to +125 °C VIO, SDATA, SCLK, & SID -0.5 to +2.2 V Momentary Infrequent Occurence, 1:1 VSWR, 50% DC, +105°C +36.0 dBm (Target) CW Power, 1:1 VSWR, 100%DC, +25°C, Continuous Operation +36.0 dBm (Target) Maximum Input Power CW Power, 1:1 VSWR, 50% DC, +105°C, Continuous Operation +34.5 dBm (Target) CW Power, 1:1 VSWR, 100% DC, +105°C, Continuous Operation +32.5 dBm (Target) Hot-Switching Input Power CW Power, 1:1 VSWR, 50% DC, -40 to +105C, > 1E6 cycles +34.0 dBm (Target) Operation of this device outside the parameter ranges given above may cause permanent damage.
Recommended Operating Conditions Parameter Min. Typ. Max. Units
Operating Ambient Temperature -40 25 +105 ˚C VIO Interface Supply Voltage High 1.65 1.8 1.95 V VIO Interface Supply Voltage Low 0 0 0.45 V SDATA, SCLK – Voltage High 0.8 x VIO 1.8 VIO V SDATA, SCLK – Voltage Low 0.00 0.00 0.2 x VIO V Switching Time -- Switch RF path 2 (Target) TBD µs from 10% to 90% Turn On Time TBD TBD µs Electrical specifications are measured at specified test conditions. Specifications are not guaranteed over all recommended operating conditions. QPC1251Q Preliminary DS JUN7,2020 | Subject to change without notice 2 of 17
