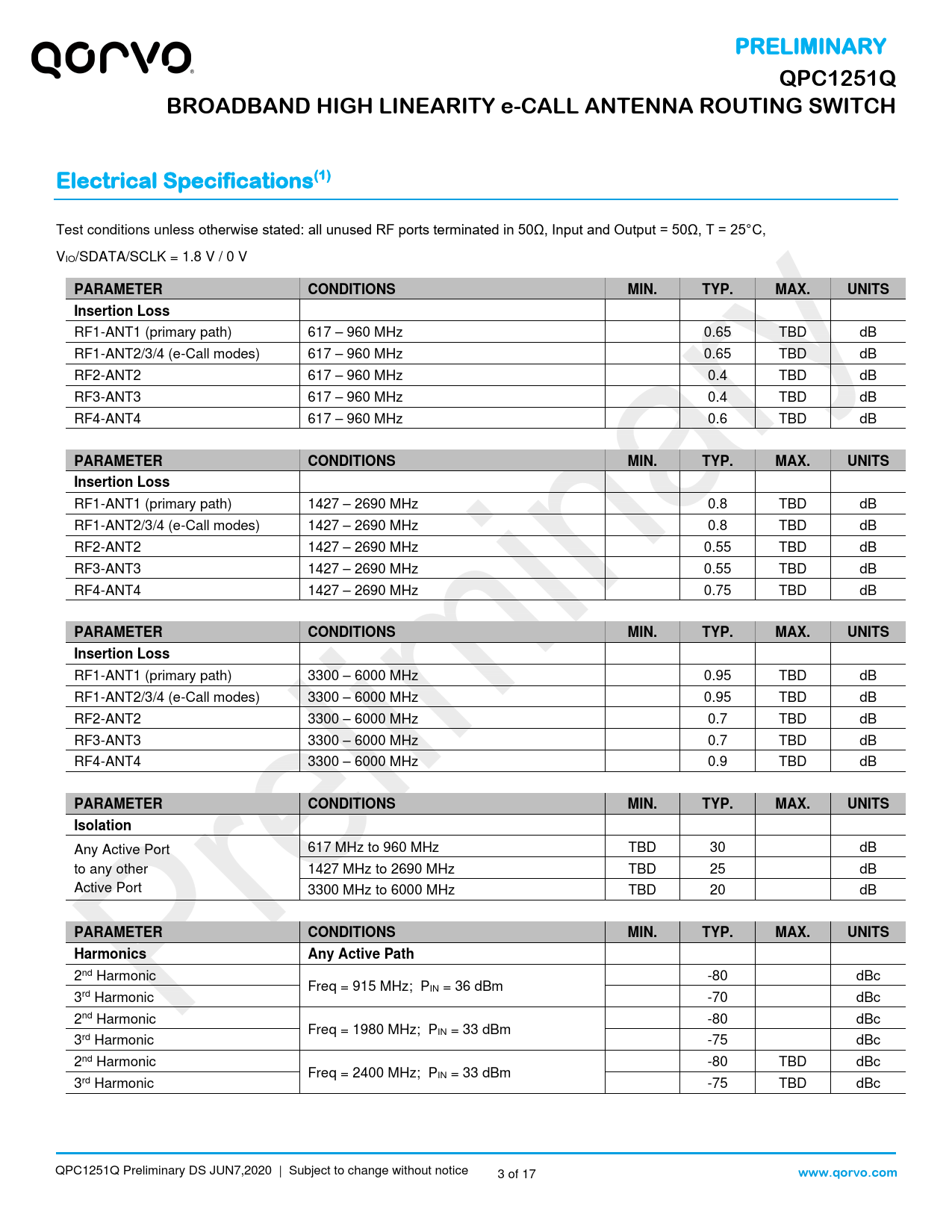

Preliminary Datasheet QPC1251Q (Qorvo) - 3

PRELIMINARY QPC1251Q BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH Electrical Specifications(1)
Test conditions unless otherwise stated: all unused RF ports terminated in 50Ω, Input and Output = 50Ω, T = 25°C, VIO/SDATA/SCLK = 1.8 V / 0 V
PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Insertion Loss
RF1-ANT1 (primary path) 617 – 960 MHz 0.65 TBD dB RF1-ANT2/3/4 (e-Call modes) 617 – 960 MHz 0.65 TBD dB RF2-ANT2 617 – 960 MHz 0.4 TBD dB RF3-ANT3 617 – 960 MHz 0.4 TBD dB RF4-ANT4 617 – 960 MHz 0.6 TBD dB
PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Insertion Loss
RF1-ANT1 (primary path) 1427 – 2690 MHz 0.8 TBD dB RF1-ANT2/3/4 (e-Call modes) 1427 – 2690 MHz 0.8 TBD dB RF2-ANT2 1427 – 2690 MHz 0.55 TBD dB RF3-ANT3 1427 – 2690 MHz 0.55 TBD dB RF4-ANT4 1427 – 2690 MHz 0.75 TBD dB
PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Insertion Loss
RF1-ANT1 (primary path) 3300 – 6000 MHz 0.95 TBD dB RF1-ANT2/3/4 (e-Call modes) 3300 – 6000 MHz 0.95 TBD dB RF2-ANT2 3300 – 6000 MHz 0.7 TBD dB RF3-ANT3 3300 – 6000 MHz 0.7 TBD dB RF4-ANT4 3300 – 6000 MHz 0.9 TBD dB
PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Isolation
Any Active Port 617 MHz to 960 MHz TBD 30 dB to any other 1427 MHz to 2690 MHz TBD 25 dB Active Port

3300 MHz to 6000 MHz TBD 20 dB
PARAMETER CONDITIONS MIN. TYP. MAX. UNITS Harmonics Any Active Path
2nd Harmonic -80 dBc Freq = 915 MHz; PIN = 36 dBm 3rd Harmonic -70 dBc 2nd Harmonic

-80 dBc Freq = 1980 MHz; PIN = 33 dBm 3rd Harmonic

-75 dBc 2nd Harmonic -80 TBD dBc Freq = 2400 MHz; PIN = 33 dBm 3rd Harmonic -75 TBD dBc QPC1251Q Preliminary DS JUN7,2020 | Subject to change without notice 3 of 17
