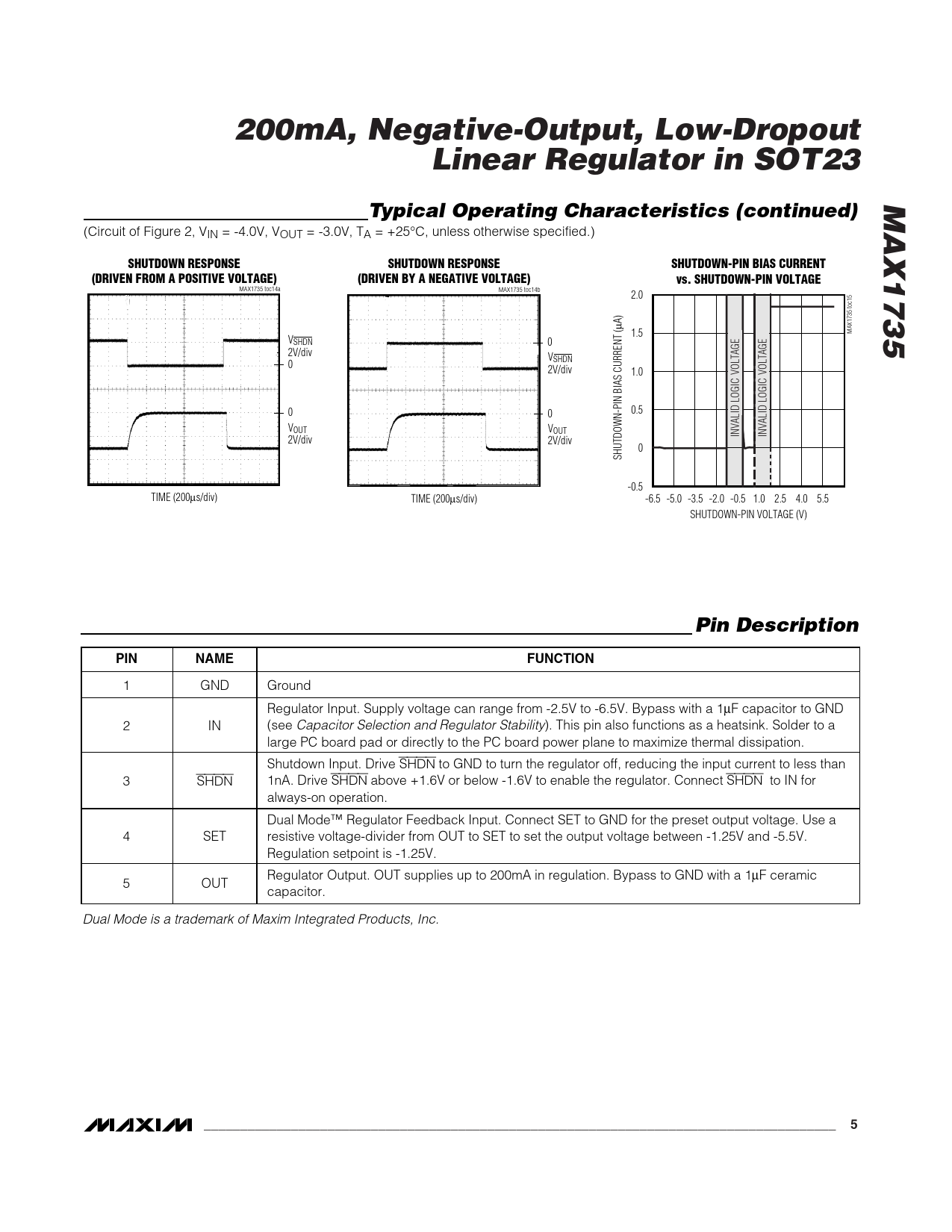

200mA, Negative-Output, Low-Dropout. Linear Regulator in SOT23. MAX1735. Typical Operating Characteristics (continued)
Model Line for this Datasheet
Text Version of Document
200mA, Negative-Output, Low-Dropout Linear Regulator in SOT23 MAX1735 Typical Operating Characteristics (continued)
(Circuit of Figure 2, VIN = -4.0V, VOUT = -3.0V, TA = +25°C, unless otherwise specified.)
SHUTDOWN RESPONSE SHUTDOWN RESPONSE SHUTDOWN-PIN BIAS CURRENT (DRIVEN FROM A POSITIVE VOLTAGE) (DRIVEN BY A NEGATIVE VOLTAGE) vs. SHUTDOWN-PIN VOLTAGE
MAX1735 toc14a MAX1735 toc14b 2.0 µA) 1.5 MAX1735 toc15 VSHDN 0 2V/div VSHDN 0 2V/div 1.0 0 0 0.5 VOUT VOUT INVALID LOGIC VOLTAGE INVALID LOGIC VOLTAGE 2V/div 2V/div 0 SHUTDOWN-PIN BIAS CURRENT ( -0.5 TIME (200µs/div) TIME (200µs/div) -6.5 -5.0 -3.5 -2.0 -0.5 1.0 2.5 4.0 5.5 SHUTDOWN-PIN VOLTAGE (V)
Pin Description PIN NAME FUNCTION
1 GND Ground Regulator Input. Supply voltage can range from -2.5V to -6.5V. Bypass with a 1µF capacitor to GND 2 IN (see Capacitor Selection and Regulator Stability). This pin also functions as a heatsink. Solder to a large PC board pad or directly to the PC board power plane to maximize thermal dissipation. Shutdown Input. Drive SHDN to GND to turn the regulator off, reducing the input current to less than 3 SHDN 1nA. Drive SHDN above +1.6V or below -1.6V to enable the regulator. Connect SHDN to IN for always-on operation. Dual Mode™ Regulator Feedback Input. Connect SET to GND for the preset output voltage. Use a 4 SET resistive voltage-divider from OUT to SET to set the output voltage between -1.25V and -5.5V. Regulation setpoint is -1.25V. Regulator Output. OUT supplies up to 200mA in regulation. Bypass to GND with a 1µF ceramic 5 OUT capacitor. Dual Mode is a trademark of Maxim Integrated Products, Inc.
_______________________________________________________________________________________ 5
(Circuit of Figure 2, VIN = -4.0V, VOUT = -3.0V, TA = +25°C, unless otherwise specified.)
SHUTDOWN RESPONSE SHUTDOWN RESPONSE SHUTDOWN-PIN BIAS CURRENT (DRIVEN FROM A POSITIVE VOLTAGE) (DRIVEN BY A NEGATIVE VOLTAGE) vs. SHUTDOWN-PIN VOLTAGE
MAX1735 toc14a MAX1735 toc14b 2.0 µA) 1.5 MAX1735 toc15 VSHDN 0 2V/div VSHDN 0 2V/div 1.0 0 0 0.5 VOUT VOUT INVALID LOGIC VOLTAGE INVALID LOGIC VOLTAGE 2V/div 2V/div 0 SHUTDOWN-PIN BIAS CURRENT ( -0.5 TIME (200µs/div) TIME (200µs/div) -6.5 -5.0 -3.5 -2.0 -0.5 1.0 2.5 4.0 5.5 SHUTDOWN-PIN VOLTAGE (V)
Pin Description PIN NAME FUNCTION
1 GND Ground Regulator Input. Supply voltage can range from -2.5V to -6.5V. Bypass with a 1µF capacitor to GND 2 IN (see Capacitor Selection and Regulator Stability). This pin also functions as a heatsink. Solder to a large PC board pad or directly to the PC board power plane to maximize thermal dissipation. Shutdown Input. Drive SHDN to GND to turn the regulator off, reducing the input current to less than 3 SHDN 1nA. Drive SHDN above +1.6V or below -1.6V to enable the regulator. Connect SHDN to IN for always-on operation. Dual Mode™ Regulator Feedback Input. Connect SET to GND for the preset output voltage. Use a 4 SET resistive voltage-divider from OUT to SET to set the output voltage between -1.25V and -5.5V. Regulation setpoint is -1.25V. Regulator Output. OUT supplies up to 200mA in regulation. Bypass to GND with a 1µF ceramic 5 OUT capacitor. Dual Mode is a trademark of Maxim Integrated Products, Inc.
_______________________________________________________________________________________ 5
