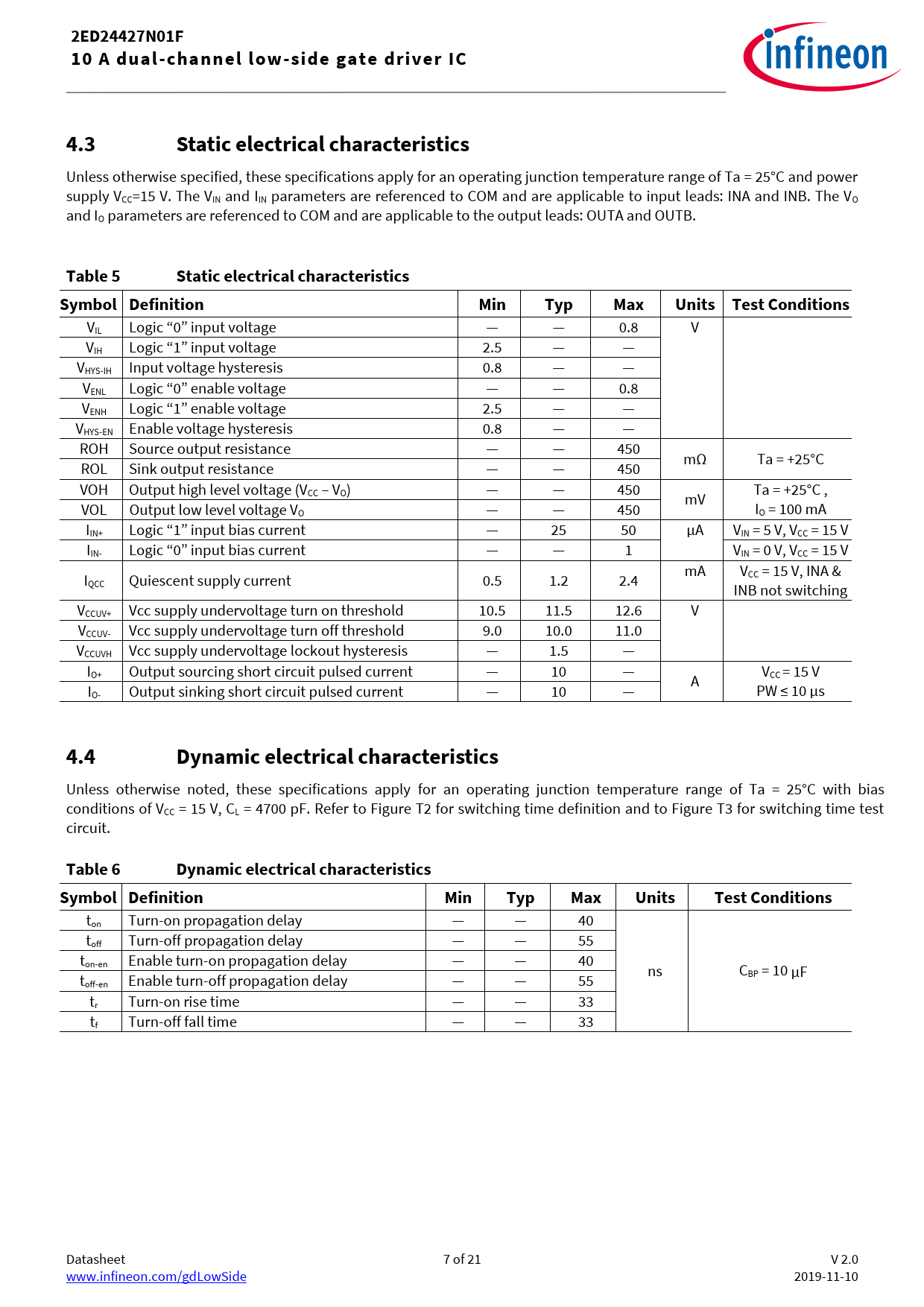

2ED24427N01F 10 A dual-channel low-side gate driver IC 4.3 Static electrical characteristics
Unless otherwise specified, these specifications apply for an operating junction temperature range of Ta = 25°C and power supply VCC=15 V. The VIN and IIN parameters are referenced to COM and are applicable to input leads: INA and INB. The VO and IO parameters are referenced to COM and are applicable to the output leads: OUTA and OUTB.
Table 5 Static electrical characteristics Symbol Definition Min Typ Max Units Test Conditions
VIL Logic “0” input voltage — — 0.8 V VIH Logic “1” input voltage 2.5 — — VHYS-IH Input voltage hysteresis 0.8 — — VENL Logic “0” enable voltage — — 0.8 VENH Logic “1” enable voltage 2.5 — — VHYS-EN Enable voltage hysteresis 0.8 — — ROH Source output resistance — — 450 mΩ Ta = +25°C ROL Sink output resistance — — 450 VOH Output high level voltage (VCC – VO) — — 450 Ta = +25°C , mV VOL Output low level voltage VO — — 450 IO = 100 mA IIN+ Logic “1” input bias current — 25 50 µA VIN = 5 V, VCC = 15 V IIN- Logic “0” input bias current — — 1 VIN = 0 V, VCC = 15 V mA V I CC = 15 V, INA & QCC Quiescent supply current 0.5 1.2 2.4 INB not switching VCCUV+ Vcc supply undervoltage turn on threshold 10.5 11.5 12.6 V VCCUV- Vcc supply undervoltage turn off threshold 9.0 10.0 11.0 VCCUVH Vcc supply undervoltage lockout hysteresis — 1.5 — IO+ Output sourcing short circuit pulsed current — 10 — V A CC = 15 V IO- Output sinking short circuit pulsed current — 10 — PW ≤ 10 µs
4.4 Dynamic electrical characteristics
Unless otherwise noted, these specifications apply for an operating junction temperature range of Ta = 25°C with bias conditions of VCC = 15 V, CL = 4700 pF. Refer to Figure T2 for switching time definition and to Figure T3 for switching time test circuit.
Table 6 Dynamic electrical characteristics Symbol Definition Min Typ Max Units Test Conditions
ton Turn-on propagation delay — — 40 toff Turn-off propagation delay — — 55 ton-en Enable turn-on propagation delay — — 40 ns CBP = 10 µF toff-en Enable turn-off propagation delay — — 55 tr Turn-on rise time — — 33 tf Turn-off fall time — — 33 Datasheet 7 of 21 V 2.0 www.infineon.com/gdLowSide 2019-11-10
