Nexperia. PESD5V0C2BDF. Extremely low clamping low capacitance ESD protection. 11. Package outline
Model Line for this Datasheet
Text Version of Document
Nexperia PESD5V0C2BDF Extremely low clamping low capacitance ESD protection 11. Package outline DFN0603-3; plastic, ultra smal and leadless ful encapsulated package; 3 terminals; 0.225 mm pitch; 0.63 mm x 0.33 mm x 0.25 mm body SOT8013
seating plane y C b D A w C A B (3x) L (3x) e E e B A1 A C y1 C 0 0.5 mm scale Dimensions (mm are the original dimensions) Unit(1) A A1 b D E e L w y y1 max 0.275 0.03 0.27 0.350 0.650 0.12 mm nom 0.225 0.04 0.03 0.05 min 0.225 0.23 0.305 0.605 0.08 Note 1. Device is electrical y symmetrical sot8013_po Outline References European version projection Issue date IEC JEDEC JEITA SOT8013 19-08-06 - - - 19-08-29

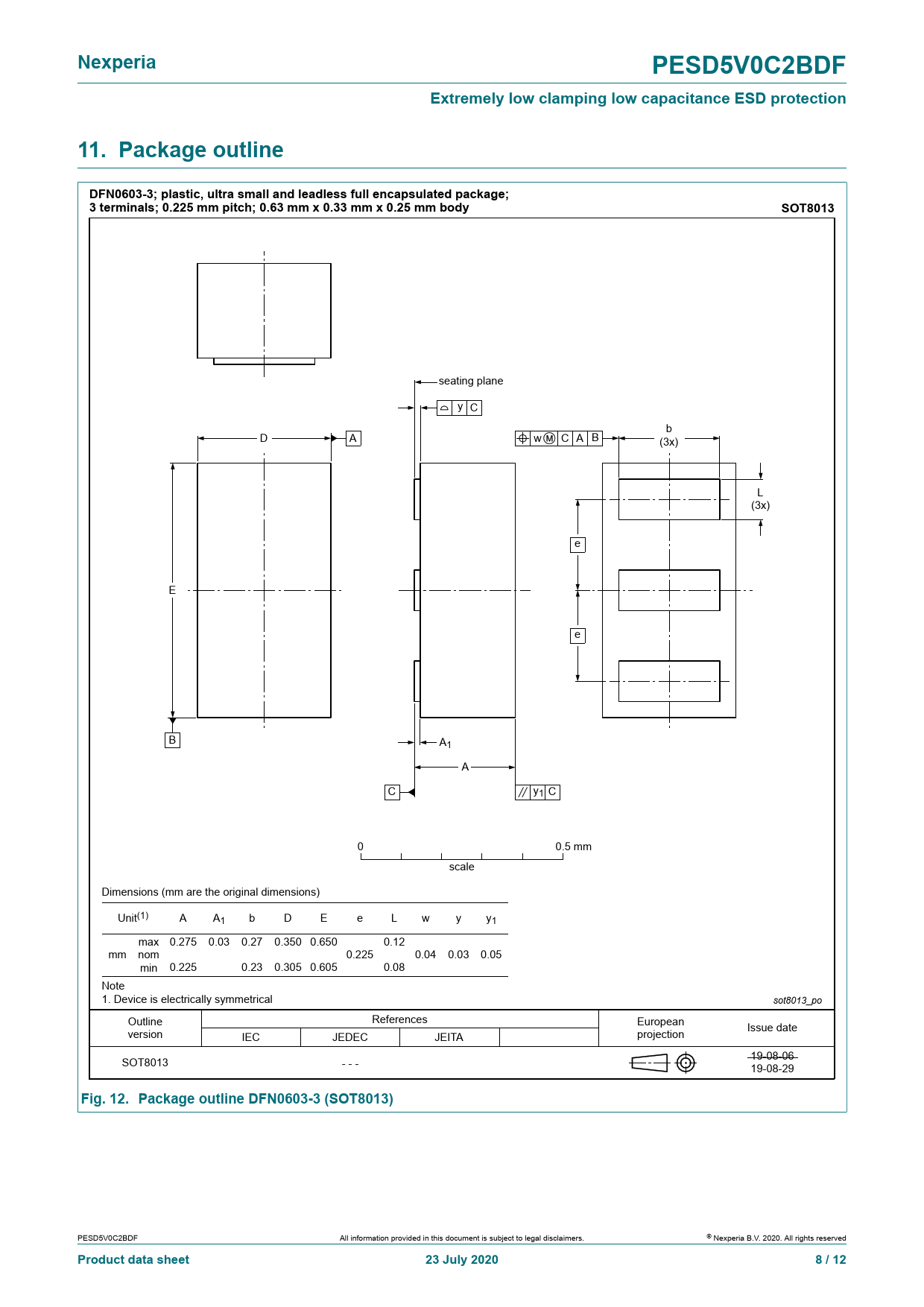

Fig. 12. Package outline DFN0603-3 (SOT8013)
