Datasheet MBR0540T3G, NRVB0540T1G, MBR0540T3G, NRVB0540T3G (ON Semiconductor)

ManufacturerON Semiconductor
DescriptionSchottky Power Rectifier, Surface Mount, 0.5 A, 40 V, SOD-123 Package
Pages / Page6 / 1 — http://onsemi.com. SCHOTTKY BARRIER. 0.5 A, 40 V, SOD-123 Package. …
Revision7
File Format / SizePDF / 262 Kb
Document LanguageEnglish

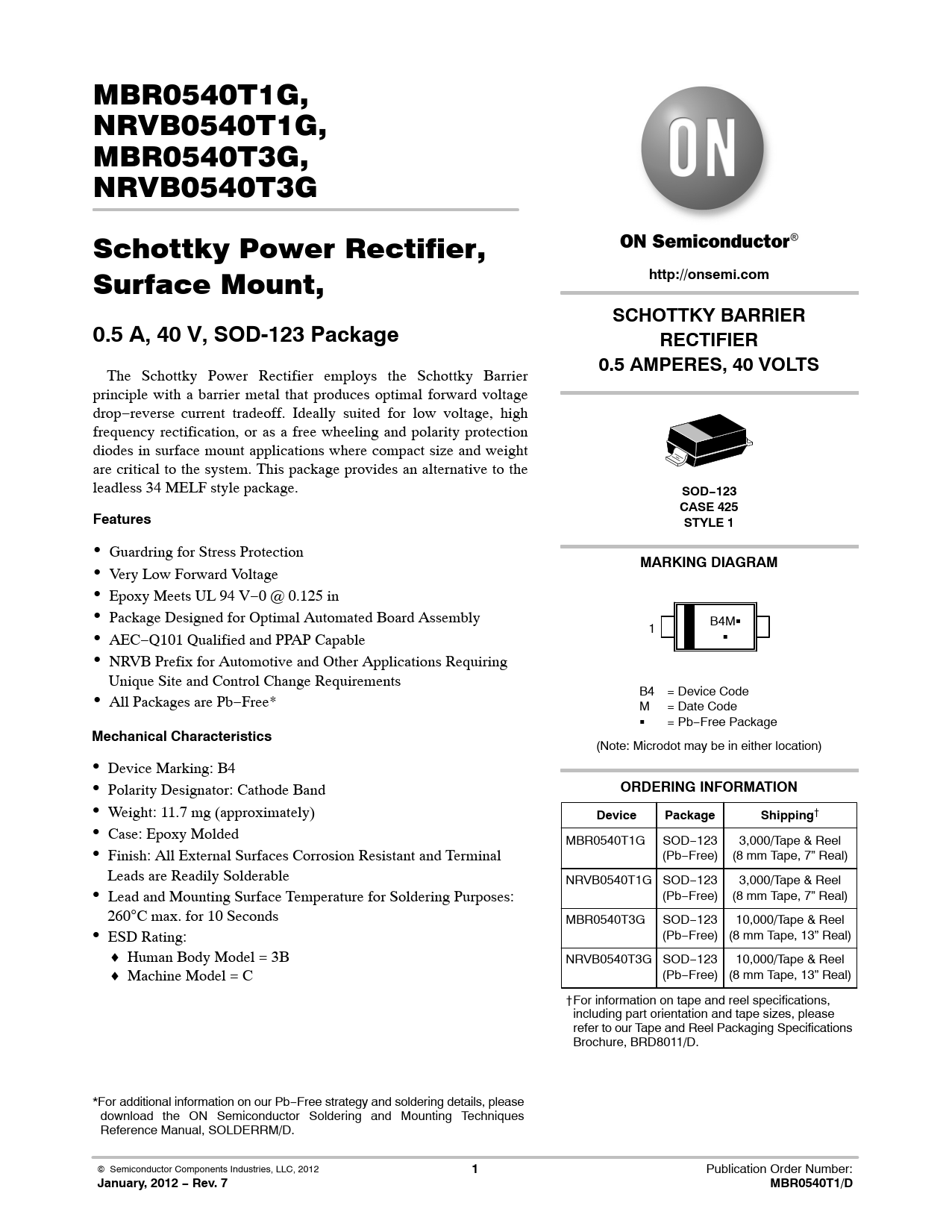

http://onsemi.com. SCHOTTKY BARRIER. 0.5 A, 40 V, SOD-123 Package. RECTIFIER. 0.5 AMPERES, 40 VOLTS. SOD−123. CASE 425. Features

Datasheet MBR0540T3G, NRVB0540T1G, MBR0540T3G, NRVB0540T3G ON Semiconductor, Revision: 7

Model Line for this Datasheet

Text Version of Document

MBR0540T1G, NRVB0540T1G, MBR0540T3G, NRVB0540T3G Schottky Power Rectifier, Surface Mount,
http://onsemi.com SCHOTTKY BARRIER 0.5 A, 40 V, SOD-123 Package RECTIFIER 0.5 AMPERES, 40 VOLTS
The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop−reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as a free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package.
SOD−123 CASE 425 Features STYLE 1
Guardring for Stress Protection
MARKING DIAGRAM
Very Low Forward Voltage Epoxy Meets UL 94 V−0 @ 0.125 in Package Designed for Optimal Automated Board Assembly B4MG 1 AEC−Q101 Qualified and PPAP Capable G NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements B4 = Device Code All Packages are Pb−Free* M = Date Code G = Pb−Free Package
Mechanical Characteristics
(Note: Microdot may be in either location) Device Marking: B4 Polarity Designator: Cathode Band
ORDERING INFORMATION
Weight: 11.7 mg (approximately)
Device Package Shipping
† Case: Epoxy Molded MBR0540T1G SOD−123 3,000/Tape & Reel Finish: All External Surfaces Corrosion Resistant and Terminal (Pb−Free) (8 mm Tape, 7” Real) Leads are Readily Solderable NRVB0540T1G SOD−123 3,000/Tape & Reel Lead and Mounting Surface Temperature for Soldering Purposes: (Pb−Free) (8 mm Tape, 7” Real) 260C max. for 10 Seconds MBR0540T3G SOD−123 10,000/Tape & Reel ESD Rating: (Pb−Free) (8 mm Tape, 13” Real)  Human Body Model = 3B NRVB0540T3G SOD−123 10,000/Tape & Reel  Machine Model = C (Pb−Free) (8 mm Tape, 13” Real) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.  Semiconductor Components Industries, LLC, 2012
1
Publication Order Number:
January, 2012 − Rev. 7 MBR0540T1/D
