Datasheet MBR0540T3G, NRVB0540T1G, MBR0540T3G, NRVB0540T3G (ON Semiconductor) - 5
| Manufacturer | ON Semiconductor |
| Description | Schottky Power Rectifier, Surface Mount, 0.5 A, 40 V, SOD-123 Package |
| Pages / Page | 6 / 5 — PACKAGE DIMENSIONS. SOD−123. SCALE 5:1. MILLIMETERS. INCHES. DIM. MIN. … |
| Revision | 7 |
| File Format / Size | PDF / 262 Kb |
| Document Language | English |
PACKAGE DIMENSIONS. SOD−123. SCALE 5:1. MILLIMETERS. INCHES. DIM. MIN. NOM. MAX. GENERIC. MARKING DIAGRAM*. SOLDERING FOOTPRINT*
Model Line for this Datasheet
Text Version of Document
MECHANICAL CASE OUTLINE

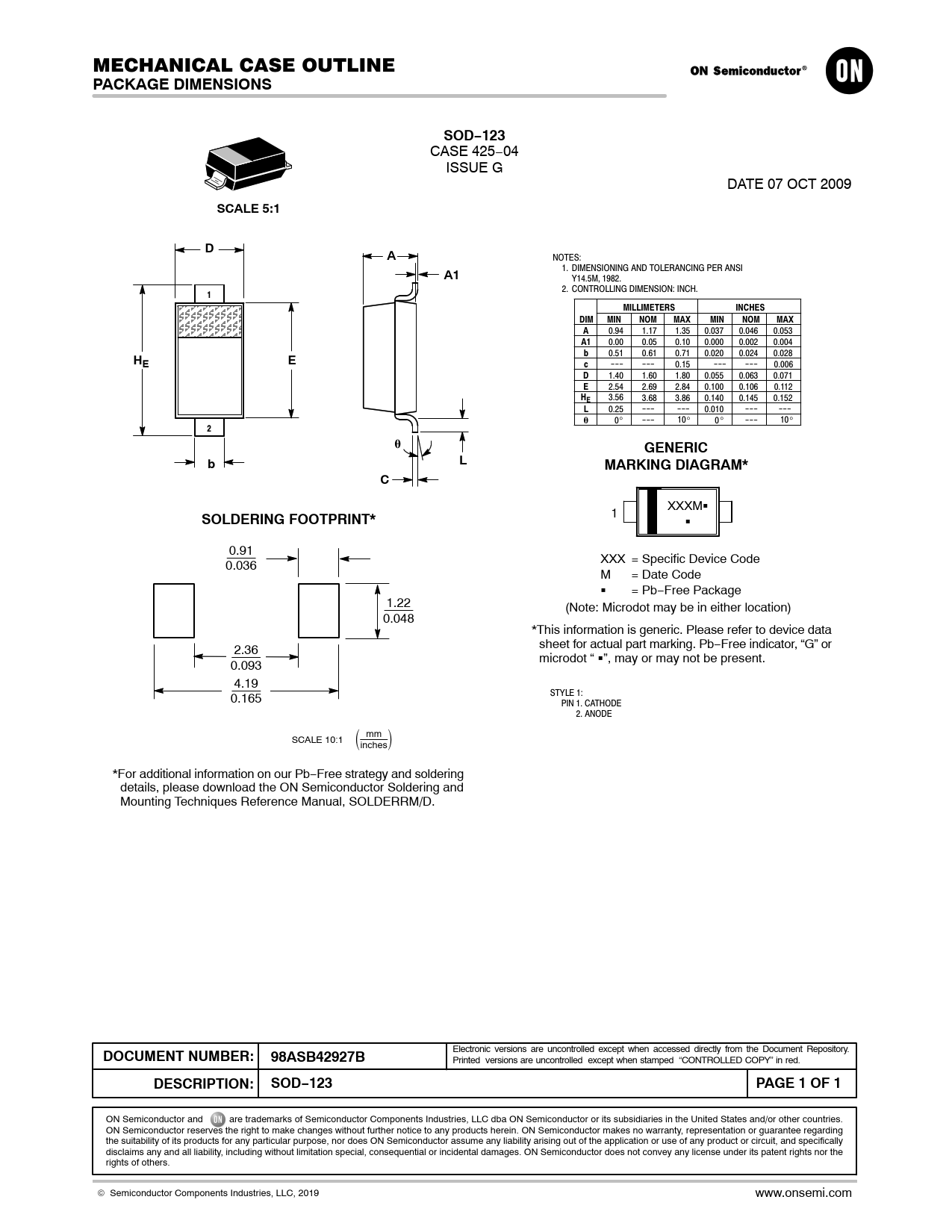

PACKAGE DIMENSIONS SOD−123
CASE 425−04 ISSUE G DATE 07 OCT 2009
SCALE 5:1 D A
NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI
A1
Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH.
1 MILLIMETERS INCHES
ÂÂÂÂ
DIM MIN NOM MAX MIN NOM MAX A
0.94 1.17 1.35 0.037 0.046 0.053 ÂÂÂÂ
A1
0.00 0.05 0.10 0.000 0.002 0.004
b
0.51 0.61 0.71 0.020 0.024 0.028 ÂÂÂÂ
HE E c
--- --- 0.15 --- --- 0.006
D
1.40 1.60 1.80 0.055 0.063 0.071
E
2.54 2.69 2.84 0.100 0.106 0.112
H
3.56
E
3.68 3.86 0.140 0.145 0.152
L
0.25 --- --- 0.010 --- --- --- ° 10 ---
q
0 ° 0° 10°
2 q GENERIC b L MARKING DIAGRAM* C
XXXMG
SOLDERING FOOTPRINT*
1 G 0.91 XXX = Specific Device Code 0.036 M = Date Code ÉÉÉ ÉÉÉ G = Pb−Free Package 1.22 (Note: Microdot may be in either location) ÉÉÉ ÉÉÉ 0.048 *This information is generic. Please refer to device data ÉÉÉ ÉÉÉ sheet for actual part marking. Pb−Free indicator, “G” or 2.36 microdot “ G”, may or may not be present. 0.093 4.19 STYLE 1: 0.165 PIN 1. CATHODE 2. ANODE SCALE 10:1 ǒ mm Ǔ inches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
DOCUMENT NUMBER: 98ASB42927B
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: SOD−123 PAGE 1 OF 1
ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com
