Datasheet AD712 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Precision, Low Cost, High Speed, BiFET Dual Op Amp |
| Pages / Page | 20 / 5 — Data Sheet. AD712. ABSOLUTE MAXIMUM RATINGS. Table 2. THERMAL RESISTANCE. … |
| Revision | I |
| File Format / Size | PDF / 569 Kb |
| Document Language | English |

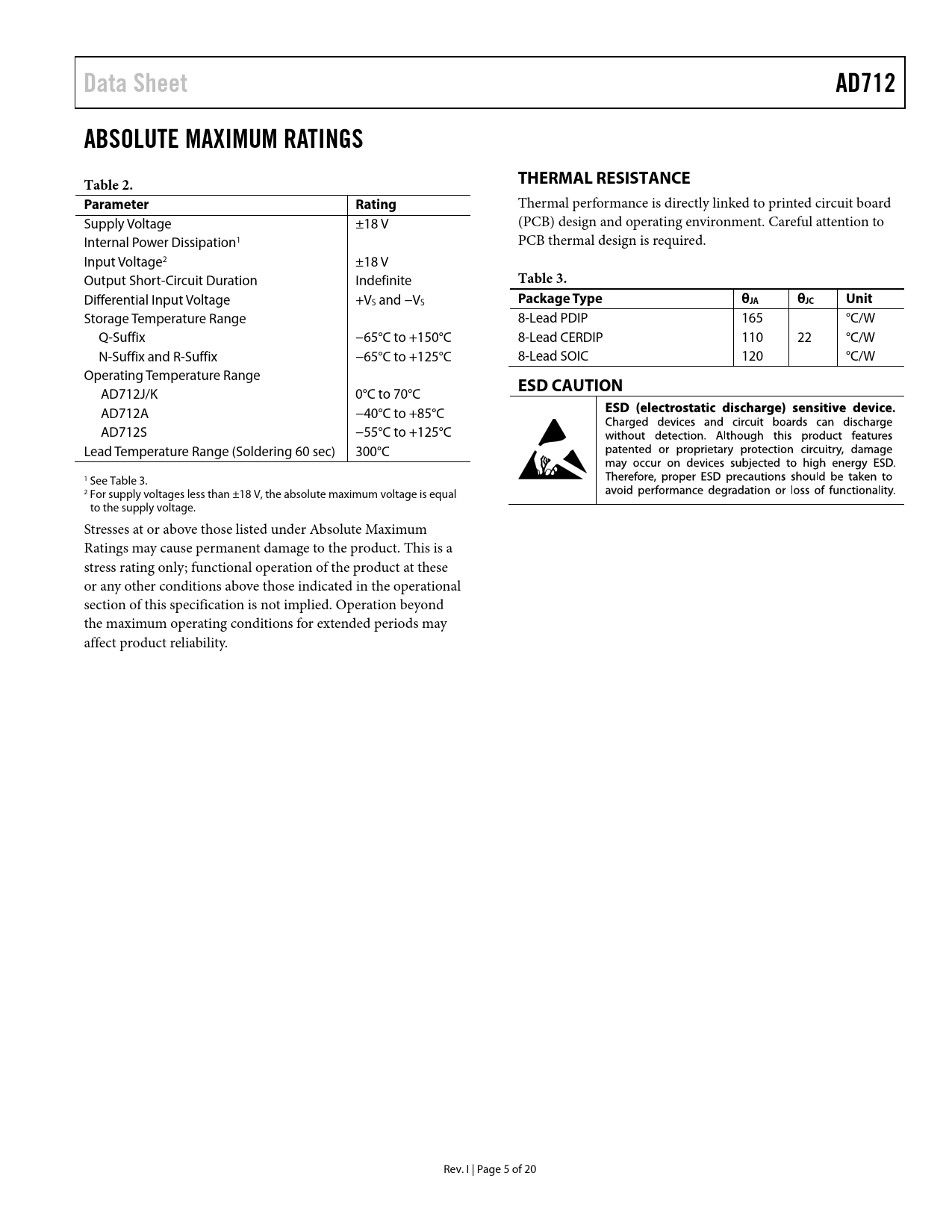

Data Sheet. AD712. ABSOLUTE MAXIMUM RATINGS. Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Package Type. θJA. θJC. Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 5
Data Sheet AD712 ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to printed circuit board Supply Voltage ±18 V (PCB) design and operating environment. Careful attention to Internal Power Dissipation1 PCB thermal design is required. Input Voltage2 ±18 V Output Short-Circuit Duration Indefinite
Table 3.
Differential Input Voltage +VS and −VS
Package Type θJA θJC Unit
Storage Temperature Range 8-Lead PDIP 165 °C/W Q-Suffix −65°C to +150°C 8-Lead CERDIP 110 22 °C/W N-Suffix and R-Suffix −65°C to +125°C 8-Lead SOIC 120 °C/W Operating Temperature Range
ESD CAUTION
AD712J/K 0°C to 70°C AD712A −40°C to +85°C AD712S −55°C to +125°C Lead Temperature Range (Soldering 60 sec) 300°C 1 See Table 3. 2 For supply voltages less than ±18 V, the absolute maximum voltage is equal to the supply voltage. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. I | Page 5 of 20 Document Outline FEATURES CONNECTION DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS SETTLING TIME OPTIMIZING SETTLING TIME OP AMP SETTLING TIME—A MATHEMATICAL MODEL APPLICATIONS INFORMATION GUARDING DAC CONVERTER APPLICATIONS NOISE CHARACTERISTICS DRIVING THE ANALOG INPUT OF AN ADC DRIVING A LARGE CAPACITIVE LOAD FILTERS ACTIVE FILTER APPLICATIONS SECOND-ORDER LOW-PASS FILTER 9-POLE CHEBYCHEV FILTER OUTLINE DIMENSIONS ORDERING GUIDE
