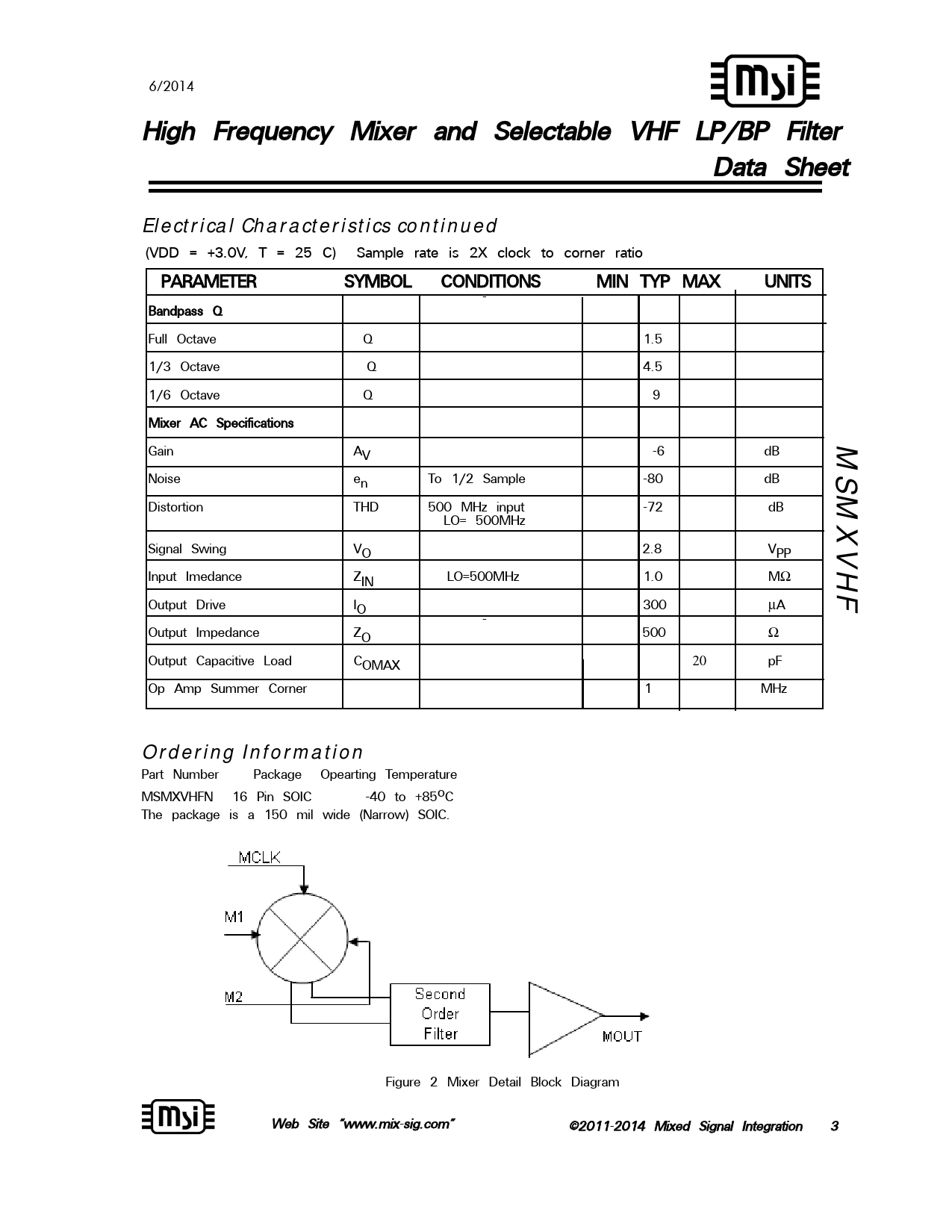

6/2014 High Frequency Mixer and Selectable VHF LP/BP Filter Data Sheet
Electrical Characteristics continued
(VDD = +3.0V, T = 25 C) Sample rate is 2X clock to corner ratio PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS - Bandpass Q Full Octave Q 1.5 1/3 Octave Q 4.5 1/6 Octave Q 9 Mixer AC Specifications
MSMXVHF
Gain AV -6 dB Noise en To 1/2 Sample -80 dB Distortion THD 500 MHz input -72 dB LO= 500MHz Signal Swing VO 2.8 VPP Input Imedance ZIN LO=500MHz 1.0 MΩ Output Drive IO 300 μA - Output Impedance ZO 500 Ω Output Capacitive Load COMAX 20 pF Op Amp Summer Corner 1 MHz
Ordering Information
Part Number Package Opearting Temperature MSMXVHFN 16 Pin SOIC -40 to +85oC The package is a 150 mil wide (Narrow) SOIC. Figure 2 Mixer Detail Block Diagram Web Site “www.mix-ssig.com” ©2011-2 2014 Mixed Signal Integration 3
