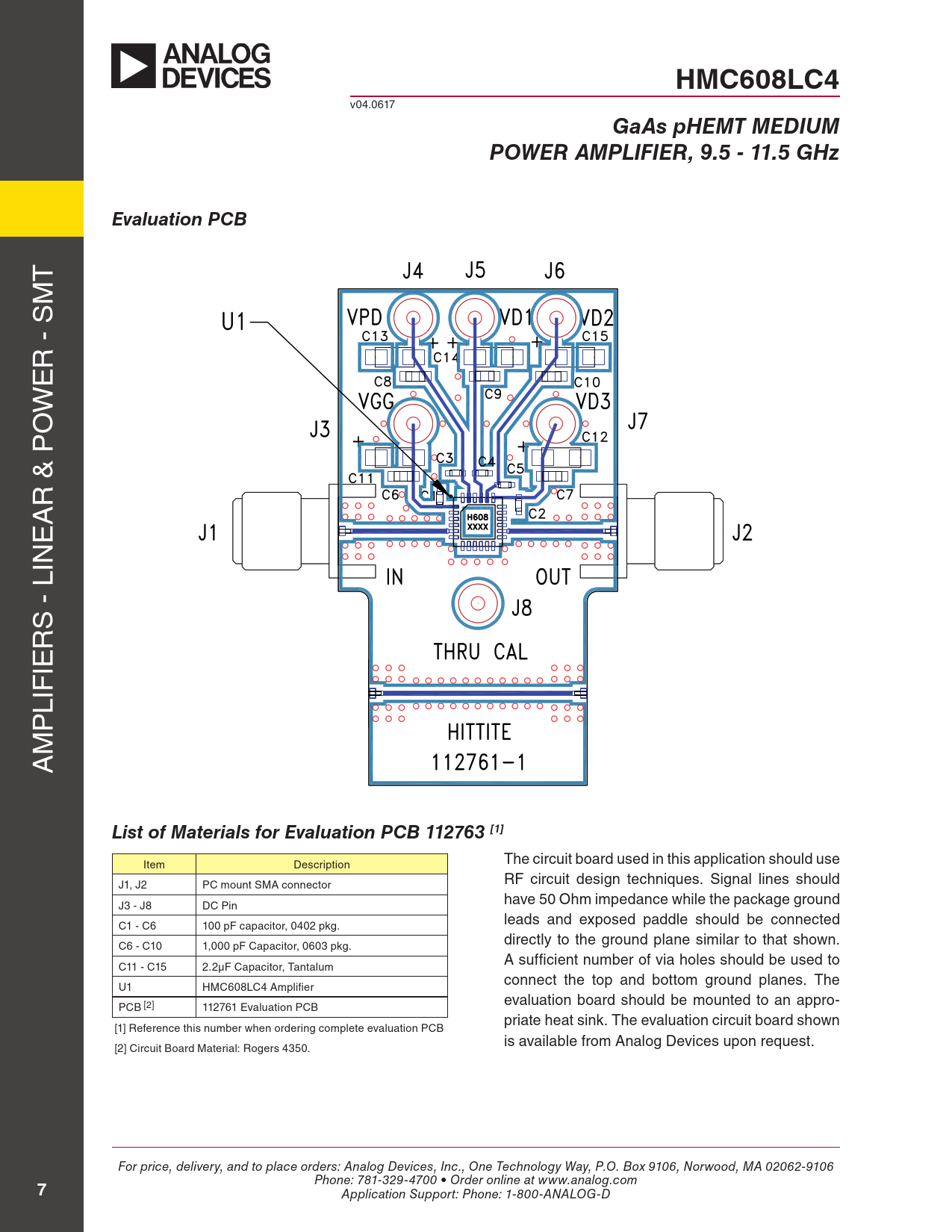

HMC608LC4. GaAs pHEMT MEDIUM. POWER AMPLIFIER, 9.5 - 11.5 GHz. Evaluation PCB. List of Materials for Evaluation PCB 112763 [1]
Model Line for this Datasheet
Text Version of Document
HMC608LC4
v04.0617
GaAs pHEMT MEDIUM POWER AMPLIFIER, 9.5 - 11.5 GHz Evaluation PCB
T M R - S E W O R & P A E IN S - L R IE LIF P M A
List of Materials for Evaluation PCB 112763 [1]
Item Description The circuit board used in this application should use J1, J2 PC mount SMA connector RF circuit design techniques. Signal lines should have 50 Ohm impedance while the package ground J3 - J8 DC Pin leads and exposed paddle should be connected C1 - C6 100 pF capacitor, 0402 pkg. directly to the ground plane similar to that shown. C6 - C10 1,000 pF Capacitor, 0603 pkg. A sufficient number of via holes should be used to C11 - C15 2.2µF Capacitor, Tantalum connect the top and bottom ground planes. The U1 HMC608LC4 Amplifier evaluation board should be mounted to an appro- PCB [2] 112761 Evaluation PCB priate heat sink. The evaluation circuit board shown [1] Reference this number when ordering complete evaluation PCB is available from Analog Devices upon request. [2] Circuit Board Material: Rogers 4350. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
