Datasheet ADCA3990 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | CATV Power Doubler Hybrid |
| Pages / Page | 9 / 5 — Data Sheet. ADCA3990. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. SIDE … |
| File Format / Size | PDF / 232 Kb |
| Document Language | English |

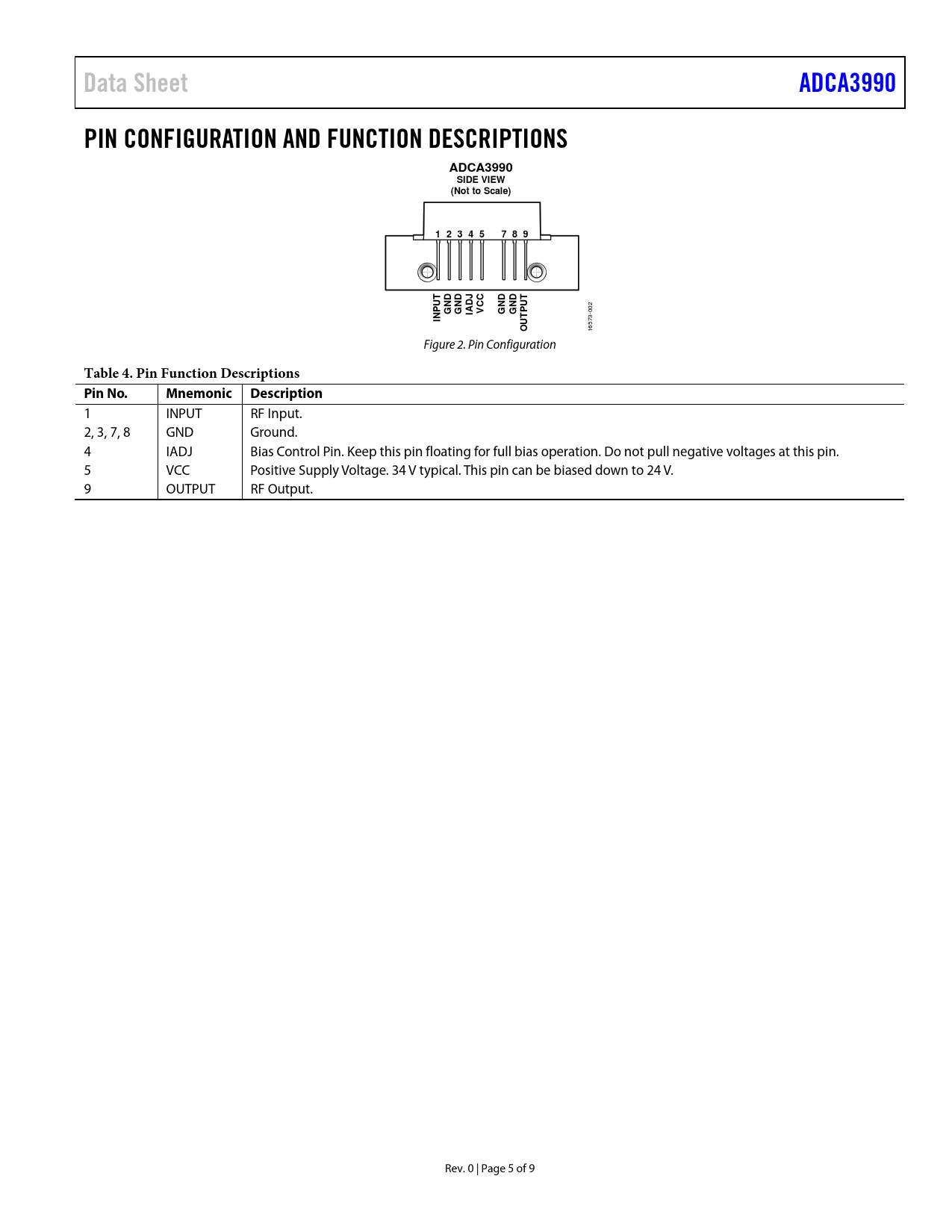

Data Sheet. ADCA3990. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. SIDE VIEW. (Not to Scale). 1 2 3 4 5. 7 8 9. IADJ. INP. UT O
Model Line for this Datasheet
Text Version of Document
Data Sheet ADCA3990 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADCA3990 SIDE VIEW (Not to Scale) 1 2 3 4 5 7 8 9 UT ND ND CC ND ND UT G IADJ G V P G G
002
INP UT O
16573- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 INPUT RF Input. 2, 3, 7, 8 GND Ground. 4 IADJ Bias Control Pin. Keep this pin floating for full bias operation. Do not pull negative voltages at this pin. 5 VCC Positive Supply Voltage. 34 V typical. This pin can be biased down to 24 V. 9 OUTPUT RF Output. Rev. 0 | Page 5 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS GENERAL PERFORMANCE DISTORTION DATA (40 MHz TO 550 MHz) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
