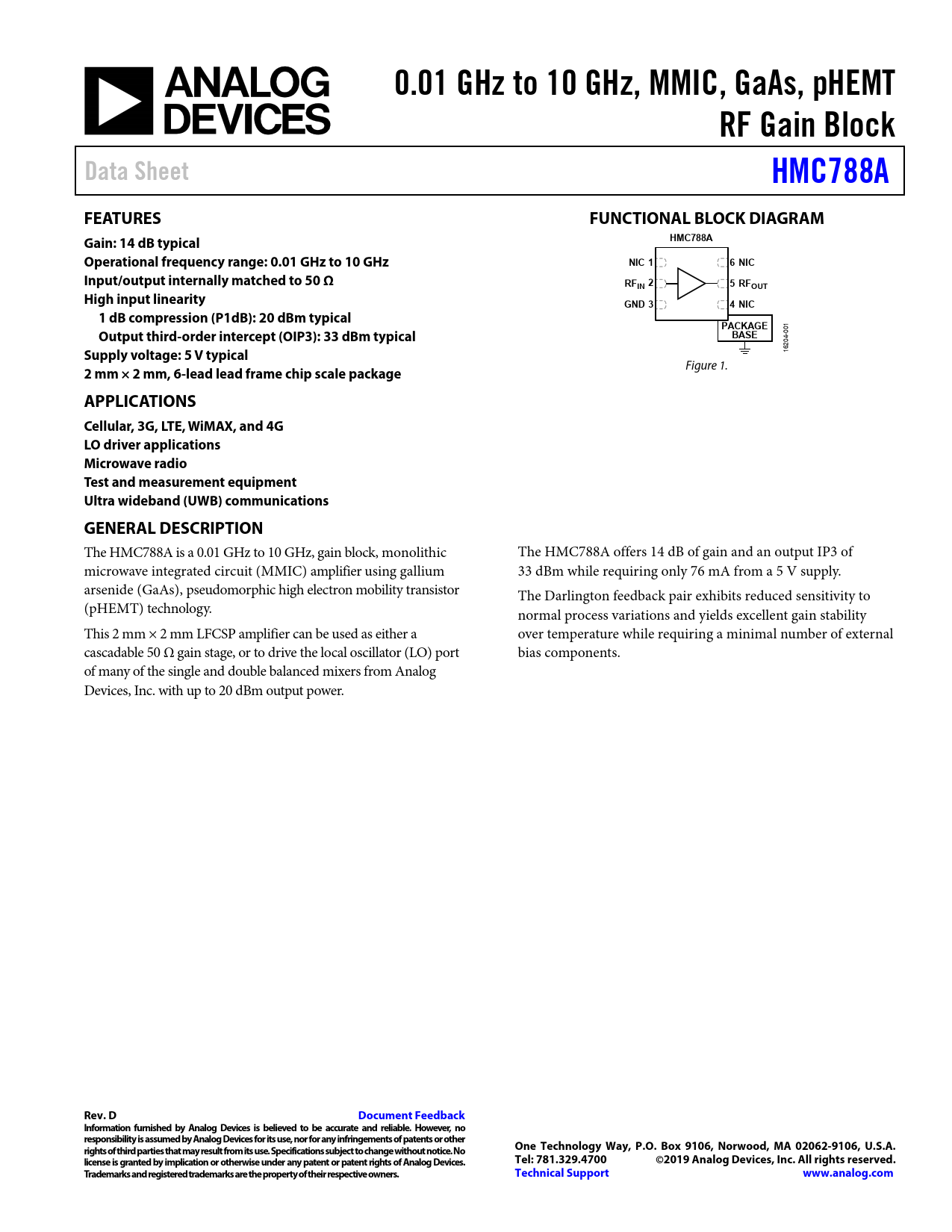

0.01 GHz to 10 GHz, MMIC, GaAs, pHEMT. RF Gain Block. Data Sheet. HMC788A. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Gain: 14 dB typical
Model Line for this Datasheet
Text Version of Document
0.01 GHz to 10 GHz, MMIC, GaAs, pHEMT RF Gain Block Data Sheet HMC788A FEATURES FUNCTIONAL BLOCK DIAGRAM Gain: 14 dB typical HMC788A Operational frequency range: 0.01 GHz to 10 GHz NIC 1 6 NIC Input/output internally matched to 50 Ω RF 2 5 IN RFOUT High input linearity GND 3 4 NIC 1 dB compression (P1dB): 20 dBm typical PACKAGE
001
Output third-order intercept (OIP3): 33 dBm typical BASE
04-
Supply voltage: 5 V typical
162 Figure 1.
2 mm × 2 mm, 6-lead lead frame chip scale package APPLICATIONS Cellular, 3G, LTE, WiMAX, and 4G LO driver applications Microwave radio Test and measurement equipment Ultra wideband (UWB) communications GENERAL DESCRIPTION
The HMC788A is a 0.01 GHz to 10 GHz, gain block, monolithic The HMC788A offers 14 dB of gain and an output IP3 of microwave integrated circuit (MMIC) amplifier using gallium 33 dBm while requiring only 76 mA from a 5 V supply. arsenide (GaAs), pseudomorphic high electron mobility transistor The Darlington feedback pair exhibits reduced sensitivity to (pHEMT) technology. normal process variations and yields excellent gain stability This 2 mm × 2 mm LFCSP amplifier can be used as either a over temperature while requiring a minimal number of external cascadable 50 Ω gain stage, or to drive the local oscillator (LO) port bias components. of many of the single and double balanced mixers from Analog Devices, Inc. with up to 20 dBm output power.
