Datasheet ADL5545 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 30 MHz to 6 GHz RF/IF Gain Block |
| Pages / Page | 18 / 5 — Data Sheet. ADL5545. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| Revision | B |
| File Format / Size | PDF / 373 Kb |
| Document Language | English |

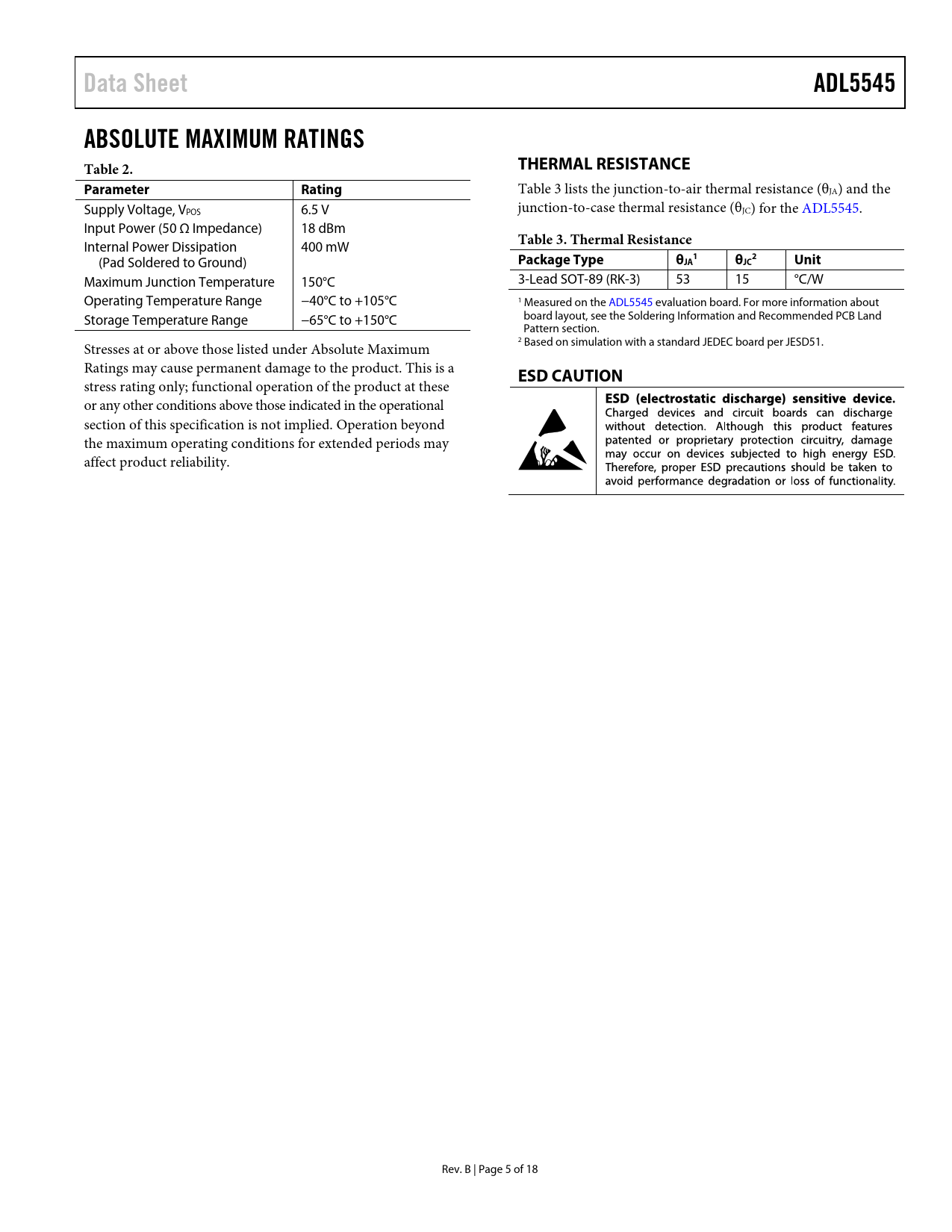

Data Sheet. ADL5545. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 13 link to page 13
Data Sheet ADL5545 ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
Table 3 lists the junction-to-air thermal resistance (θJA) and the Supply Voltage, VPOS 6.5 V junction-to-case thermal resistance (θJC) for the ADL5545. Input Power (50 Ω Impedance) 18 dBm Internal Power Dissipation 400 mW
Table 3. Thermal Resistance
(Pad Soldered to Ground)
Package Type θ 1 2 JA θJC Unit
Maximum Junction Temperature 150°C 3-Lead SOT-89 (RK-3) 53 15 °C/W Operating Temperature Range −40°C to +105°C 1 Measured on the ADL5545 evaluation board. For more information about Storage Temperature Range −65°C to +150°C board layout, see the Soldering Information and Recommended PCB Land Pattern section. 2 Stresses at or above those listed under Absolute Maximum Based on simulation with a standard JEDEC board per JESD51. Ratings may cause permanent damage to the product. This is a
