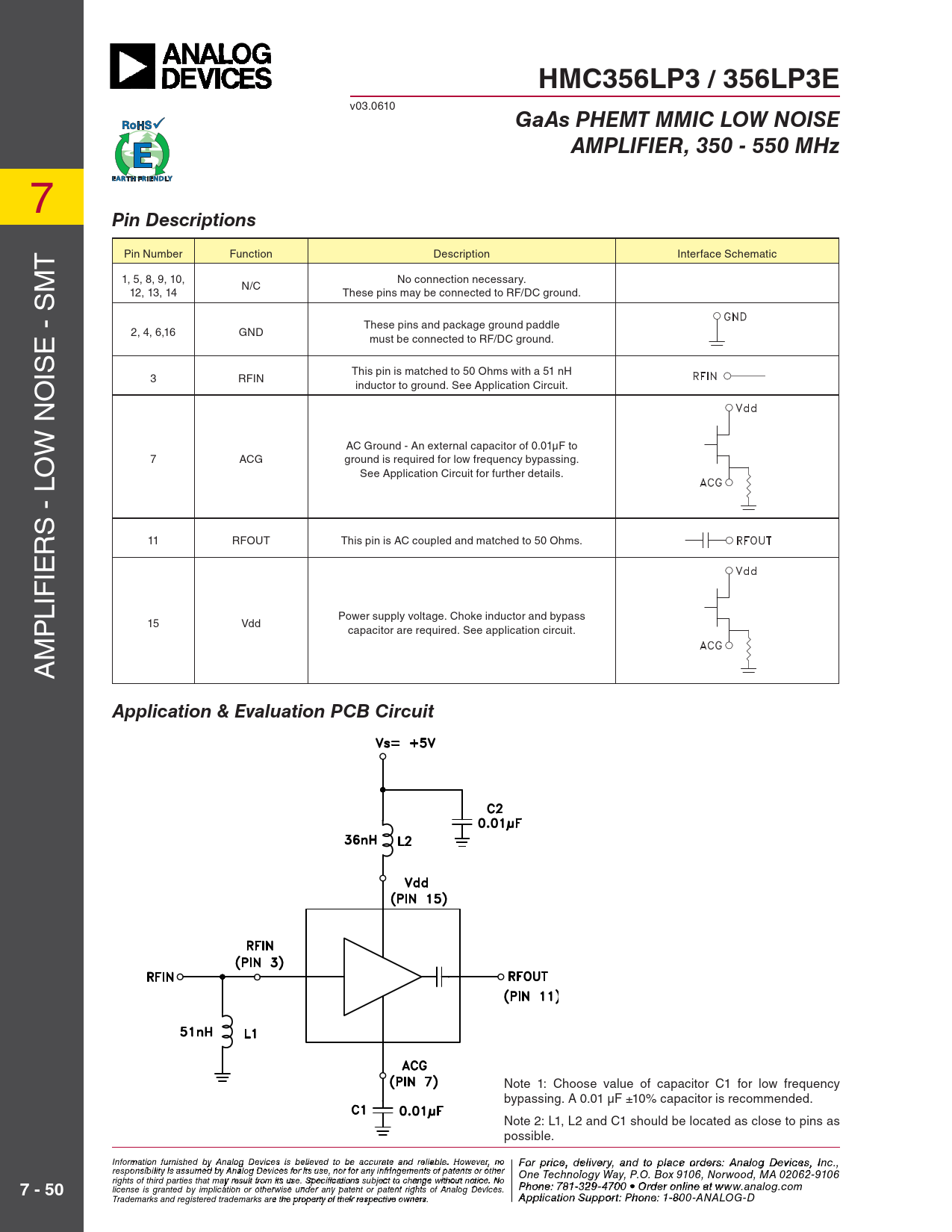

HMC356LP3 / 356LP3E. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 350 - 550 MHz. Pin Descriptions
Model Line for this Datasheet
Text Version of Document
HMC356LP3 / 356LP3E
v03.0610
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 350 - 550 MHz
7
Pin Descriptions
T Pin Number Function Description Interface Schematic 1, 5, 8, 9, 10, No connection necessary. N/C 12, 13, 14 These pins may be connected to RF/DC ground. These pins and package ground paddle 2, 4, 6,16 GND E - SM must be connected to RF/DC ground. IS This pin is matched to 50 Ohms with a 51 nH 3 RFIN inductor to ground. See Application Circuit. W NO AC Ground - An external capacitor of 0.01μF to O 7 ACG ground is required for low frequency bypassing. See Application Circuit for further details. - L S R 11 RFOUT This pin is AC coupled and matched to 50 Ohms. IE IF L Power supply voltage. Choke inductor and bypass P 15 Vdd capacitor are required. See application circuit. M A
Application & Evaluation PCB Circuit
