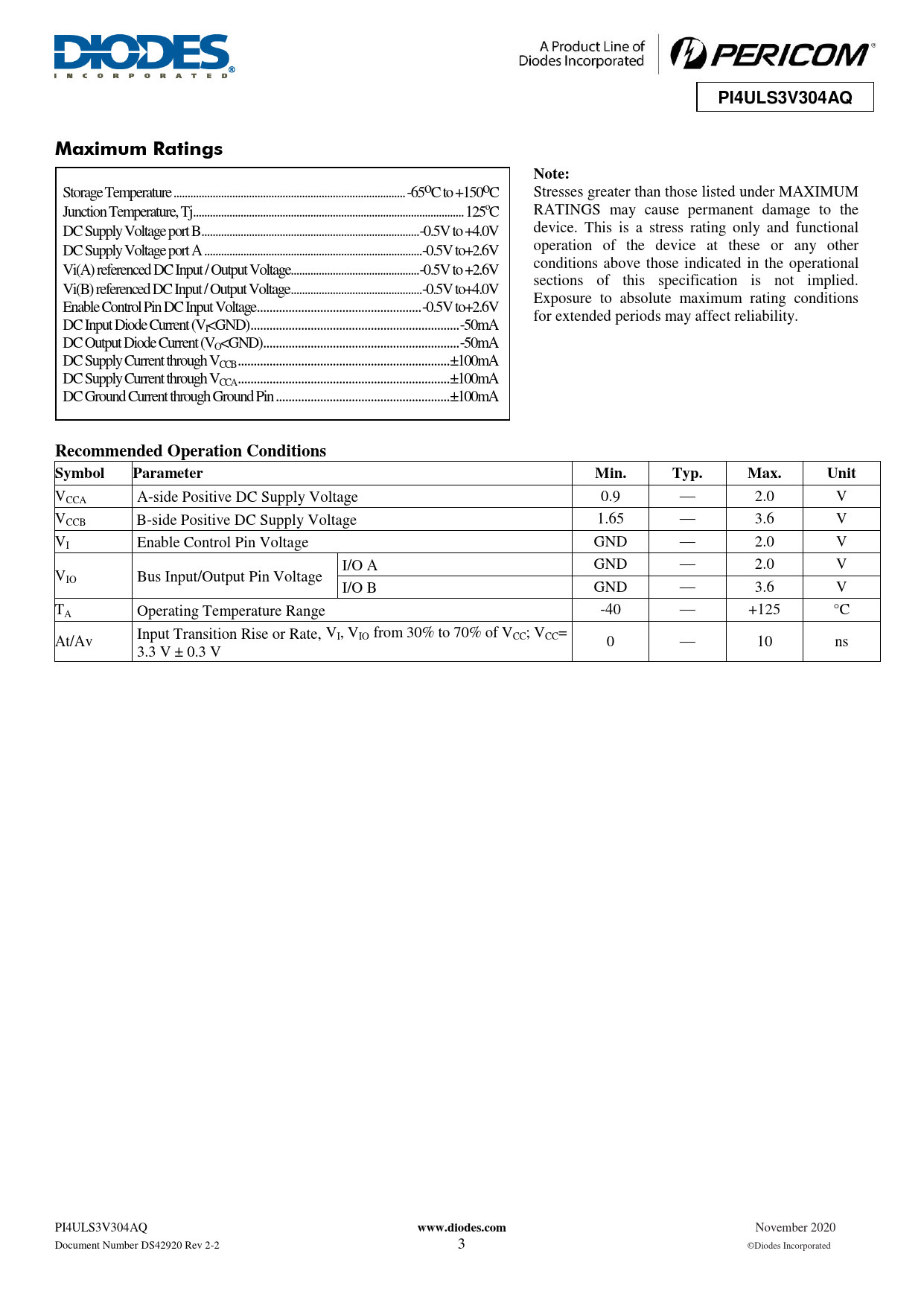

PI4ULS3V304AQ Maximum Ratings Note:
Storage Temperature ... -65oC to +150oC Stresses greater than those listed under MAXIMUM Junction Temperature, Tj ... 125oC RATINGS may cause permanent damage to the DC Supply Voltage port B .. -0.5V to +4.0V device. This is a stress rating only and functional DC Supply Voltage port A .. -0.5V to+2.6V operation of the device at these or any other conditions above those indicated in the operational Vi(A) referenced DC Input / Output Voltage.. -0.5V to +2.6V sections of this specification is not implied. Vi(B) referenced DC Input / Output Voltage ... -0.5V to+4.0V Exposure to absolute maximum rating conditions Enable Control Pin DC Input Voltage .. -0.5V to+2.6V for extended periods may affect reliability. DC Input Diode Current (VI<GND) .. -50mA DC Output Diode Current (VO<GND) .. -50mA DC Supply Current through VCCB ... ±100mA DC Supply Current through VCCA ... ±100mA DC Ground Current through Ground Pin ... ±100mA
Recommended Operation Conditions Symbol Parameter Min. Typ. Max. Unit
VCCA A-side Positive DC Supply Voltage 0.9 — 2.0 V VCCB B-side Positive DC Supply Voltage 1.65 — 3.6 V VI Enable Control Pin Voltage GND — 2.0 V I/O A GND — 2.0 V VIO Bus Input/Output Pin Voltage I/O B GND — 3.6 V TA Operating Temperature Range -40 — +125 °C At/Av Input Transition Rise or Rate, VI, VIO from 30% to 70% of VCC; VCC= 0 — 10 ns 3.3 V ± 0.3 V PI4ULS3V304AQ
