Datasheet ZLLS400 (Diodes) - 5
| Manufacturer | Diodes |
| Description | 40V SURFACE MOUNT SCHOTTKY BARRIER DIODE |
| Pages / Page | 6 / 5 — ZLLS400. Package Outline Dimensions. SOD323. Dim Min Max. All Dimensions … |
| File Format / Size | PDF / 226 Kb |
| Document Language | English |

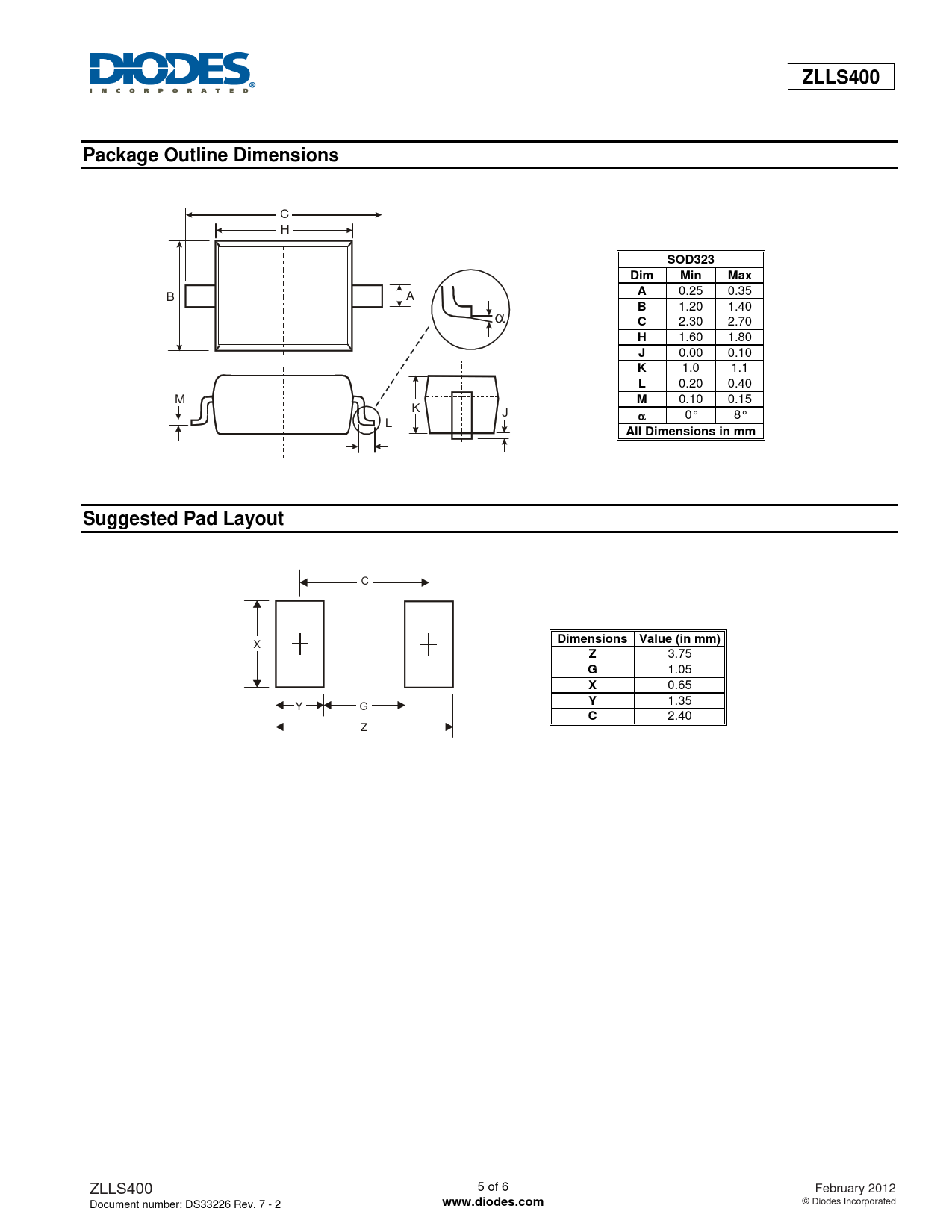

ZLLS400. Package Outline Dimensions. SOD323. Dim Min Max. All Dimensions in mm. Suggested Pad Layout. Dimensions. Value (in mm)
Model Line for this Datasheet
Text Version of Document
ZLLS400 Package Outline Dimensions
C H
SOD323 Dim Min Max A
0.25 0.35 B A
B
1.20 1.40
C
2.30 2.70
H
1.60 1.80
J
0.00 0.10
K
1.0 1.1
L
0.20 0.40 M
M
0.10 0.15 K J α 0° 8° L
All Dimensions in mm Suggested Pad Layout
C
Dimensions Value (in mm)
X
Z
3.75
G
1.05
X
0.65
Y
1.35 Y G
C
2.40 Z ZLLS400 5 of 6 February 2012 Document number: DS33226 Rev. 7 - 2
www.diodes.com
© Diodes Incorporated
