Datasheet T1610, T1635, T1650, BTA16, BTB16 (STMicroelectronics) - 2
| Manufacturer | STMicroelectronics |
| Description | Snubberless, logic level and standard 16 A Triacs |
| Pages / Page | 18 / 2 — T1610, T1635, T1650, BTA16, BTB16. Characteristics. Table 1. Absolute … |
| File Format / Size | PDF / 232 Kb |
| Document Language | English |
T1610, T1635, T1650, BTA16, BTB16. Characteristics. Table 1. Absolute maximum ratings. Symbol. Parameters. Value. Unit
Model Line for this Datasheet
- BTA16-600B BTA16-600BRG BTA16-600BWRG BTA16-600CRG BTA16-600CWRG BTA16-600SWRG BTA16-800BRG BTA16-800BWRG BTA16-800CWRG BTA16-800SWRG
Text Version of Document
link to page 2 link to page 2 link to page 2 link to page 3 link to page 3

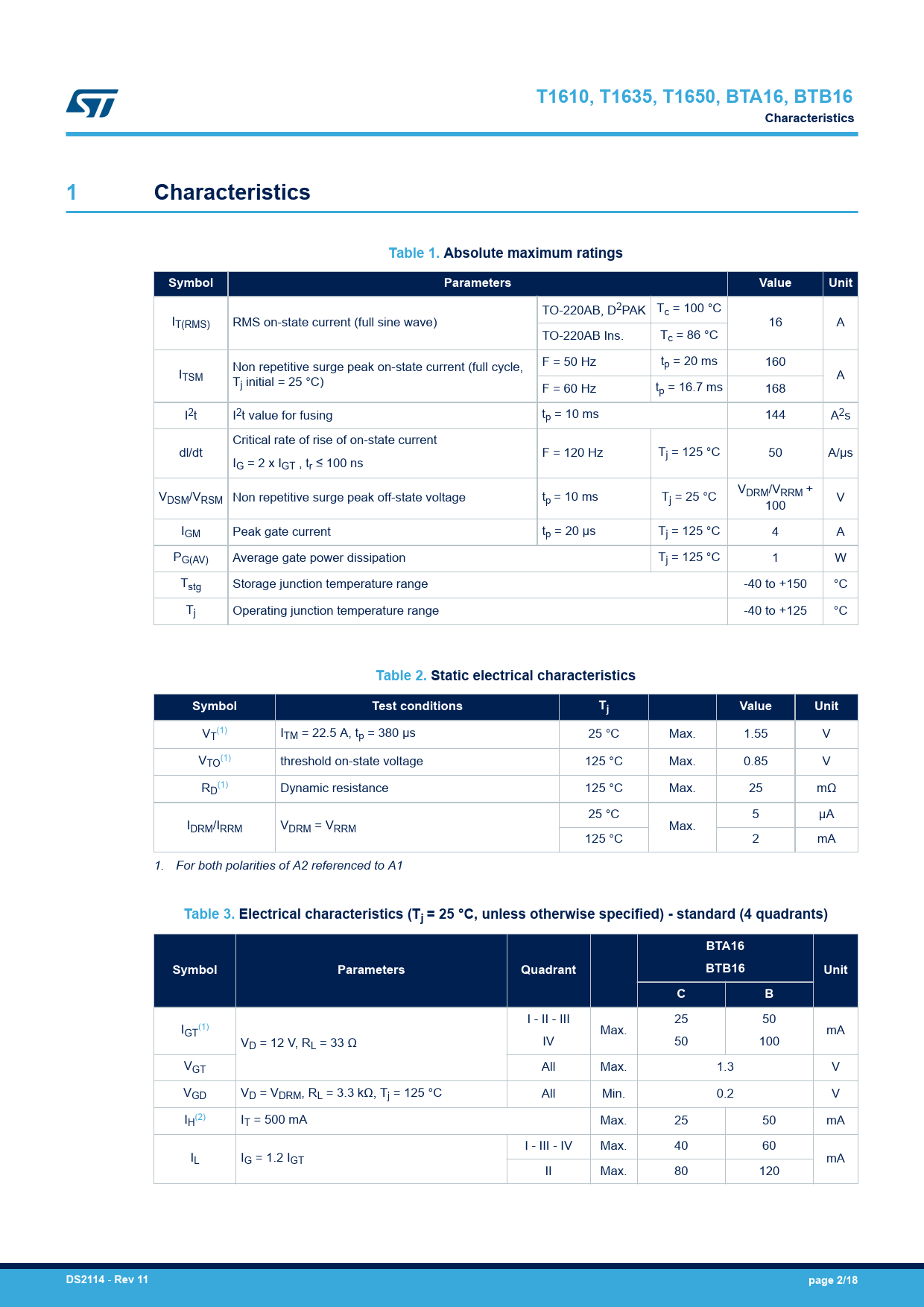

T1610, T1635, T1650, BTA16, BTB16 Characteristics 1 Characteristics Table 1. Absolute maximum ratings Symbol Parameters Value Unit
TO-220AB, D2PAK Tc = 100 °C IT(RMS) RMS on-state current (full sine wave) 16 A TO-220AB Ins. Tc = 86 °C Non repetitive surge peak on-state current (full cycle, F = 50 Hz tp = 20 ms 160 ITSM T A j initial = 25 °C) F = 60 Hz tp = 16.7 ms 168 I2t I2t value for fusing tp = 10 ms 144 A2s Critical rate of rise of on-state current dl/dt F = 120 Hz Tj = 125 °C 50 A/µs IG = 2 x IGT , tr ≤ 100 ns V V DRM/VRRM + DSM/VRSM Non repetitive surge peak off-state voltage tp = 10 ms Tj = 25 °C V 100 IGM Peak gate current tp = 20 µs Tj = 125 °C 4 A PG(AV) Average gate power dissipation Tj = 125 °C 1 W Tstg Storage junction temperature range -40 to +150 °C Tj Operating junction temperature range -40 to +125 °C
Table 2. Static electrical characteristics Symbol Test conditions Tj Value Unit
V (1) T ITM = 22.5 A, tp = 380 µs 25 °C Max. 1.55 V V (1) TO threshold on-state voltage 125 °C Max. 0.85 V R (1) D Dynamic resistance 125 °C Max. 25 mΩ 25 °C 5 µA IDRM/IRRM VDRM = VRRM Max. 125 °C 2 mA 1. For both polarities of A2 referenced to A1
Table 3. Electrical characteristics (Tj = 25 °C, unless otherwise specified) - standard (4 quadrants) BTA16 Symbol Parameters Quadrant BTB16 Unit C B
I - II - III 25 50 I (1) GT Max. mA VD = 12 V, RL = 33 Ω IV 50 100 VGT All Max. 1.3 V VGD VD = VDRM, RL = 3.3 kΩ, Tj = 125 °C All Min. 0.2 V I (2) H IT = 500 mA Max. 25 50 mA I - III - IV Max. 40 60 IL IG = 1.2 IGT mA II Max. 80 120
