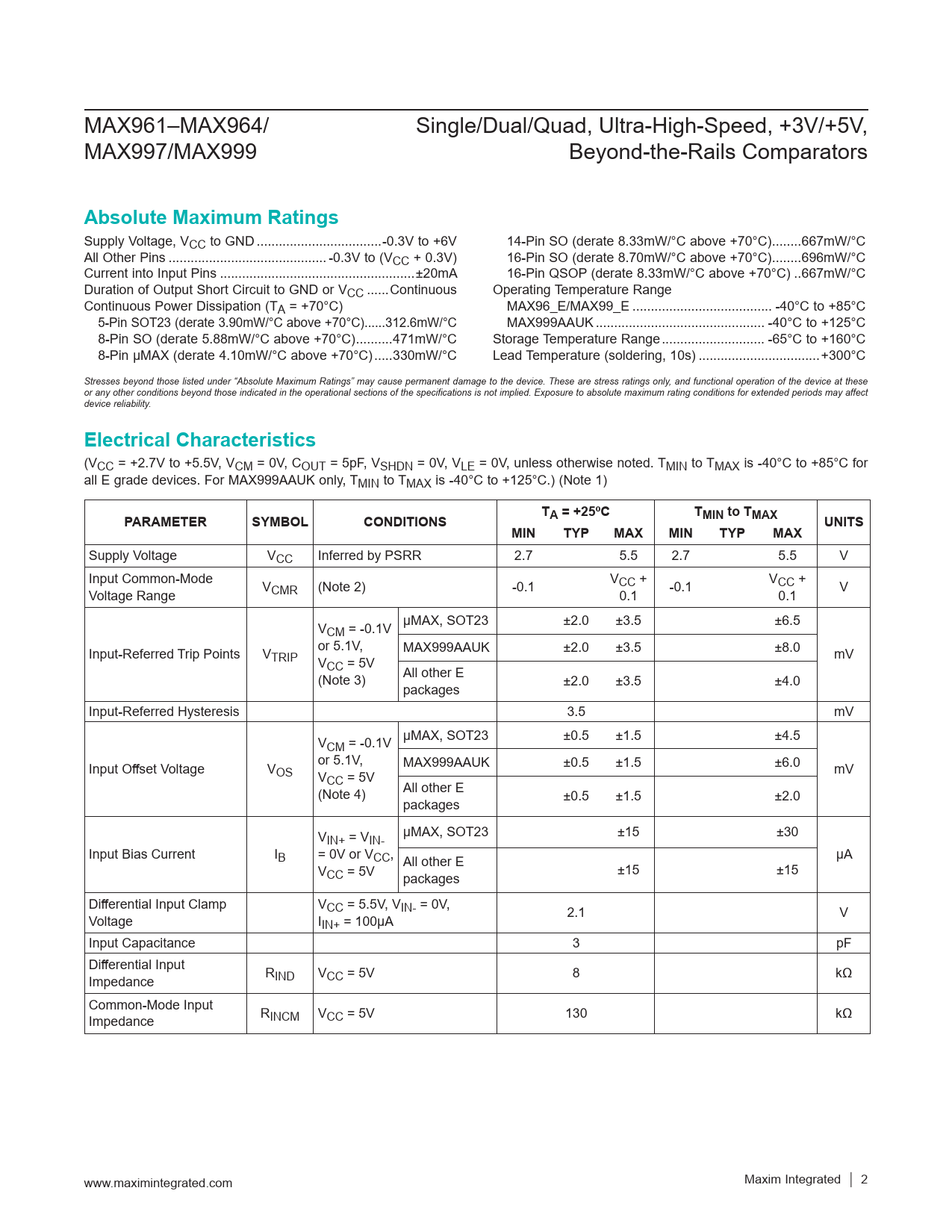

MAX961–MAX964/ Single/Dual/Quad, Ultra-High-Speed, +3V/+5V, MAX997/MAX999 Beyond-the-Rails Comparators
Absolute Maximum Ratings
Supply Voltage, VCC to GND ..-0.3V to +6V 14-Pin SO (derate 8.33mW/°C above +70°C) ..667mW/°C All Other Pins ... -0.3V to (VCC + 0.3V) 16-Pin SO (derate 8.70mW/°C above +70°C) ..696mW/°C Current into Input Pins ...±20mA 16-Pin QSOP (derate 8.33mW/°C above +70°C) ..667mW/°C Duration of Output Short Circuit to GND or VCC ..Continuous Operating Temperature Range Continuous Power Dissipation (TA = +70°C) MAX96_E/MAX99_E .. -40°C to +85°C 5-Pin SOT23 (derate 3.90mW/°C above +70°C) ..312.6mW/°C MAX999AAUK .. -40°C to +125°C 8-Pin SO (derate 5.88mW/°C above +70°C) ..471mW/°C Storage Temperature Range .. -65°C to +160°C 8-Pin μMAX (derate 4.10mW/°C above +70°C) ...330mW/°C Lead Temperature (soldering, 10s) ...+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics
(VCC = +2.7V to +5.5V, VCM = 0V, COUT = 5pF, VSHDN = 0V, VLE = 0V, unless otherwise noted. TMIN to TMAX is -40°C to +85°C for all E grade devices. For MAX999AAUK only, TMIN to TMAX is -40°C to +125°C.) (Note 1)
T PARAMETER SYMBOL CONDITIONS A = +25ºC TMIN to TMAX UNITS MIN TYP MAX MIN TYP MAX
Supply Voltage VCC Inferred by PSRR 2.7 5.5 2.7 5.5 V Input Common-Mode Voltage Range VCMR (Note 2) -0.1 VCC + 0.1 -0.1 VCC + 0.1 V V µMAX, SOT23 ±2.0 ±3.5 ±6.5 CM = -0.1V Input-Referred Trip Points V or 5.1V, MAX999AAUK ±2.0 ±3.5 ±8.0 TRIP V mV CC = 5V (Note 3) All other E packages ±2.0 ±3.5 ±4.0 Input-Referred Hysteresis 3.5 mV V µMAX, SOT23 ±0.5 ±1.5 ±4.5 CM = -0.1V Input Offset Voltage V or 5.1V, MAX999AAUK ±0.5 ±1.5 ±6.0 OS V mV CC = 5V (Note 4) All other E packages ±0.5 ±1.5 ±2.0 V µMAX, SOT23 ±15 ±30 IN+ = VIN- Input Bias Current IB = 0V or VCC, µA All other E VCC = 5V packages ±15 ±15 Differential Input Clamp VCC = 5.5V, VIN- = 0V, Voltage IIN+ = 100µA 2.1 V Input Capacitance 3 pF Differential Input Impedance RIND VCC = 5V 8 kΩ Common-Mode Input Impedance RINCM VCC = 5V 130 kΩ www.maximintegrated.com Maxim Integrated │
