Datasheet CBRDFSH2-40, CBRDFSH2-60, CBRDFSH2-100 (Central Semiconductor) - 2
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT 2.0 AMP SILICON SCHOTTKY BRIDGE RECTIFIERS |
| Pages / Page | 6 / 2 — CBRDFSH2-40. CBRDFSH2-60. CBRDFSH2-100. SURFACE MOUNT. 2.0 AMP SILICON. … |
| File Format / Size | PDF / 820 Kb |
| Document Language | English |
CBRDFSH2-40. CBRDFSH2-60. CBRDFSH2-100. SURFACE MOUNT. 2.0 AMP SILICON. SCHOTTKY BRIDGE RECTIFIERS
Model Line for this Datasheet
Text Version of Document

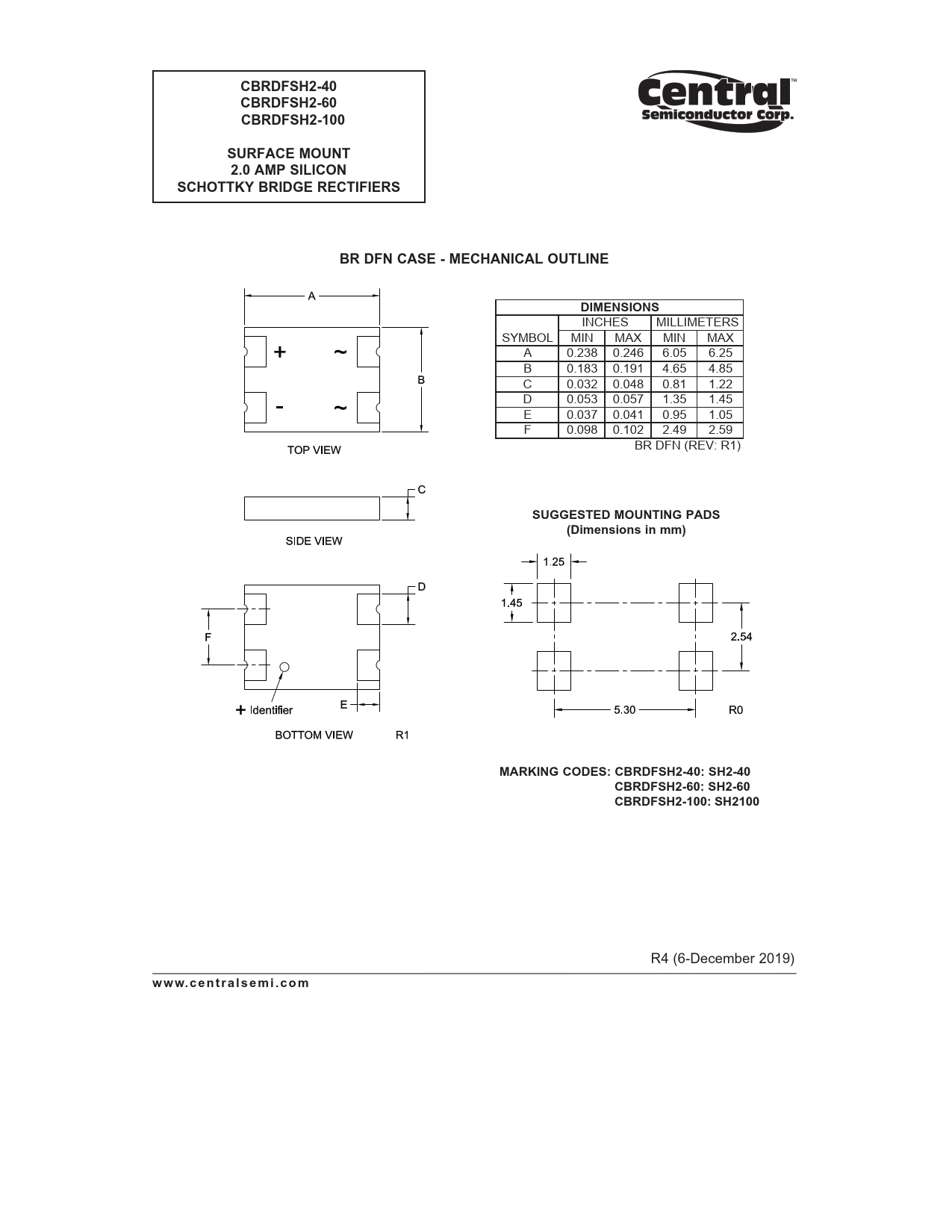

CBRDFSH2-40 CBRDFSH2-60 CBRDFSH2-100 SURFACE MOUNT 2.0 AMP SILICON SCHOTTKY BRIDGE RECTIFIERS BR DFN CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.238 0.246 6.05 6.25 B 0.183 0.191 4.65 4.85 C 0.032 0.048 0.81 1.22 D 0.053 0.057 1.35 1.45 E 0.037 0.041 0.95 1.05 F 0.098 0.102 2.49 2.59 BR DFN (REV: R1)
SUGGESTED MOUNTING PADS (Dimensions in mm) MARKING CODES: CBRDFSH2-40: SH2-40 CBRDFSH2-60: SH2-60 CBRDFSH2-100: SH2100
R4 (6-December 2019)
www.centralsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.238 0.246 6.05 6.25 B 0.183 0.191 4.65 4.85 C 0.032 0.048 0.81 1.22 D 0.053 0.057 1.35 1.45 E 0.037 0.041 0.95 1.05 F 0.098 0.102 2.49 2.59 BR DFN (REV: R1)
SUGGESTED MOUNTING PADS (Dimensions in mm) MARKING CODES: CBRDFSH2-40: SH2-40 CBRDFSH2-60: SH2-60 CBRDFSH2-100: SH2100
