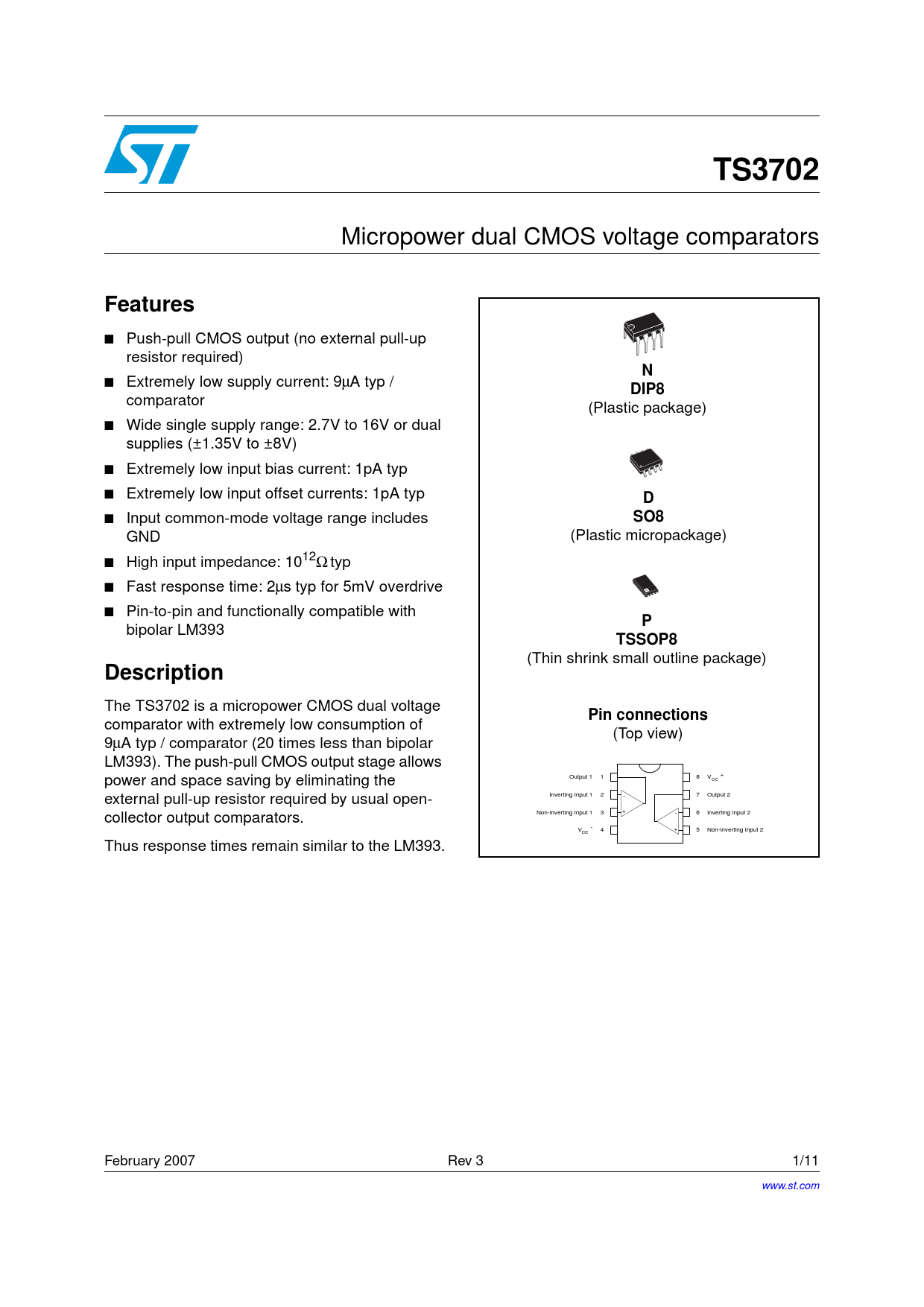

TS3702
Micropower dual CMOS voltage comparators
Features
■ Push-pull CMOS output (no external pull-up resistor required)
N
■ Extremely low supply current: 9μA typ /
DIP8
comparator (Plastic package) ■ Wide single supply range: 2.7V to 16V or dual supplies (±1.35V to ±8V) ■ Extremely low input bias current: 1pA typ ■ Extremely low input offset currents: 1pA typ
D
■ Input common-mode voltage range includes
SO8
GND (Plastic micropackage) ■ High input impedance: 1012Ω typ ■ Fast response time: 2μs typ for 5mV overdrive ■ Pin-to-pin and functionally compatible with
P
bipolar LM393
TSSOP8
(Thin shrink small outline package)
Description
The TS3702 is a micropower CMOS dual voltage
Pin connections
comparator with extremely low consumption of (Top view) 9μA typ / comparator (20 times less than bipolar LM393). The push-pull CMOS output stage allows power and space saving by eliminating the Output 1 1 8 + VCC external pull-up resistor required by usual open- Inverting Input 1 2 - 7 Output 2 + collector output comparators. Non-inverting Input 1 3 - 6 Inverting Input 2 V - 4 + 5 Non-inverting Input 2 CC Thus response times remain similar to the LM393. February 2007 Rev 3 1/11 www.st.com 11 Document Outline 1 Schematic diagram Figure 1. Schematic diagram (for 1/2 TS3702) 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Table 2. Operating conditions 3 Electrical characteristics Table 3. VCC+ = 3V, Vcc- = 0V, Tamb = 25˚C (unless otherwise specified) Table 4. VCC+ = 5V, Vcc- = 0V, Tamb = 25˚C (unless otherwise specified) 4 Package information 4.1 DIP8 package mechanical data 4.2 SO8 package mechanical data 4.3 TSSOP8 package mechanical data 5 Ordering information Table 5. Order codes 6 Revision history
