Datasheet ADG5408-EP, ADG5409-EP (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | High Voltage Latch-Up Proof, 4-/8-Channel Multiplexers |
| Pages / Page | 18 / 8 — ADG5408-EP/ADG5409-EP. Enhanced Product. CONTINUOUS CURRENT PER CHANNEL, … |
| File Format / Size | PDF / 340 Kb |
| Document Language | English |

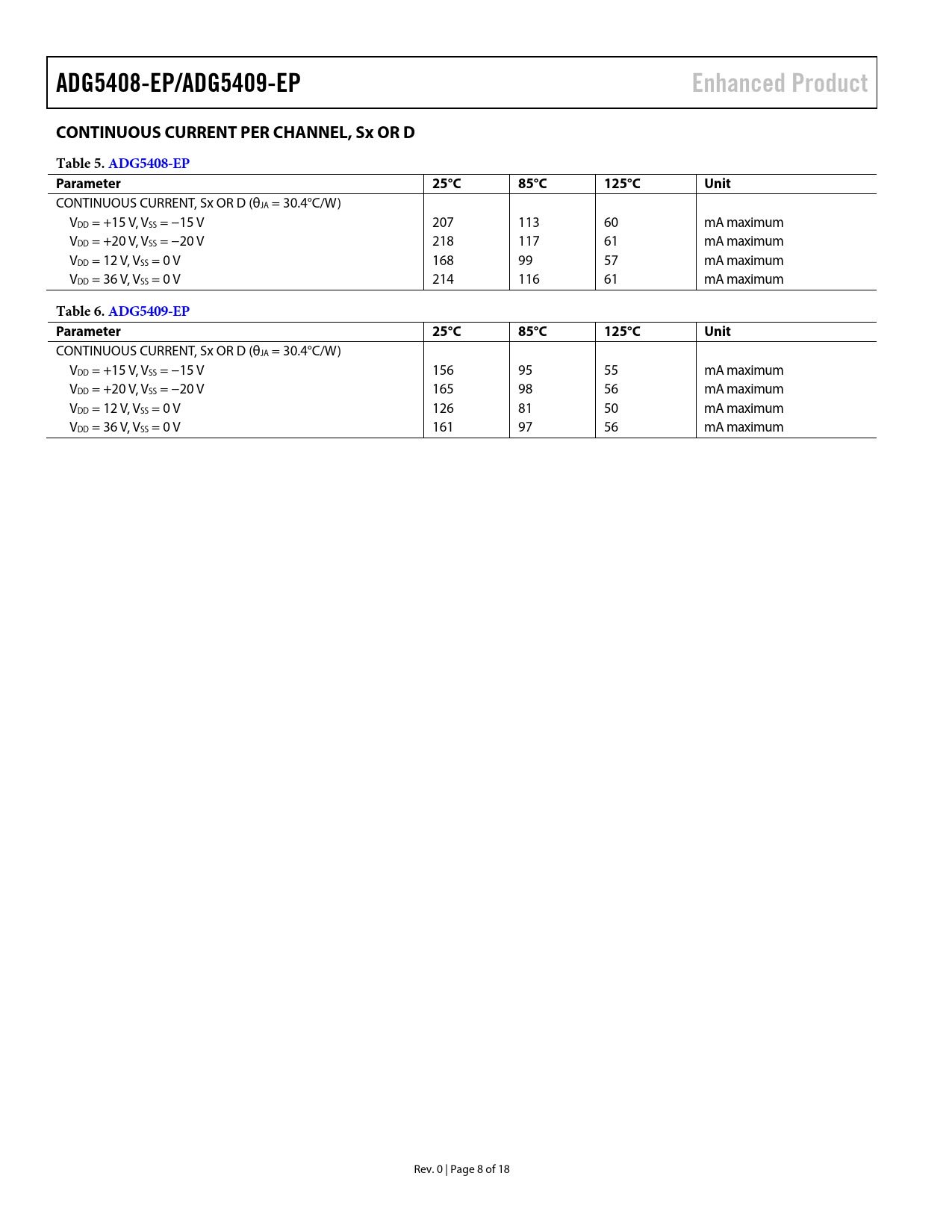

ADG5408-EP/ADG5409-EP. Enhanced Product. CONTINUOUS CURRENT PER CHANNEL, Sx OR D. Table 5. ADG5408-EP. Parameter 25°C. 85°C. 125°C
Model Line for this Datasheet
Text Version of Document
ADG5408-EP/ADG5409-EP Enhanced Product CONTINUOUS CURRENT PER CHANNEL, Sx OR D Table 5. ADG5408-EP Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR D (θJA = 30.4°C/W)
VDD = +15 V, VSS = −15 V 207 113 60 mA maximum VDD = +20 V, VSS = −20 V 218 117 61 mA maximum VDD = 12 V, VSS = 0 V 168 99 57 mA maximum VDD = 36 V, VSS = 0 V 214 116 61 mA maximum
Table 6. ADG5409-EP Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR D (θJA = 30.4°C/W)
VDD = +15 V, VSS = −15 V 156 95 55 mA maximum VDD = +20 V, VSS = −20 V 165 98 56 mA maximum VDD = 12 V, VSS = 0 V 126 81 50 mA maximum VDD = 36 V, VSS = 0 V 161 97 56 mA maximum Rev. 0 | Page 8 of 18 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
