Datasheet ADG1408, ADG1409 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 4 Ω RON, 4-/8-Channel, ±15 V/+12 V/±5 V iCMOS Multiplexers |
| Pages / Page | 19 / 4 — ADG1408/ADG1409. Data Sheet. −40°C to. Parameter +25°C. +85°C. +125°C1 … |
| Revision | D |
| File Format / Size | PDF / 373 Kb |
| Document Language | English |

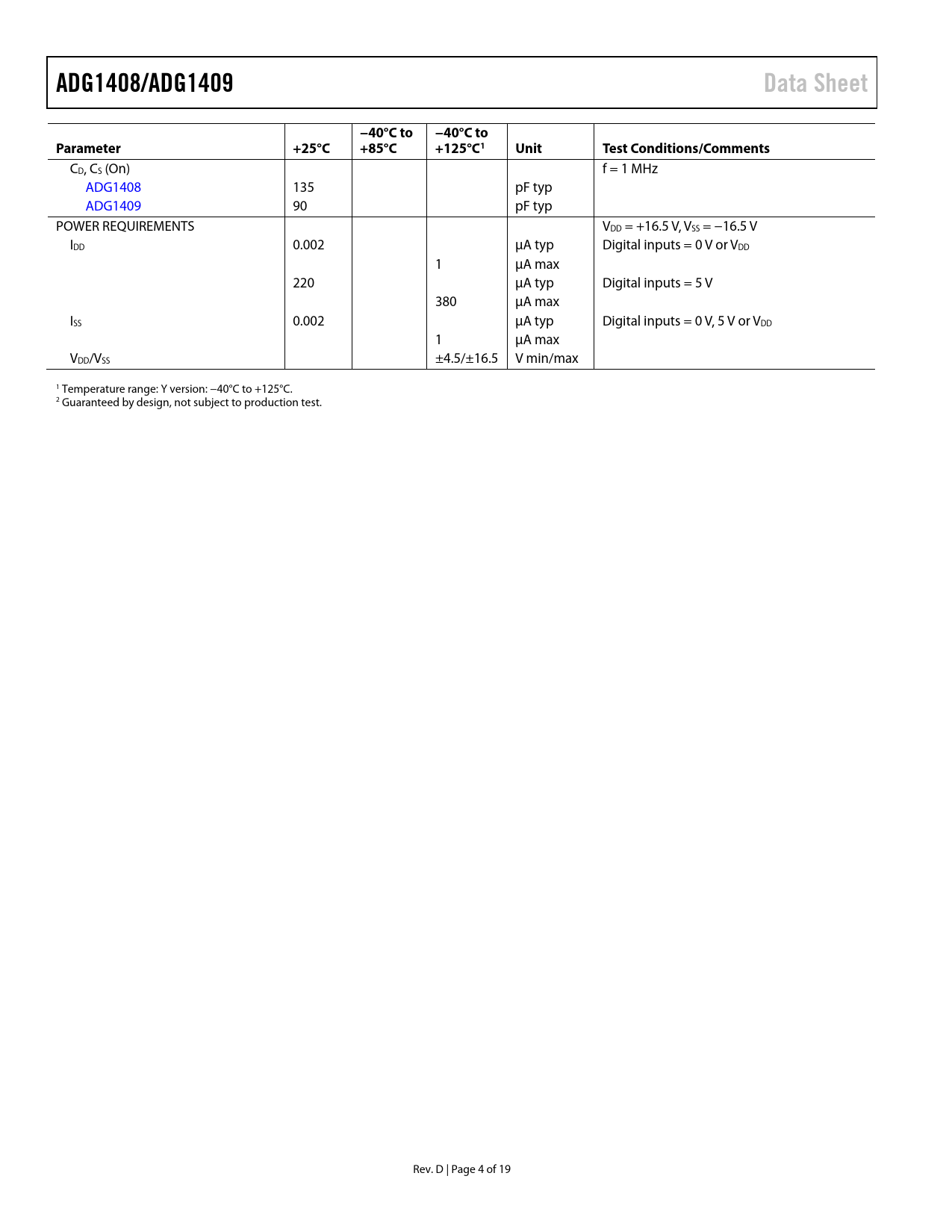

ADG1408/ADG1409. Data Sheet. −40°C to. Parameter +25°C. +85°C. +125°C1 Unit. Test. Conditions/Comments
Model Line for this Datasheet
Text Version of Document
ADG1408/ADG1409 Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C1 Unit Test Conditions/Comments
CD, CS (On) f = 1 MHz ADG1408 135 pF typ ADG1409 90 pF typ POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max 220 μA typ Digital inputs = 5 V 380 μA max ISS 0.002 μA typ Digital inputs = 0 V, 5 V or VDD 1 μA max VDD/VSS ±4.5/±16.5 V min/max 1 Temperature range: Y version: −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. D | Page 4 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
CD, CS (On) f = 1 MHz ADG1408 135 pF typ ADG1409 90 pF typ POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max 220 μA typ Digital inputs = 5 V 380 μA max ISS 0.002 μA typ Digital inputs = 0 V, 5 V or VDD 1 μA max VDD/VSS ±4.5/±16.5 V min/max 1 Temperature range: Y version: −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. D | Page 4 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
