Datasheet ADG1212-EP (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | Low Capacitance, Low Charge Injection, ±15 V/+12 V iCMOS Quad SPST Switches |
| Pages / Page | 12 / 10 — ADG1212-EP. Enhanced Product. VDD. VSS. 0.1µF. VIN. 50%. OUT. 90%. 300Ω. … |
| Revision | B |
| File Format / Size | PDF / 337 Kb |
| Document Language | English |

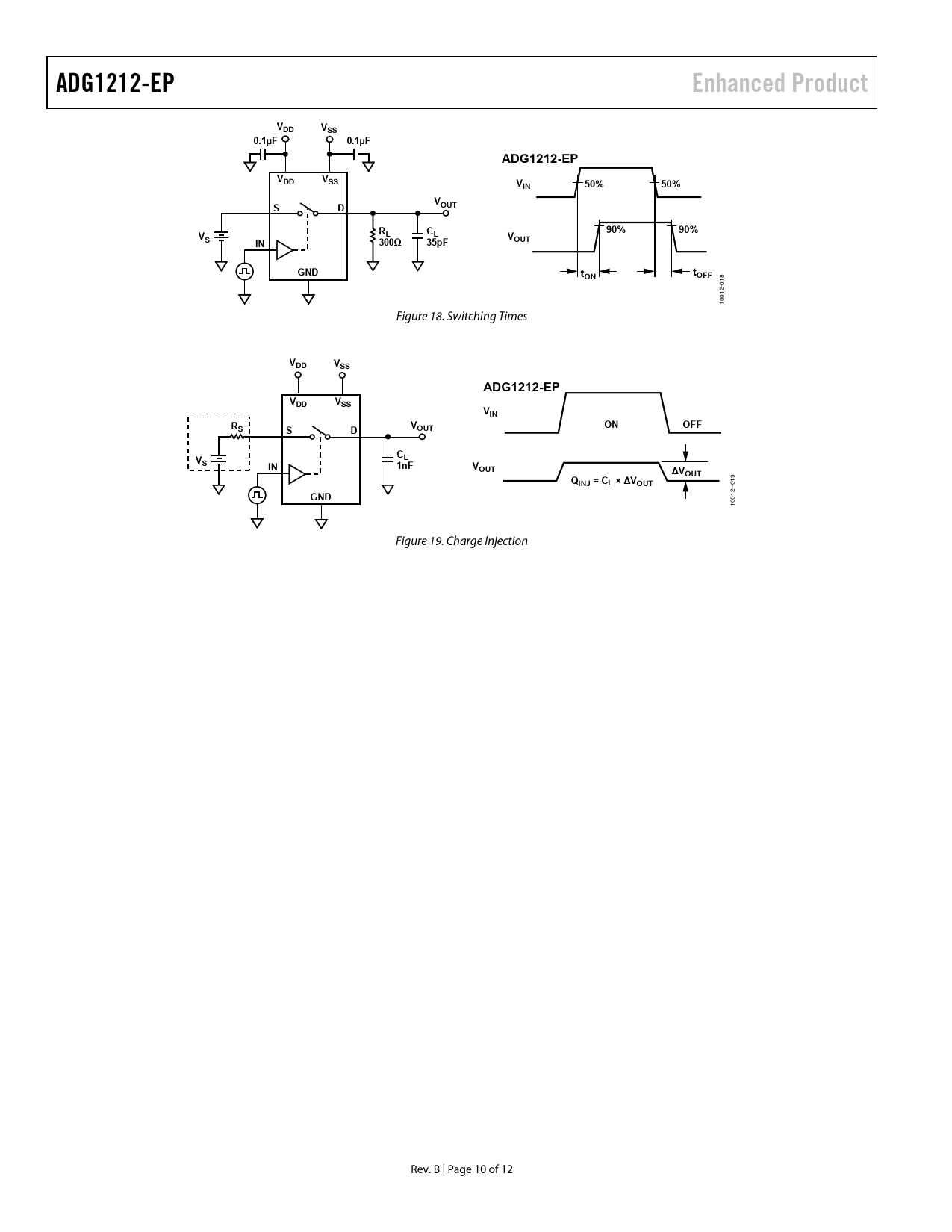

ADG1212-EP. Enhanced Product. VDD. VSS. 0.1µF. VIN. 50%. OUT. 90%. 300Ω. 35pF. GND. OFF. 1nF. VOUT. ∆VOUT. INJ = CL × ∆VOUT
Model Line for this Datasheet
Text Version of Document
ADG1212-EP Enhanced Product VDD VSS 0.1µF 0.1µF ADG1212-EP VDD VSS VIN 50% 50% V S D OUT R C 90% 90% V L L S V IN 300Ω 35pF OUT GND t t ON OFF
8 1 0 2- 01 10 Figure 18. Switching Times
VDD VSS ADG1212-EP VDD VSS VIN R V S OUT ON OFF S D C V L S IN 1nF VOUT ∆VOUT Q
9
INJ = CL × ∆VOUT
1 -0 2-
GND
1001 Figure 19. Charge Injection Rev. B | Page 10 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
