ADG619-EP. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 5

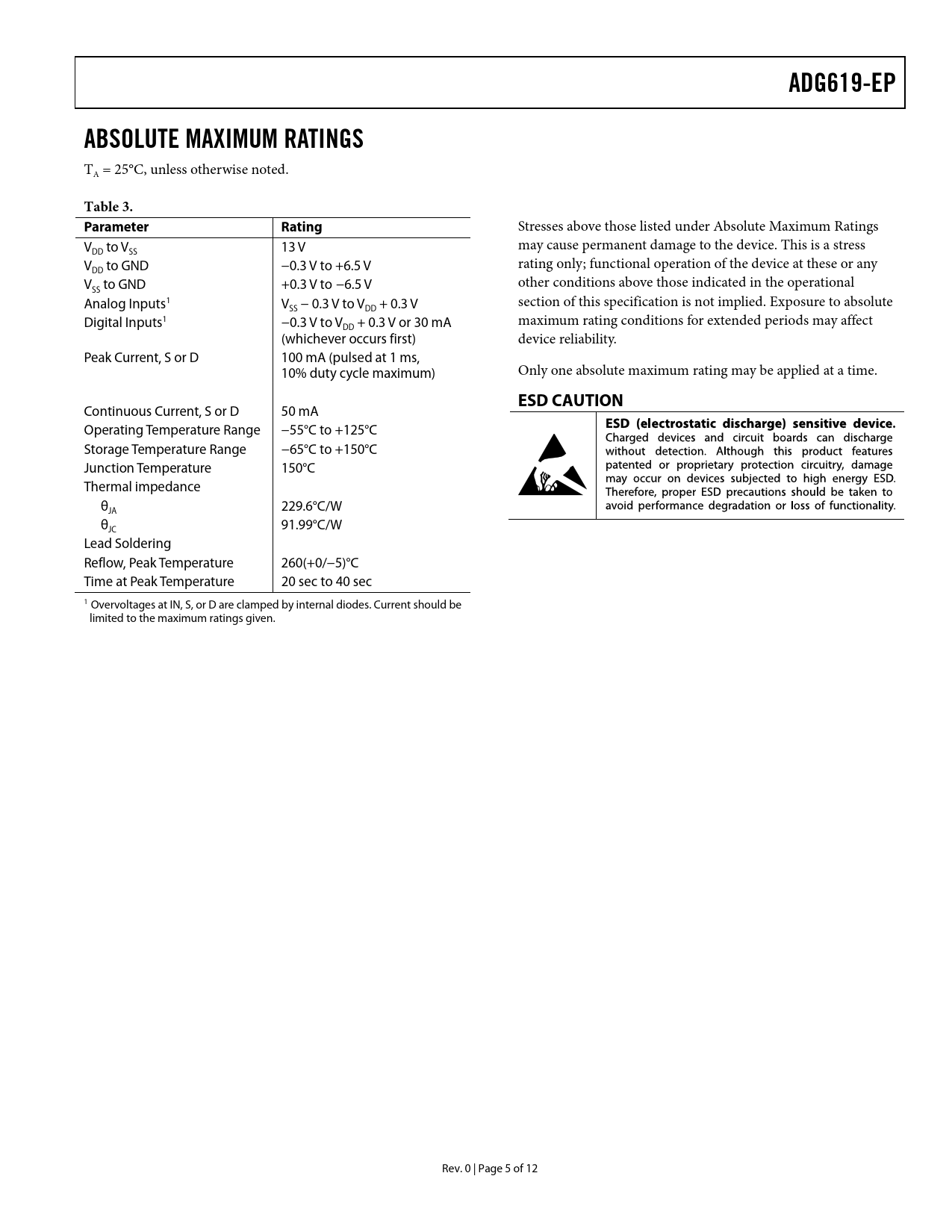

ADG619-EP ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3. Parameter Rating
Stresses above those listed under Absolute Maximum Ratings V to V 13 V may cause permanent damage to the device. This is a stress DD SS V to GND −0.3 V to +6.5 V rating only; functional operation of the device at these or any DD V to GND +0.3 V to −6.5 V other conditions above those indicated in the operational SS Analog Inputs1 V − 0.3 V to V + 0.3 V section of this specification is not implied. Exposure to absolute SS DD Digital Inputs1 −0.3 V to V + 0.3 V or 30 mA maximum rating conditions for extended periods may affect DD (whichever occurs first) device reliability. Peak Current, S or D 100 mA (pulsed at 1 ms, 10% duty cycle maximum) Only one absolute maximum rating may be applied at a time.
ESD CAUTION
Continuous Current, S or D 50 mA Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Thermal impedance θ 229.6°C/W JA θ 91.99°C/W JC Lead Soldering Reflow, Peak Temperature 260(+0/−5)°C Time at Peak Temperature 20 sec to 40 sec 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. 0 | Page 5 of 12 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
