Datasheet ADG786, ADG788 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 2.5 , 1.8 V to 5.5 V, 2.5 V Triple/Quad SPDT Switches in Chip Scale Packages |
| Pages / Page | 11 / 1 — 2.5. , 1.8 V to 5.5 V,. 2.5 V Triple/Quad. SPDT Switches in Chip Scale … |
| Revision | C |
| File Format / Size | PDF / 368 Kb |
| Document Language | English |
2.5. , 1.8 V to 5.5 V,. 2.5 V Triple/Quad. SPDT Switches in Chip Scale Packages. ADG786. /ADG788. FEATURES. FUNCTIONAL BLOCK DIAGRAMS
Model Line for this Datasheet
Text Version of Document
a

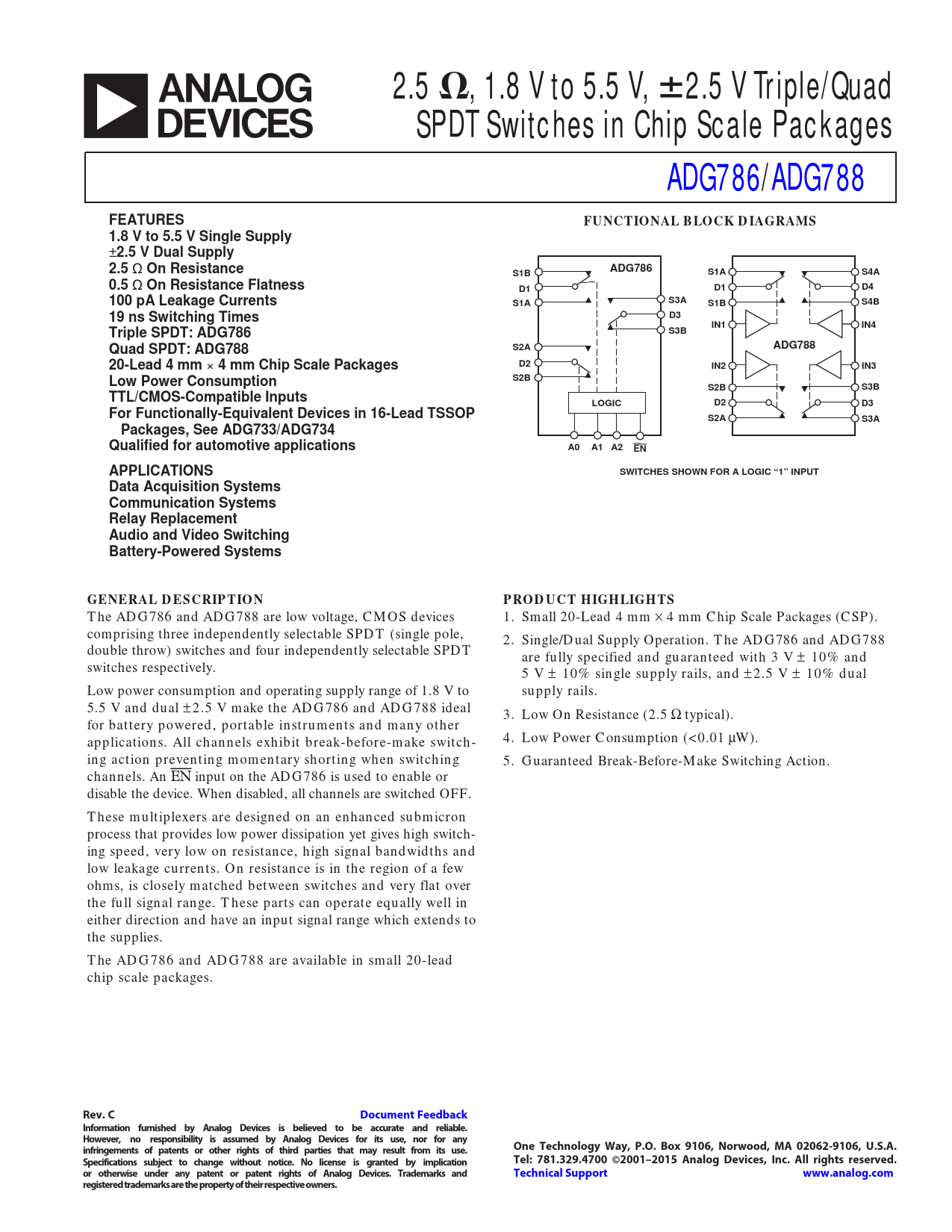

2.5 , 1.8 V to 5.5 V, 2.5 V Triple/Quad SPDT Switches in Chip Scale Packages ADG786 /ADG788 FEATURES FUNCTIONAL BLOCK DIAGRAMS 1.8 V to 5.5 V Single Supply
±
2.5 V Dual Supply 2.5
ȍ
On Resistance ADG786 S1B S1A S4A 0.5
ȍ
On Resistance Flatness D1 D1 D 100 pA Leakage Currents S1A S3A S1B S4B D3 19 ns Switching Times IN1 IN4 S3B Triple SPDT: ADG786 S2A ADG788 Quad SPDT: ADG788 D2 20-Lead 4 mm
×
4 mm Chip Scale Packages IN2 IN3 S2B Low Power Consumption S2B S3B TTL/CMOS-Compatible Inputs LOGIC D2 D3 For Functionally-Equivalent Devices in 16-Lead TSSOP S2A S3A Packages, See ADG733/ADG734 Qualified for automotive applications A0 A1 A2 EN APPLICATIONS SWITCHES SHOWN FOR A LOGIC “1” INPUT Data Acquisition Systems Communication Systems Relay Replacement Audio and Video Switching Battery-Powered Systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG786 and ADG788 are low voltage, CMOS devices 1. Small 20-Lead 4 mm × 4 mm Chip Scale Packages (CSP). comprising three independently selectable SPDT (single pole, 2. Single/Dual Supply Operation. The ADG786 and ADG788 double throw) switches and four independently selectable SPDT are fully specified and guaranteed with 3 V ± 10% and switches respectively. 5 V ± 10% single supply rails, and ± 2.5 V ± 10% dual Low power consumption and operating supply range of 1.8 V to supply rails. 5.5 V and dual ± 2.5 V make the ADG786 and ADG788 ideal 3. Low On Resistance (2.5 Ω typical). for battery powered, portable instruments and many other applications. All channels exhibit break-before-make switch- 4. Low Power Consumption (<0.01 μW). ing action preventing momentary shorting when switching 5. Guaranteed Break-Before-Make Switching Action. channels. An EN input on the ADG786 is used to enable or disable the device. When disabled, all channels are switched OFF. These multiplexers are designed on an enhanced submicron process that provides low power dissipation yet gives high switch- ing speed, very low on resistance, high signal bandwidths and low leakage currents. On resistance is in the region of a few ohms, is closely matched between switches and very flat over the full signal range. These parts can operate equally well in either direction and have an input signal range which extends to the supplies. The ADG786 and ADG788 are available in small 20-lead chip scale packages.
