Datasheet LXHL (Lumileds) - 8
| Manufacturer | Lumileds |
| Description | Power Light Source |
| Pages / Page | 19 / 8 — Wavelength Characteristics, TJ = 25ºC. Figure 1a. Relative Intensity vs. … |
| File Format / Size | PDF / 984 Kb |
| Document Language | English |

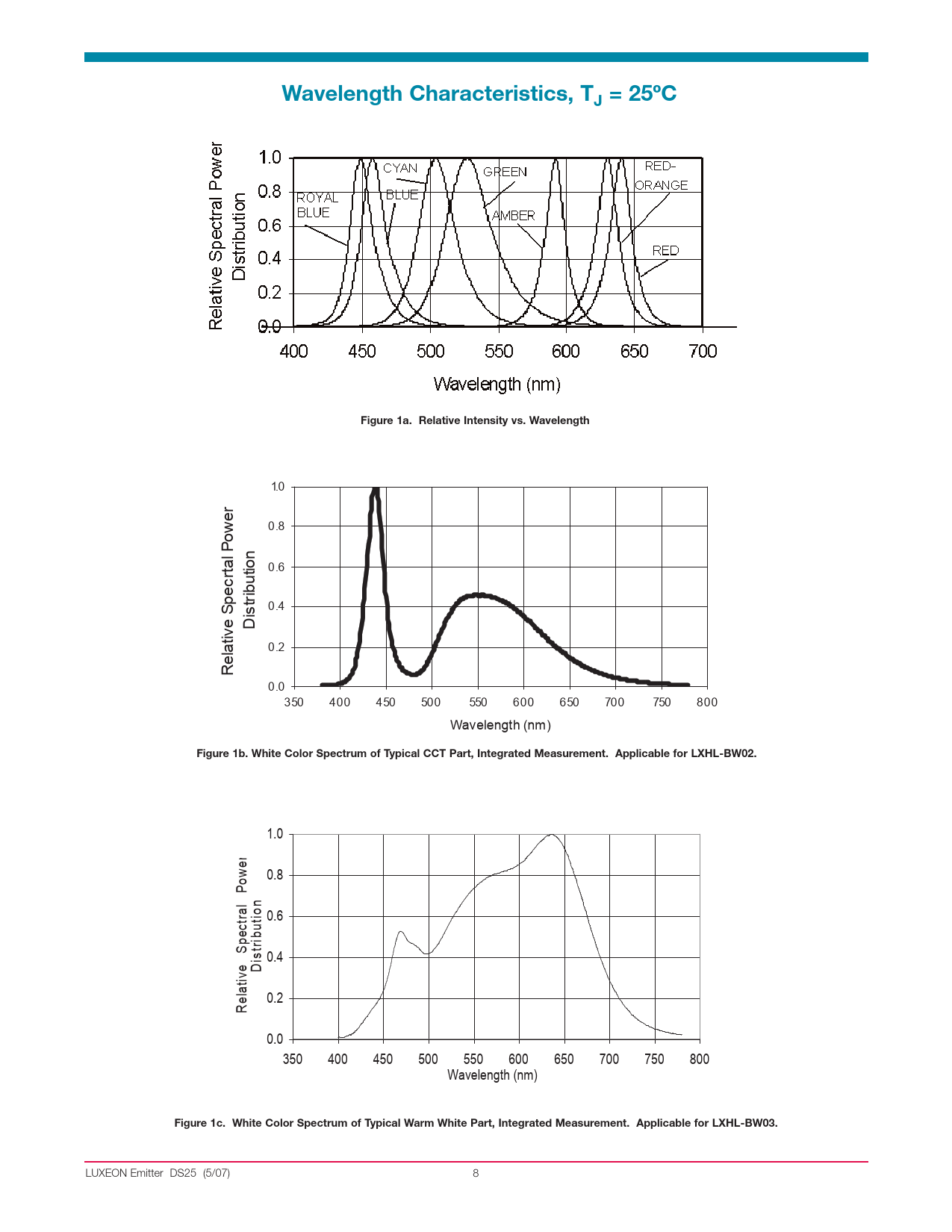

Wavelength Characteristics, TJ = 25ºC. Figure 1a. Relative Intensity vs. Wavelength
Model Line for this Datasheet
Text Version of Document
Wavelength Characteristics, TJ = 25ºC Figure 1a. Relative Intensity vs. Wavelength
1.0 er 0.8 ow P ion 0.6 rtal pec 0.4 istribut D 0.2 elative S R 0.0 350 400 450 500 550 600 650 700 750 800 Wavelength (nm)
Figure 1b. White Color Spectrum of Typical CCT Part, Integrated Measurement. Applicable for LXHLBW02.
1.0 0.8 0.6 0.4 Distribution 0.2 Relative Spectral Power 0.0 350 400 450 500 550 600 650 700 750 800 Wavelength (nm)
Figure 1c. White Color Spectrum of Typical Warm White Part, Integrated Measurement. Applicable for LXHLBW03.
LUXEON Emitter DS25 (5/07) 8
1.0 er 0.8 ow P ion 0.6 rtal pec 0.4 istribut D 0.2 elative S R 0.0 350 400 450 500 550 600 650 700 750 800 Wavelength (nm)
Figure 1b. White Color Spectrum of Typical CCT Part, Integrated Measurement. Applicable for LXHLBW02.
1.0 0.8 0.6 0.4 Distribution 0.2 Relative Spectral Power 0.0 350 400 450 500 550 600 650 700 750 800 Wavelength (nm)
Figure 1c. White Color Spectrum of Typical Warm White Part, Integrated Measurement. Applicable for LXHLBW03.
LUXEON Emitter DS25 (5/07) 8
