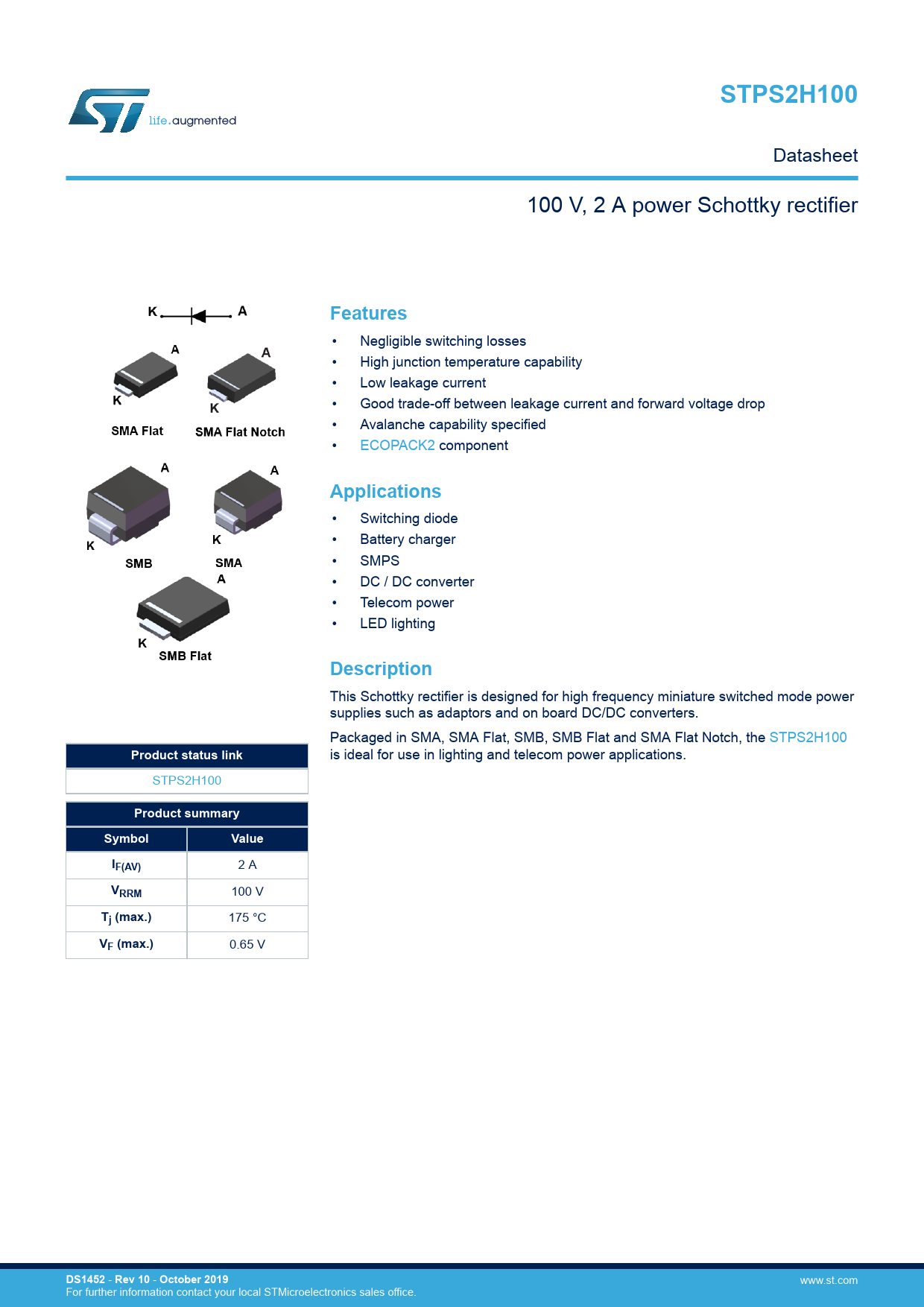

STPS2H100
Datasheet 100 V, 2 A power Schottky rectifier
Features
• Negligible switching losses • High junction temperature capability • Low leakage current • Good trade-off between leakage current and forward voltage drop • Avalanche capability specified • ECOPACK2 component
Applications
• Switching diode • Battery charger • SMPS • DC / DC converter • Telecom power • LED lighting
Description
This Schottky rectifier is designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMA, SMA Flat, SMB, SMB Flat and SMA Flat Notch, the STPS2H100
Product status link
is ideal for use in lighting and telecom power applications. STPS2H100
Product summary Symbol Value IF(AV)
2 A
VRRM
100 V
Tj (max.)
175 °C
VF (max.)
0.65 V
DS1452
-
Rev 10
-
October 2019
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 SMA Flat package information 2.2 SMA Flat Notch package information 2.3 SMA package information 2.4 SMB package information 2.5 SMB Flat package information 3 Ordering Information Revision history
