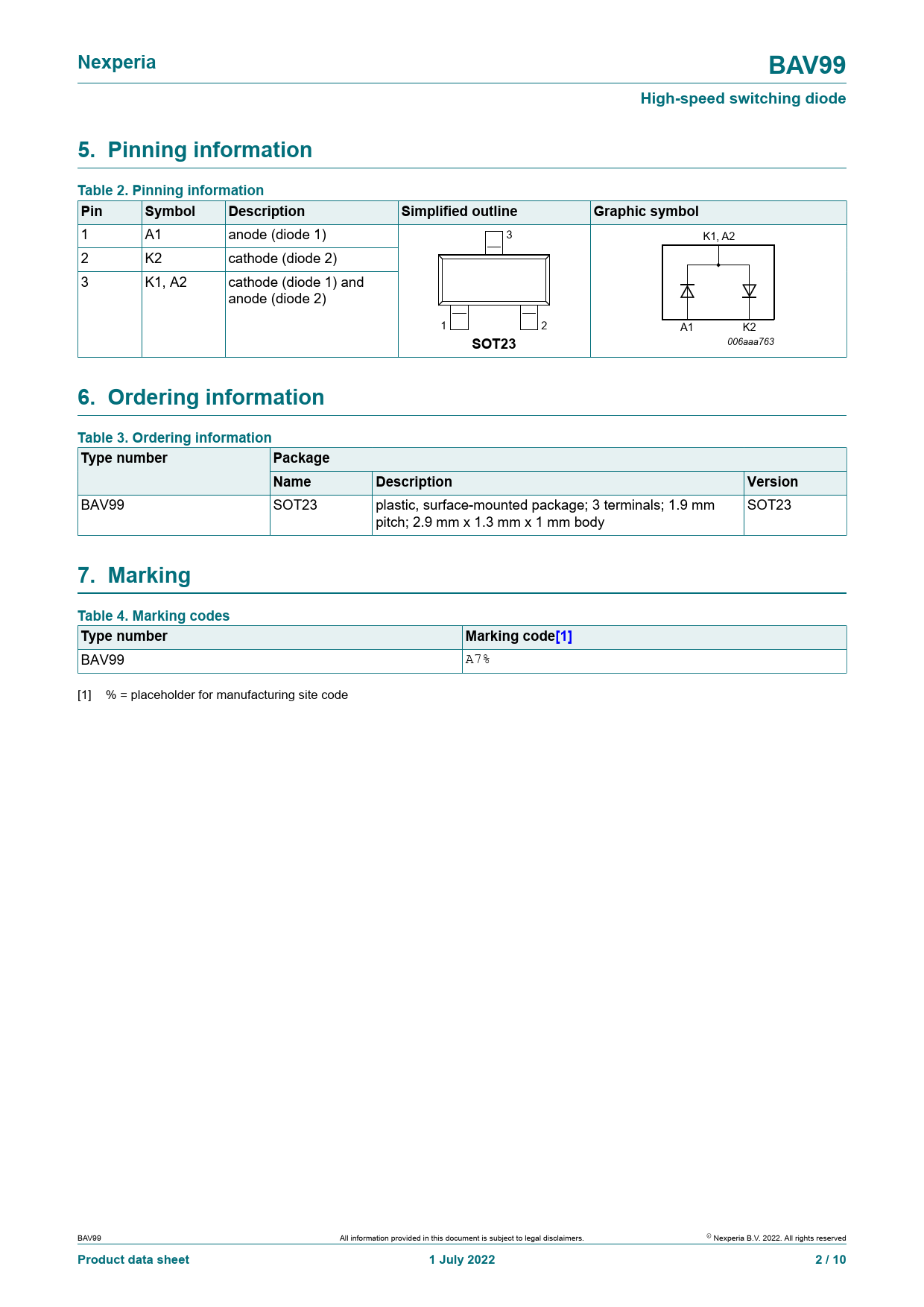

Nexperia BAV99 High-speed switching diode 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 A1 anode (diode 1) 3 K1, A2 2 K2 cathode (diode 2) 3 K1, A2 cathode (diode 1) and anode (diode 2) 1 2 A1 K2
SOT23
006aaa763
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BAV99 SOT23 plastic, surface-mounted package; 3 terminals; 1.9 mm SOT23 pitch; 2.9 mm x 1.3 mm x 1 mm body
7. Marking Table 4. Marking codes Type number Marking code[1]
BAV99 A7% [1] % = placeholder for manufacturing site code BAV99 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
