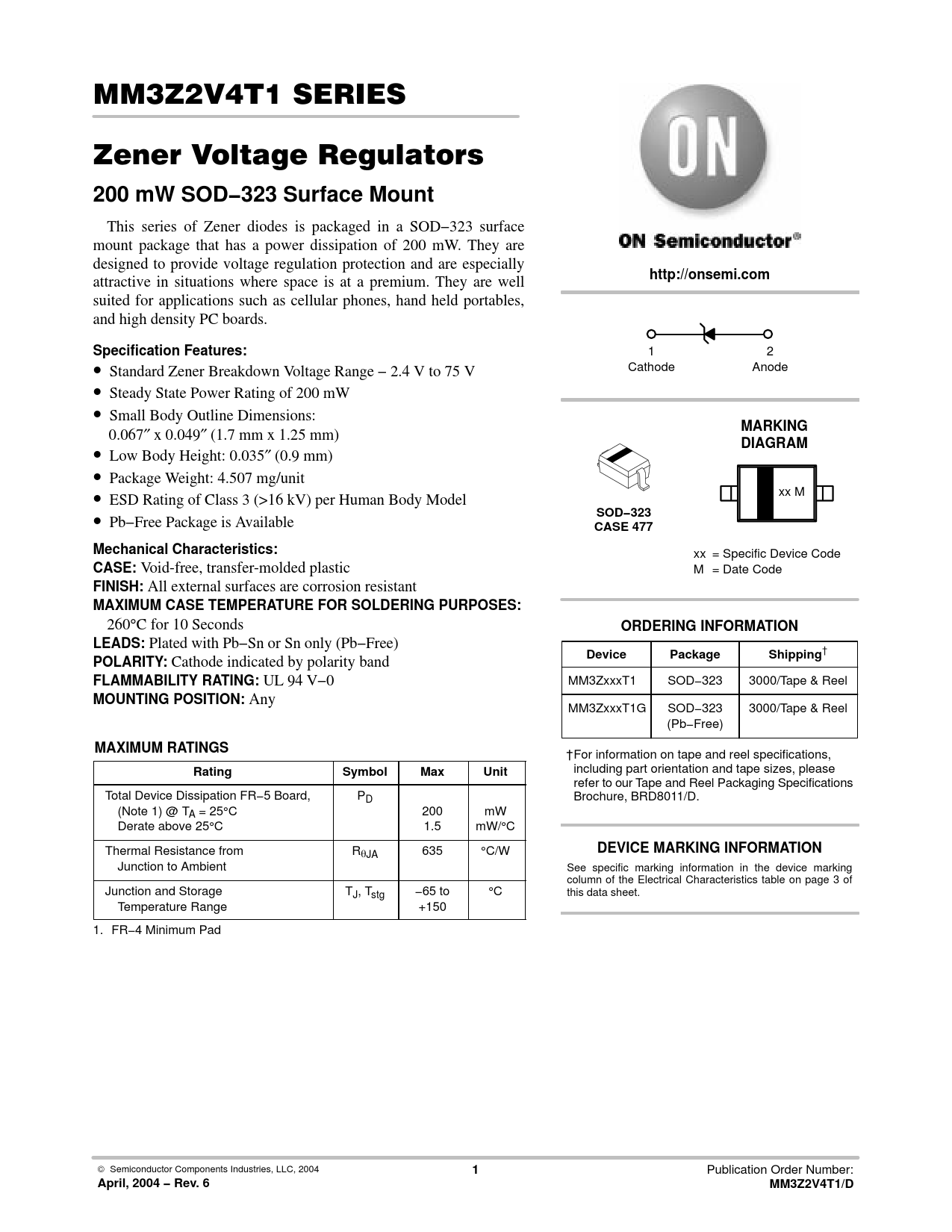

MM3Z2V4T1 SERIES Zener Voltage Regulators
200 mW SOD−323 Surface Mount
This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 200 mW. They are designed to provide voltage regulation protection and are especially
http://onsemi.com
attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Specification Features:
1 2 • Standard Zener Breakdown Voltage Range − 2.4 V to 75 V Cathode Anode • Steady State Power Rating of 200 mW • Small Body Outline Dimensions:
MARKING
0.067″ x 0.049″ (1.7 mm x 1.25 mm) •
DIAGRAM
Low Body Height: 0.035″ (0.9 mm) • Package Weight: 4.507 mg/unit • xx M ESD Rating of Class 3 (>16 kV) per Human Body Model •
SOD−323
Pb−Free Package is Available
CASE 477 Mechanical Characteristics:
xx = Specific Device Code
CASE:
Void-free, transfer-molded plastic M = Date Code
FINISH:
All external surfaces are corrosion resistant
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds
ORDERING INFORMATION LEADS:
Plated with Pb−Sn or Sn only (Pb−Free)
Device Package Shipping POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL 94 V−0 MM3ZxxxT1 SOD−323 3000/Tape & Reel
MOUNTING POSITION:
Any MM3ZxxxT1G SOD−323 3000/Tape & Reel (Pb−Free)
MAXIMUM RATINGS
†For information on tape and reel specifications,
Rating Symbol Max Unit
including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Total Device Dissipation FR−5 Board, PD Brochure, BRD8011/D. (Note 1) @ TA = 25°C 200 mW Derate above 25°C 1.5 mW/°C Thermal Resistance from R
DEVICE MARKING INFORMATION
JA 635 °C/W Junction to Ambient See specific marking information in the device marking column of the Electrical Characteristics table on page 3 of Junction and Storage TJ, Tstg −65 to °C this data sheet. Temperature Range +150 1. FR−4 Minimum Pad Semiconductor Components Industries, LLC, 2004
