Datasheet NC7SV74 (ON Semiconductor) - 9
| Manufacturer | ON Semiconductor |
| Description | TinyLogic ULP-A D-Type Flip-Flop with Preset and Clear |
| Pages / Page | 13 / 9 — Tape. Size |
| File Format / Size | PDF / 553 Kb |
| Document Language | English |
Tape. Size
Model Line for this Datasheet
NC7SV74
Text Version of Document
Tape
Size
8 mm A B C D N W1 W2 W3 7.0 0.059 0.512 0.795 2.165 0.331 + 0.059/-0.000 0.567 W1 + 0.078/-0.039 (177.8) (1.50) (13.00) (20.20) (55.00) (8.40 + 1.50/-0.00) (14.40) (W1 + 2.00/-1.00) © 2003 Fairchild Semiconductor Corporation
NC7SV74 • Rev. 3.0.0 www.fairchildsemi.com

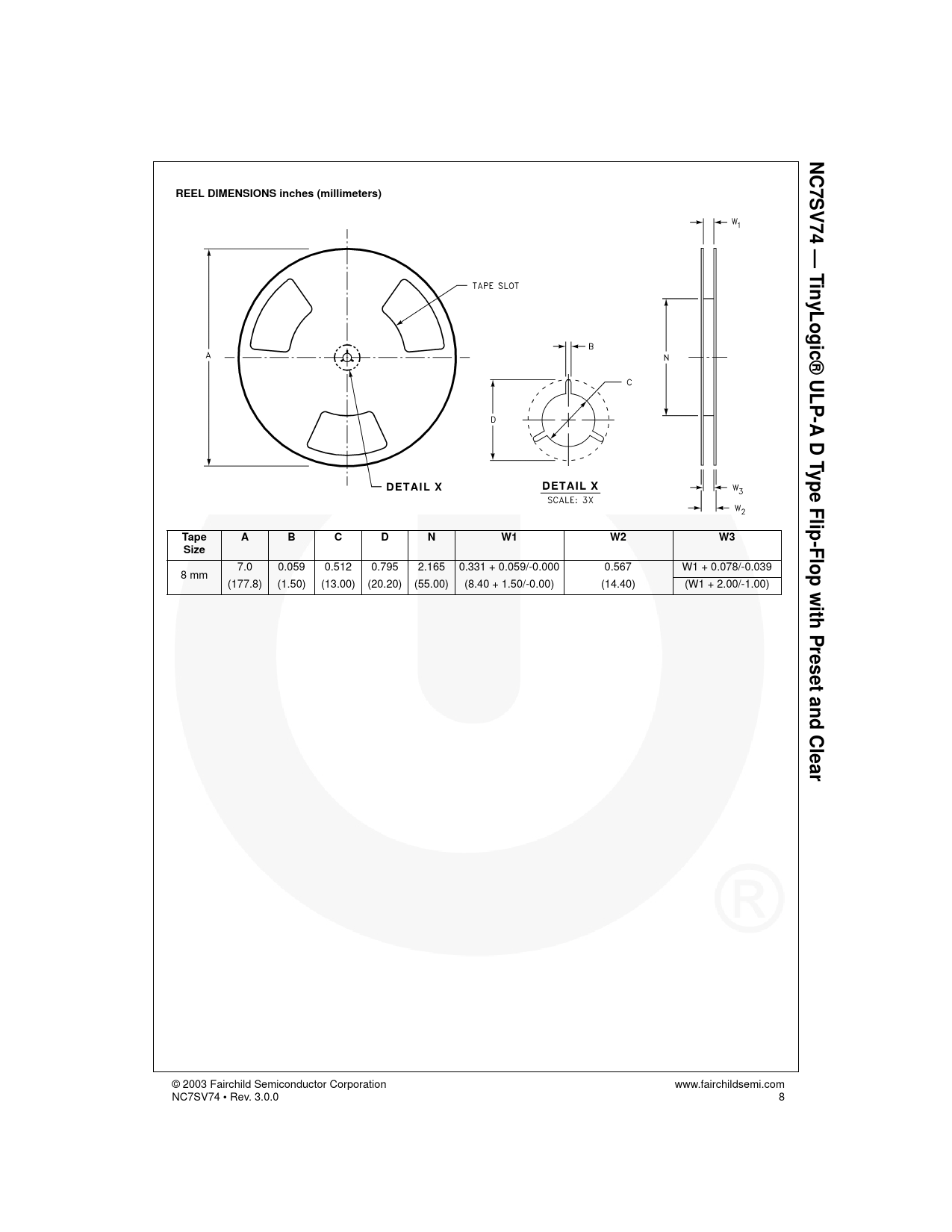

8 NC7SV74 — TinyLogic® ULP-A D Type Flip-Flop with Preset and Clear REEL DIMENSIONS inches (millimeters)
Size
8 mm A B C D N W1 W2 W3 7.0 0.059 0.512 0.795 2.165 0.331 + 0.059/-0.000 0.567 W1 + 0.078/-0.039 (177.8) (1.50) (13.00) (20.20) (55.00) (8.40 + 1.50/-0.00) (14.40) (W1 + 2.00/-1.00) © 2003 Fairchild Semiconductor Corporation
NC7SV74 • Rev. 3.0.0 www.fairchildsemi.com
8 NC7SV74 — TinyLogic® ULP-A D Type Flip-Flop with Preset and Clear REEL DIMENSIONS inches (millimeters)
