link to page 6 link to page 3 link to page 10 link to page 10 6 MM9200 - SPST Power Switch - Preliminary Datasheet | Nov. 30, 2022
v1.0 Functional Block Diagram I G M O

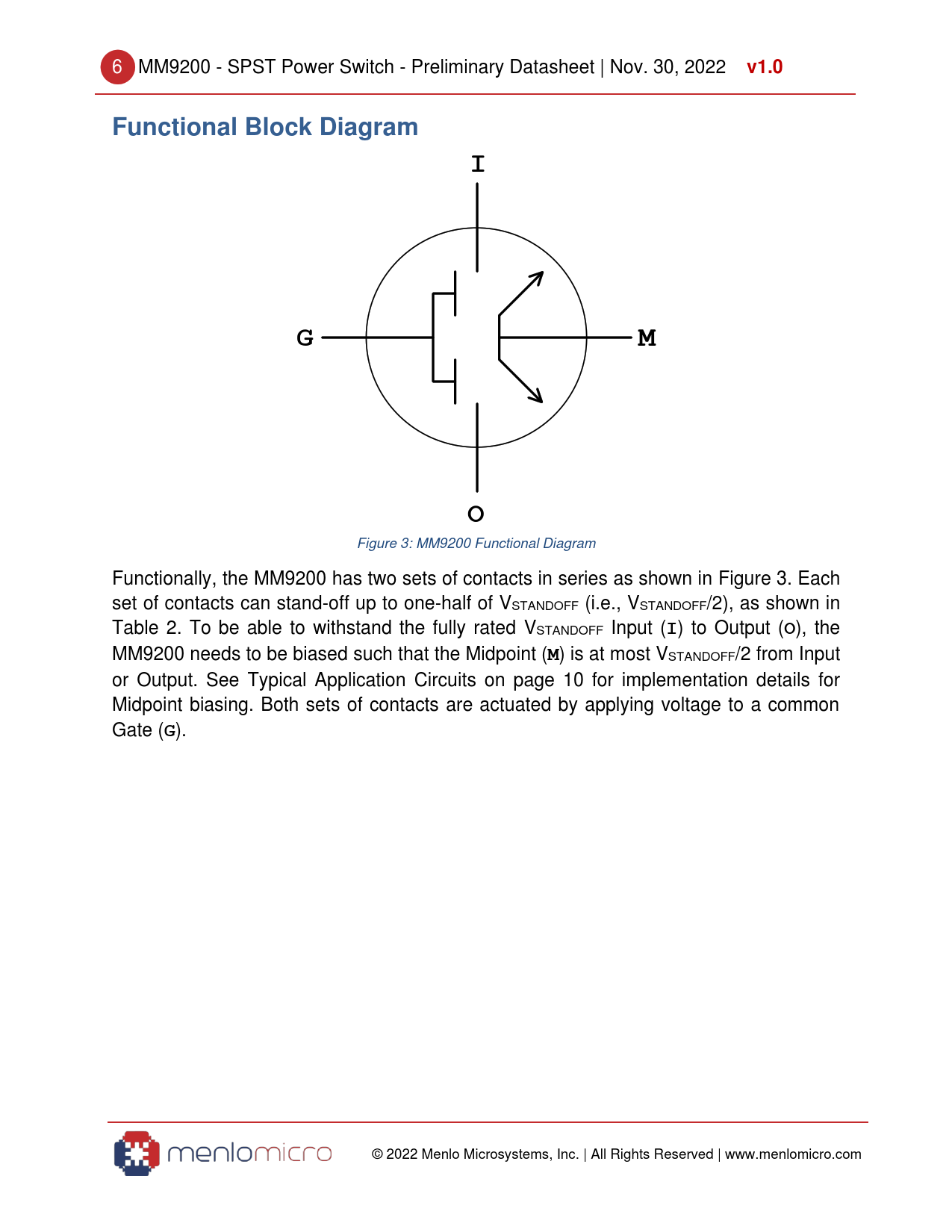

Figure 3: MM9200 Functional Diagram Functionally, the MM9200 has two sets of contacts in series as shown in Figure 3. Each set of contacts can stand-off up to one-half of VSTANDOFF (i.e., VSTANDOFF/2), as shown in Table 2. To be able to withstand the fully rated VSTANDOFF Input (
I
) to Output (
O
), the MM9200 needs to be biased such that the Midpoint (
M
) is at most VSTANDOFF/2 from Input or Output. See Typical Application Circuits on page 10 for implementation details for Midpoint biasing. Both sets of contacts are actuated by applying voltage to a common Gate (
G
).
© 2022 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
