Preliminary Datasheet MM9200 (Menlo Micro) - 8
| Manufacturer | Menlo Micro |
| Description | SPST Power Switch |
| Pages / Page | 14 / 8 — v1.0. WL-CSP Package Pin Out. Table 5. Pin #. Pin Name. Description |
| File Format / Size | PDF / 768 Kb |
| Document Language | English |
v1.0. WL-CSP Package Pin Out. Table 5. Pin #. Pin Name. Description
Model Line for this Datasheet
Text Version of Document
8 MM9200 - SPST Power Switch - Preliminary Datasheet | Nov. 30, 2022
v1.0 WL-CSP Package Pin Out

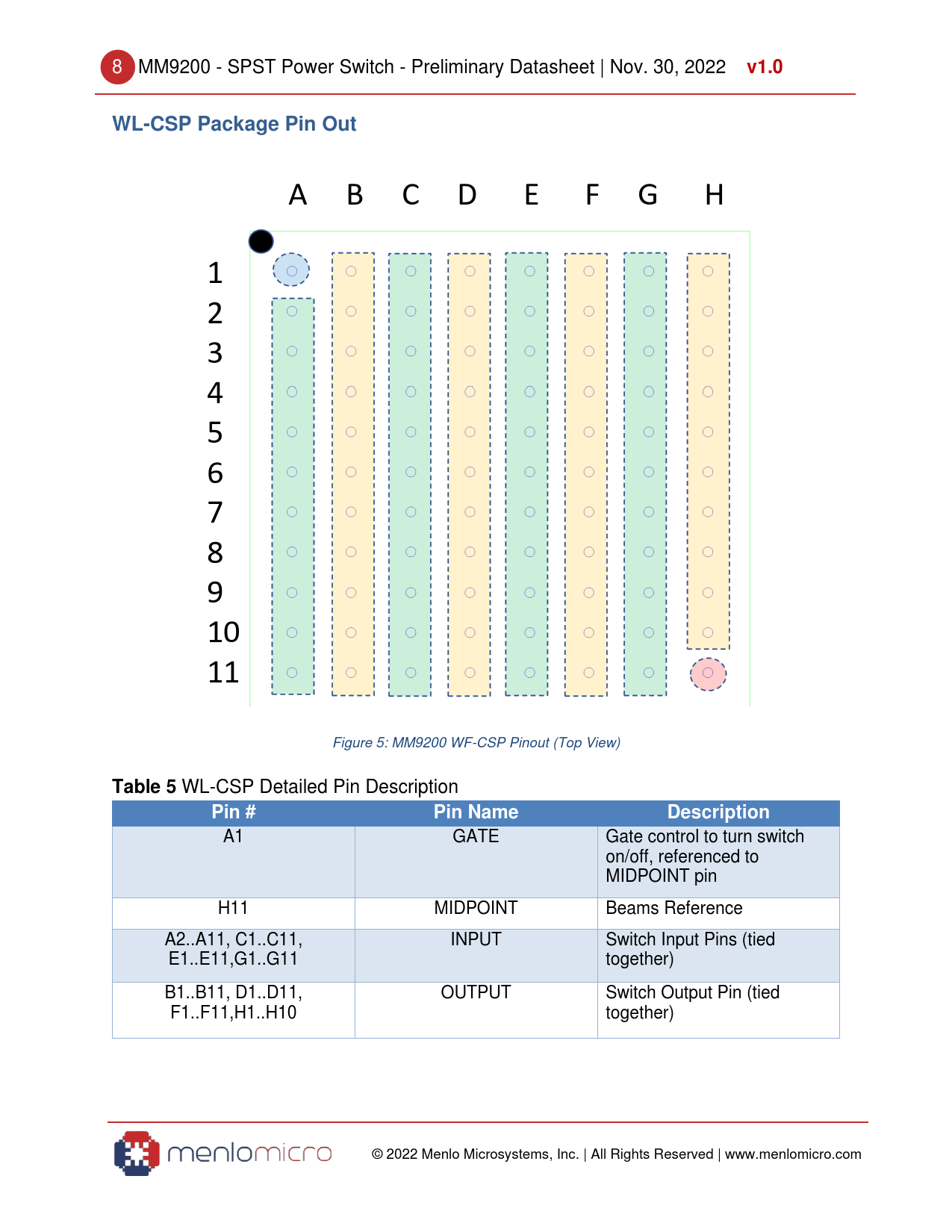

A B C D E F G H 1 2 3 4 5 6 7 8 9 10 11 Figure 5: MM9200 WF-CSP Pinout (Top View)
Table 5
WL-CSP Detailed Pin Description
Pin # Pin Name Description
A1 GATE Gate control to turn switch on/off, referenced to MIDPOINT pin H11 MIDPOINT Beams Reference A2..A11, C1..C11, INPUT Switch Input Pins (tied E1..E11,G1..G11 together) B1..B11, D1..D11, OUTPUT Switch Output Pin (tied F1..F11,H1..H10 together)
