Datasheet PEMD12, PUMD12 (Nexperia) - 3
| Manufacturer | Nexperia |
| Description | NPN/PNP Resistor-Equipped Transistors; R1 = 47 kΩ, R2 = 47 kΩ |
| Pages / Page | 17 / 3 — NXP Semiconductors. PEMD12; PUMD12. NPN/PNP resistor-equipped … |
| Revision | 12102022 |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
NXP Semiconductors. PEMD12; PUMD12. NPN/PNP resistor-equipped transistors; R1 = 47 k. , R2 = 47 k. 2. Pinning. information. Table 3
Model Line for this Datasheet
Text Version of Document
link to page 3

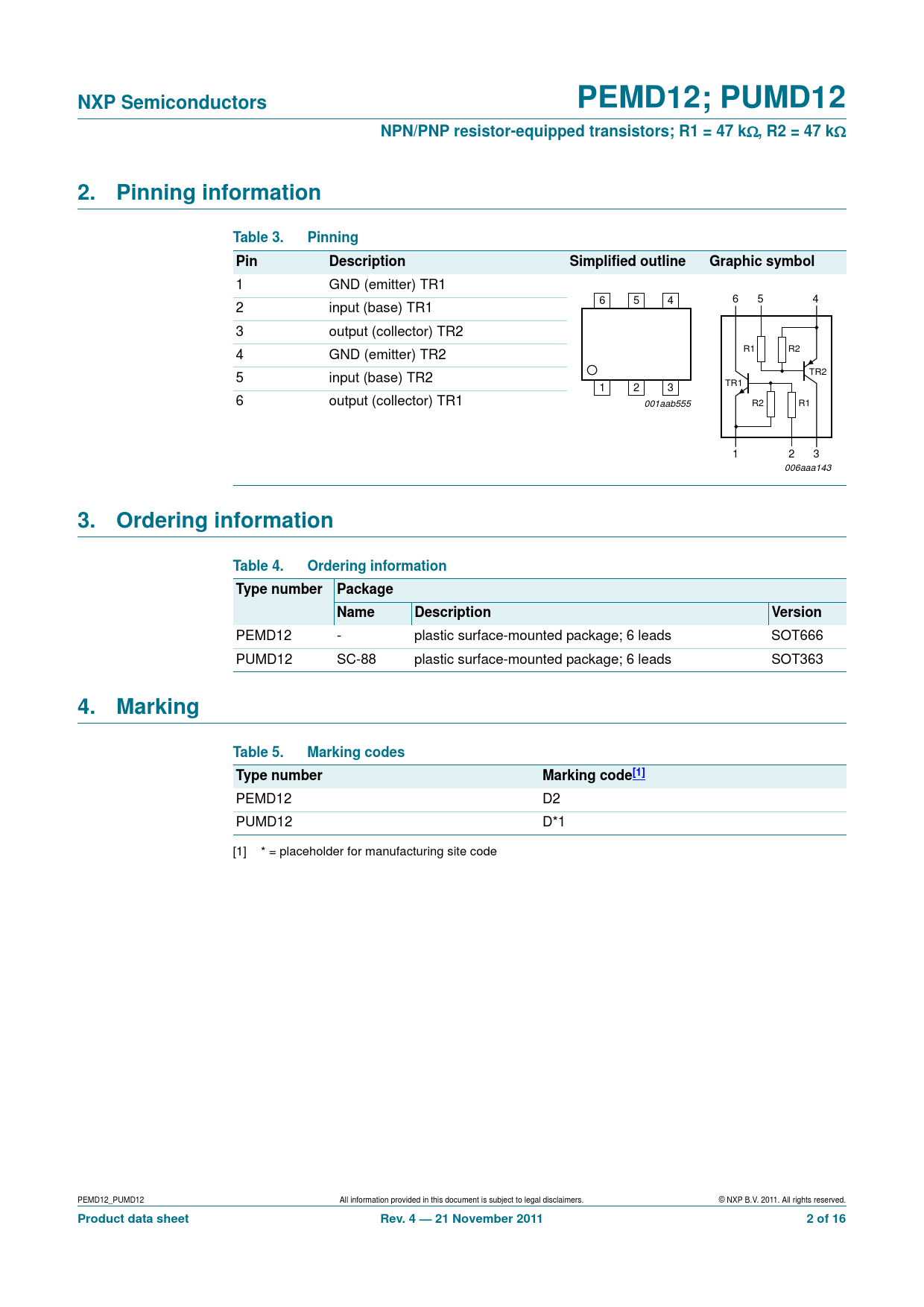

NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k 2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol
1 GND (emitter) TR1 6 5 4 6 5 4 2 input (base) TR1 3 output (collector) TR2 4 GND (emitter) TR2 R1 R2 5 input (base) TR2 TR2 1 2 3 TR1 6 output (collector) TR1 001aab555 R2 R1 1 2 3 006aaa143
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
PEMD12 - plastic surface-mounted package; 6 leads SOT666 PUMD12 SC-88 plastic surface-mounted package; 6 leads SOT363
4. Marking Table 5. Marking codes Type number Marking code[1]
PEMD12 D2 PUMD12 D*1 [1] * = placeholder for manufacturing site code PEMD12_PUMD12 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 4 — 21 November 2011 2 of 16
