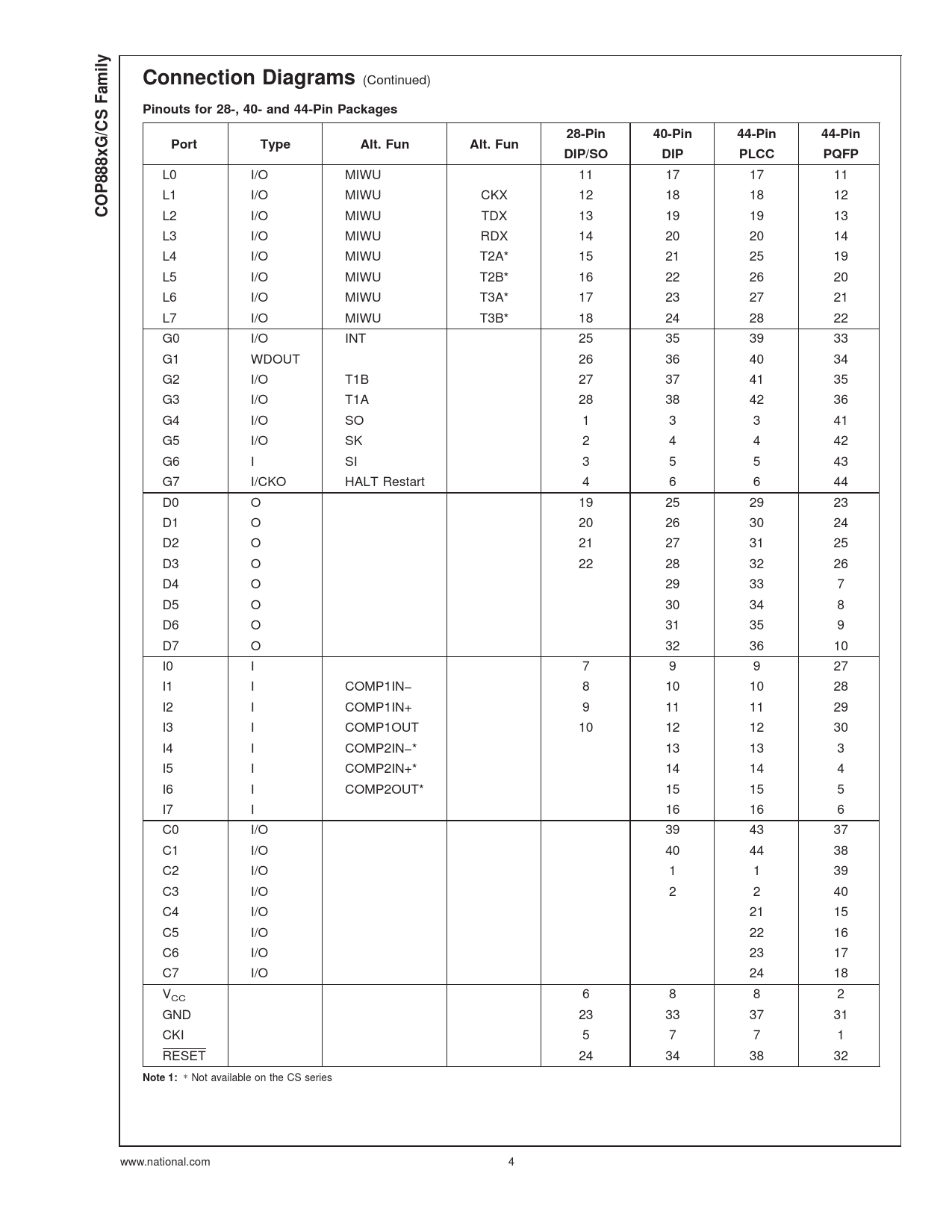

Connection Diagrams. Family. Pinouts for 28-, 40- and 44-Pin Packages. 28-Pin. 40-Pin. 44-Pin. Port. Type. Alt. Fun. DIP/SO. DIP. PLCC. PQFP
Model Line for this Datasheet
Text Version of Document
Connection Diagrams
(Continued)
Family Pinouts for 28-, 40- and 44-Pin Packages 28-Pin 40-Pin 44-Pin 44-Pin Port Type Alt. Fun Alt. Fun DIP/SO DIP PLCC PQFP
L0 I/O MIWU 11 17 17 11 L1 I/O MIWU CKX 12 18 18 12
COP888xG/CS
L2 I/O MIWU TDX 13 19 19 13 L3 I/O MIWU RDX 14 20 20 14 L4 I/O MIWU T2A* 15 21 25 19 L5 I/O MIWU T2B* 16 22 26 20 L6 I/O MIWU T3A* 17 23 27 21 L7 I/O MIWU T3B* 18 24 28 22 G0 I/O INT 25 35 39 33 G1 WDOUT 26 36 40 34 G2 I/O T1B 27 37 41 35 G3 I/O T1A 28 38 42 36 G4 I/O SO 1 3 3 41 G5 I/O SK 2 4 4 42 G6 I SI 3 5 5 43 G7 I/CKO HALT Restart 4 6 6 44 D0 O 19 25 29 23 D1 O 20 26 30 24 D2 O 21 27 31 25 D3 O 22 28 32 26 D4 O 29 33 7 D5 O 30 34 8 D6 O 31 35 9 D7 O 32 36 10 I0 I 7 9 9 27 I1 I COMP1IN− 8 10 10 28 I2 I COMP1IN+ 9 11 11 29 I3 I COMP1OUT 10 12 12 30 I4 I COMP2IN−* 13 13 3 I5 I COMP2IN+* 14 14 4 I6 I COMP2OUT* 15 15 5 I7 I 16 16 6 C0 I/O 39 43 37 C1 I/O 40 44 38 C2 I/O 1 1 39 C3 I/O 2 2 40 C4 I/O 21 15 C5 I/O 22 16 C6 I/O 23 17 C7 I/O 24 18 V 6 8 8 2 CC GND 23 33 37 31 CKI 5 7 7 1 RESET 24 34 38 32
Note 1:
* Not available on the CS series www.national.com 4
(Continued)
Family Pinouts for 28-, 40- and 44-Pin Packages 28-Pin 40-Pin 44-Pin 44-Pin Port Type Alt. Fun Alt. Fun DIP/SO DIP PLCC PQFP
L0 I/O MIWU 11 17 17 11 L1 I/O MIWU CKX 12 18 18 12
COP888xG/CS
L2 I/O MIWU TDX 13 19 19 13 L3 I/O MIWU RDX 14 20 20 14 L4 I/O MIWU T2A* 15 21 25 19 L5 I/O MIWU T2B* 16 22 26 20 L6 I/O MIWU T3A* 17 23 27 21 L7 I/O MIWU T3B* 18 24 28 22 G0 I/O INT 25 35 39 33 G1 WDOUT 26 36 40 34 G2 I/O T1B 27 37 41 35 G3 I/O T1A 28 38 42 36 G4 I/O SO 1 3 3 41 G5 I/O SK 2 4 4 42 G6 I SI 3 5 5 43 G7 I/CKO HALT Restart 4 6 6 44 D0 O 19 25 29 23 D1 O 20 26 30 24 D2 O 21 27 31 25 D3 O 22 28 32 26 D4 O 29 33 7 D5 O 30 34 8 D6 O 31 35 9 D7 O 32 36 10 I0 I 7 9 9 27 I1 I COMP1IN− 8 10 10 28 I2 I COMP1IN+ 9 11 11 29 I3 I COMP1OUT 10 12 12 30 I4 I COMP2IN−* 13 13 3 I5 I COMP2IN+* 14 14 4 I6 I COMP2OUT* 15 15 5 I7 I 16 16 6 C0 I/O 39 43 37 C1 I/O 40 44 38 C2 I/O 1 1 39 C3 I/O 2 2 40 C4 I/O 21 15 C5 I/O 22 16 C6 I/O 23 17 C7 I/O 24 18 V 6 8 8 2 CC GND 23 33 37 31 CKI 5 7 7 1 RESET 24 34 38 32
Note 1:
* Not available on the CS series www.national.com 4
