Datasheet BD135, BD136, BD139, BD140 (STMicroelectronics) - 5
| Manufacturer | STMicroelectronics |
| Description | Complementary Low Voltage Transistor |
| Pages / Page | 9 / 5 — BD135 - BD136 - BD139 - BD140. Electrical characteristics. 2.1. … |
| File Format / Size | PDF / 156 Kb |
| Document Language | English |
BD135 - BD136 - BD139 - BD140. Electrical characteristics. 2.1. Electrical characteristics (curves). Figure 2
Model Line for this Datasheet
Text Version of Document

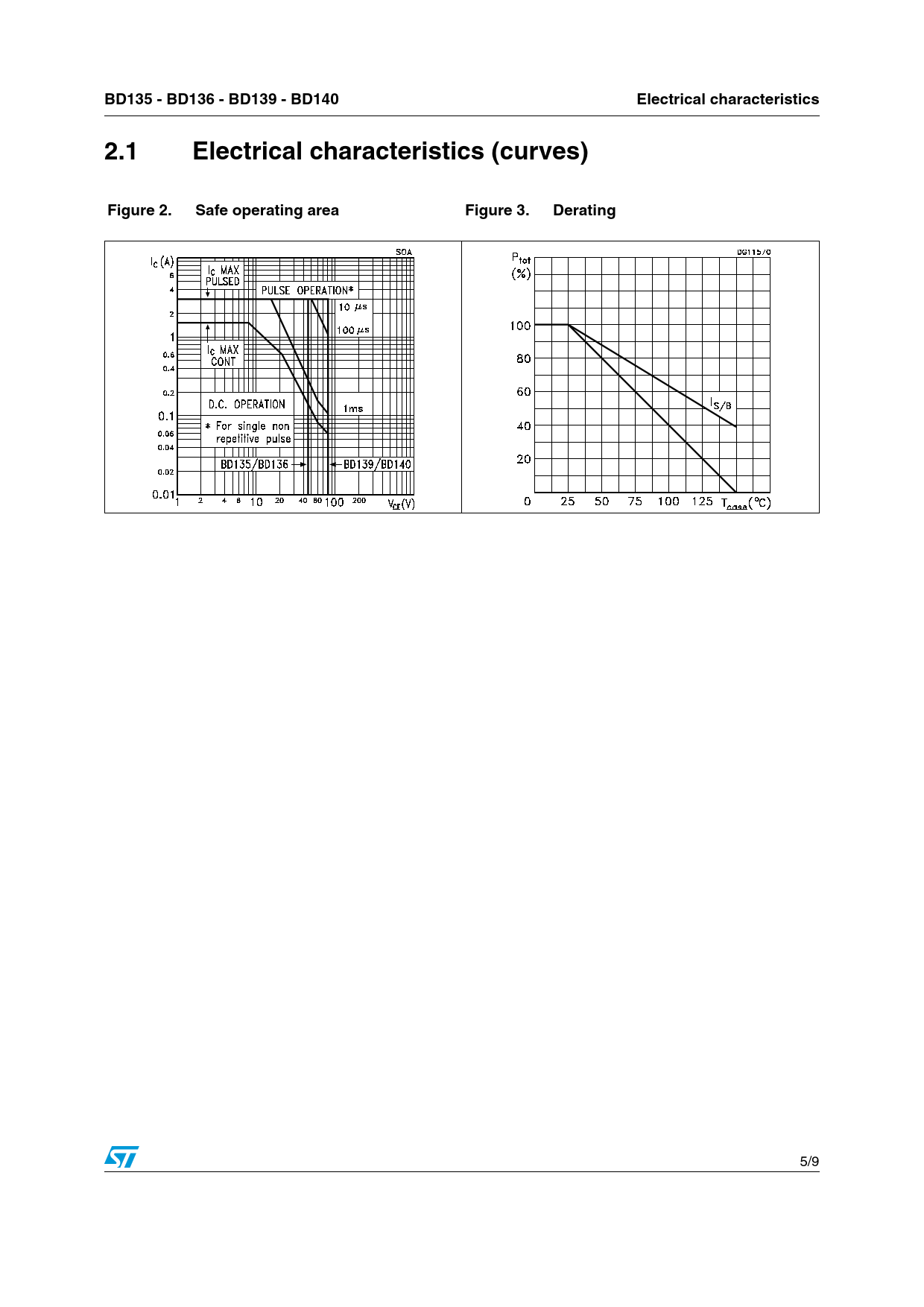

BD135 - BD136 - BD139 - BD140 Electrical characteristics 2.1 Electrical characteristics (curves) Figure 2. Safe operating area Figure 3. Derating
