DescriptionDC-to-2.5 GHz High IP3 Active Mixer
Pages / Page32 / 1 — DC-to-2.5 GHz. High IP3 Active Mixer. AD8343. FEATURES. FUNCTIONAL BLOCK …
File Format / SizePDF / 2.2 Mb
Document LanguageEnglish

DC-to-2.5 GHz. High IP3 Active Mixer. AD8343. FEATURES. FUNCTIONAL BLOCK DIAGRAM. High-performance active mixer. COMM. 14 COMM

Datasheet AD8343 Analog Devices

Model Line for this Datasheet

Text Version of Document

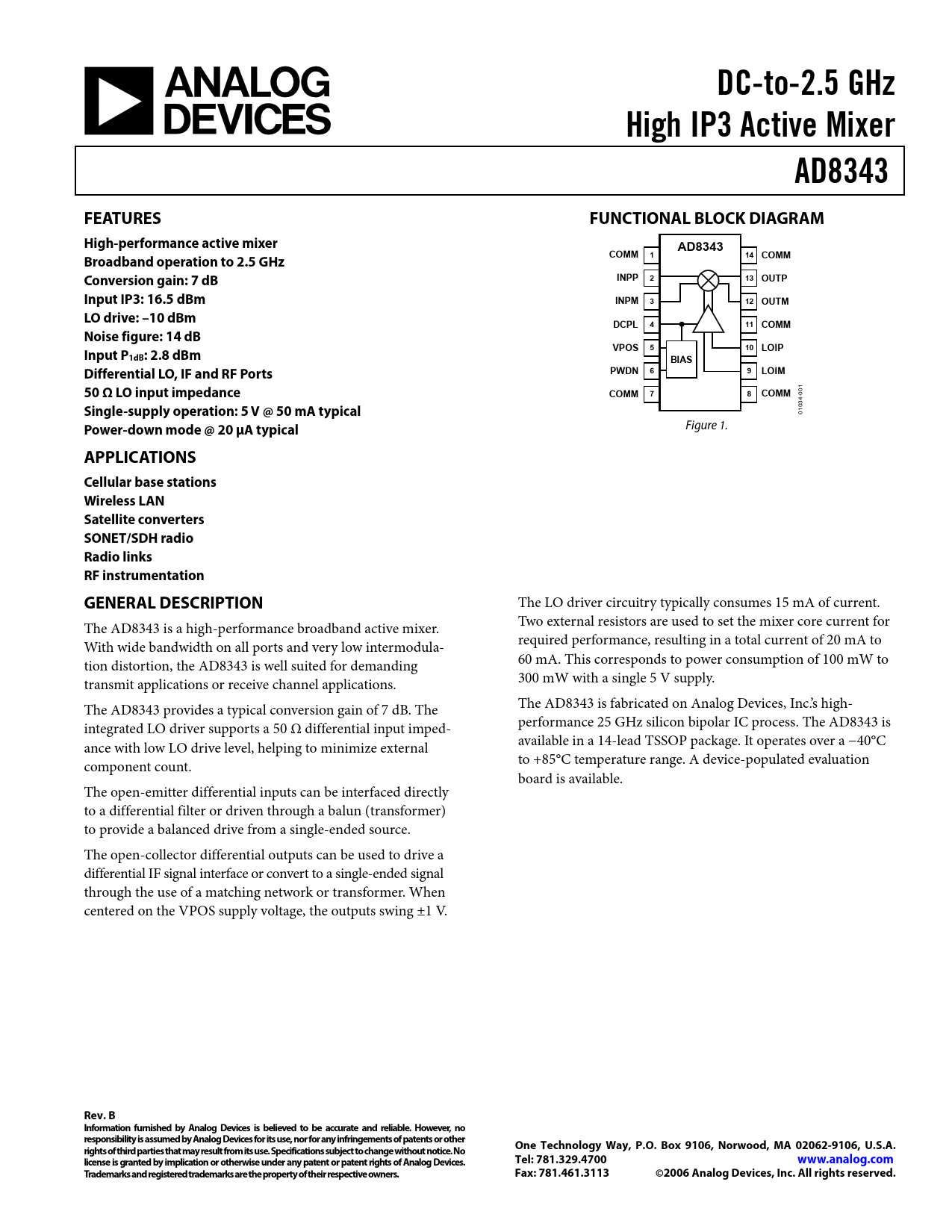

DC-to-2.5 GHz High IP3 Active Mixer AD8343 FEATURES FUNCTIONAL BLOCK DIAGRAM High-performance active mixer AD8343 COMM 1 14 COMM Broadband operation to 2.5 GHz Conversion gain: 7 dB INPP 2 13 OUTP Input IP3: 16.5 dBm INPM 3 12 OUTM LO drive: –10 dBm DCPL 4 11 COMM Noise figure: 14 dB VPOS 5 10 LOIP Input P1dB: 2.8 dBm BIAS Differential LO, IF and RF Ports PWDN 6 9 LOIM
1
50 Ω LO input impedance COMM 7 8 COMM
00 4- 03
Single-supply operation: 5 V @ 50 mA typical
01
Power-down mode @ 20 μA typical
Figure 1.
APPLICATIONS Cellular base stations Wireless LAN Satellite converters SONET/SDH radio Radio links RF instrumentation GENERAL DESCRIPTION
The LO driver circuitry typically consumes 15 mA of current. The AD8343 is a high-performance broadband active mixer. Two external resistors are used to set the mixer core current for With wide bandwidth on all ports and very low intermodula- required performance, resulting in a total current of 20 mA to tion distortion, the AD8343 is well suited for demanding 60 mA. This corresponds to power consumption of 100 mW to transmit applications or receive channel applications. 300 mW with a single 5 V supply. The AD8343 provides a typical conversion gain of 7 dB. The The AD8343 is fabricated on Analog Devices, Inc.’s high- integrated LO driver supports a 50 Ω differential input imped- performance 25 GHz silicon bipolar IC process. The AD8343 is ance with low LO drive level, helping to minimize external available in a 14-lead TSSOP package. It operates over a −40°C component count. to +85°C temperature range. A device-populated evaluation board is available. The open-emitter differential inputs can be interfaced directly to a differential filter or driven through a balun (transformer) to provide a balanced drive from a single-ended source. The open-collector differential outputs can be used to drive a differential IF signal interface or convert to a single-ended signal through the use of a matching network or transformer. When centered on the VPOS supply voltage, the outputs swing ±1 V.
