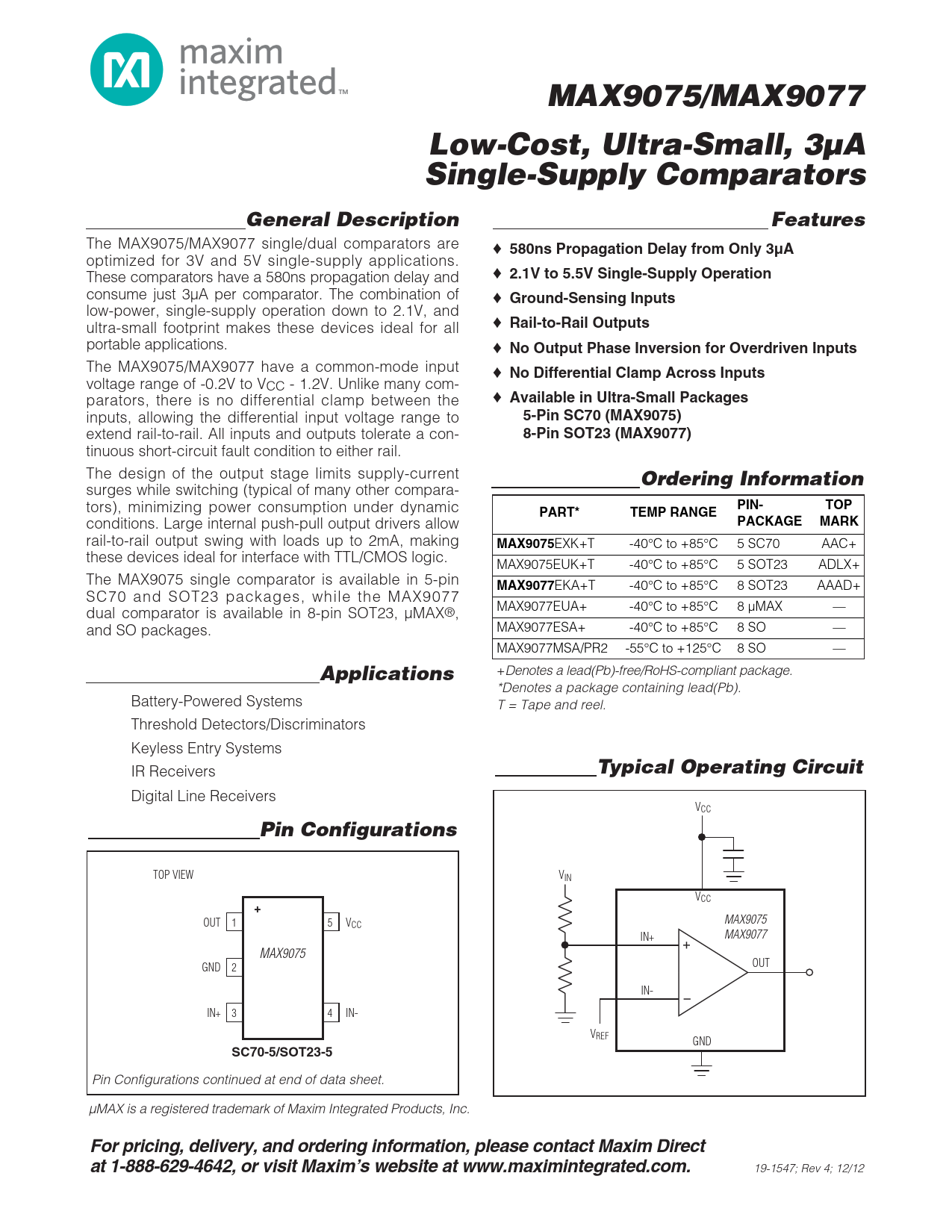

MAX9075/MAX9077 Low-Cost, Ultra-Small, 3µA Single-Supply Comparators General Description Features
The MAX9075/MAX9077 single/dual comparators are o
580ns Propagation Delay from Only 3µA
optimized for 3V and 5V single-supply applications. These comparators have a 580ns propagation delay and o
2.1V to 5.5V Single-Supply Operation
consume just 3µA per comparator. The combination of o
Ground-Sensing Inputs
low-power, single-supply operation down to 2.1V, and ultra-small footprint makes these devices ideal for all o
Rail-to-Rail Outputs
portable applications. o
No Output Phase Inversion for Overdriven Inputs
The MAX9075/MAX9077 have a common-mode input o
No Differential Clamp Across Inputs
voltage range of -0.2V to VCC - 1.2V. Unlike many com- parators, there is no differential clamp between the o
Available in Ultra-Small Packages
inputs, allowing the differential input voltage range to
5-Pin SC70 (MAX9075)
extend rail-to-rail. All inputs and outputs tolerate a con-
8-Pin SOT23 (MAX9077)
tinuous short-circuit fault condition to either rail. The design of the output stage limits supply-current
Ordering Information
surges while switching (typical of many other compara- tors), minimizing power consumption under dynamic
PIN- TOP PART* TEMP RANGE
conditions. Large internal push-pull output drivers allow
PACKAGE MARK
rail-to-rail output swing with loads up to 2mA, making
MAX9075
EXK+T -40°C to +85°C 5 SC70 AAC+ these devices ideal for interface with TTL/CMOS logic. MAX9075EUK+T -40°C to +85°C 5 SOT23 ADLX+ The MAX9075 single comparator is available in 5-pin
MAX9077
EKA+T -40°C to +85°C 8 SOT23 AAAD+ SC70 and SOT23 packages, while the MAX9077 MAX9077EUA+ -40°C to +85°C 8 µMAX — dual comparator is available in 8-pin SOT23, µMAX®, and SO packages. MAX9077ESA+ -40°C to +85°C 8 SO — MAX9077MSA/PR2 -55°C to +125°C 8 SO —
Applications
+Denotes a lead(Pb)-free/RoHS-compliant package. *Denotes a package containing lead(Pb). Battery-Powered Systems T = Tape and reel. Threshold Detectors/Discriminators Keyless Entry Systems IR Receivers
Typical Operating Circuit
Digital Line Receivers VCC
Pin Configurations
TOP VIEW VIN VCC
+
MAX9075 OUT 1 5 VCC IN+ MAX9077 MAX9075 OUT GND 2 IN- IN+ 3 4 IN- VREF GND
SC70-5/SOT23-5
Pin Configurations continued at end of data sheet. µMAX is a registered trademark of Maxim Integrated Products, Inc.
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
19-1547; Rev 4; 12/12
