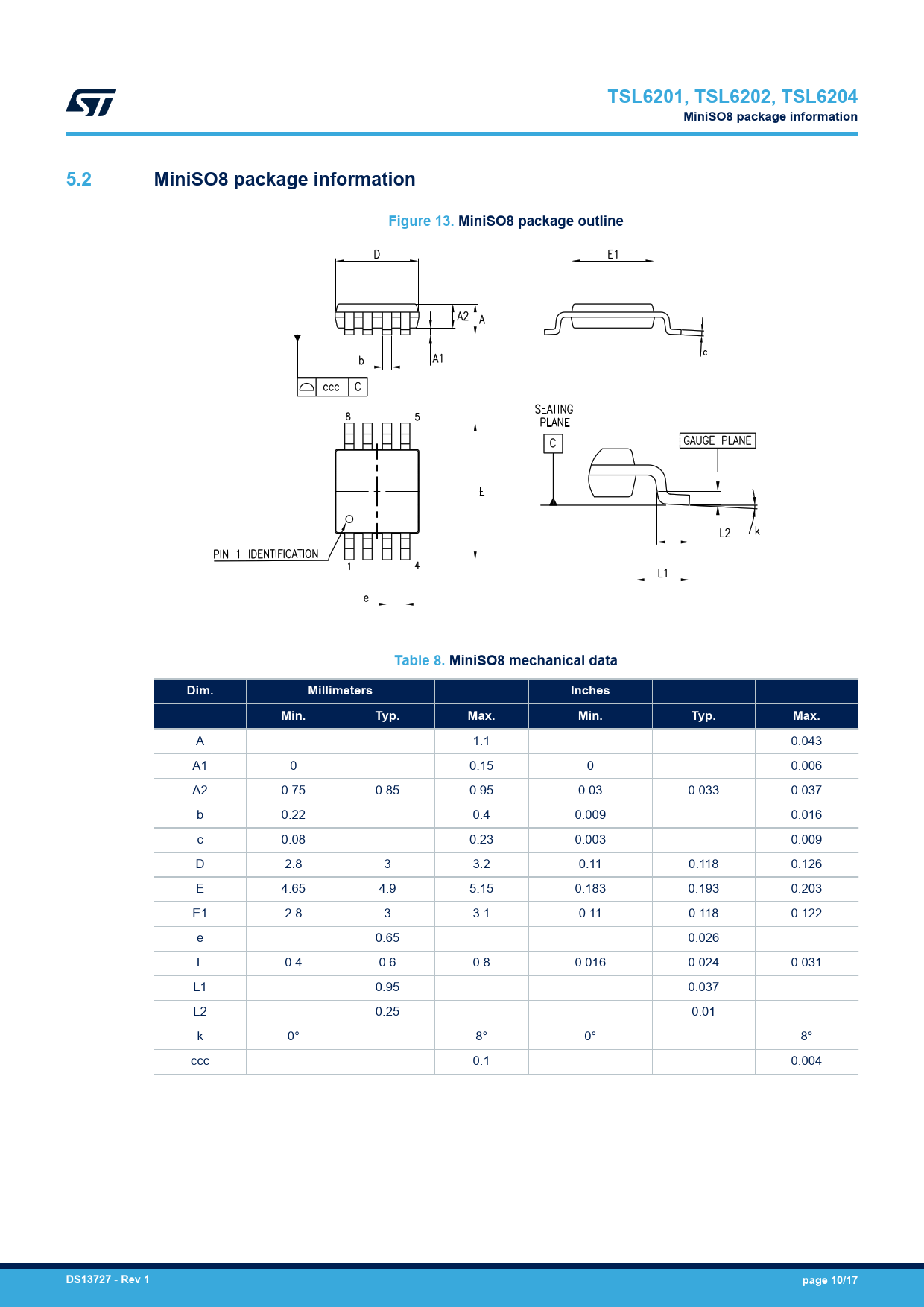

TSL6201, TSL6202, TSL6204. MiniSO8 package information. 5.2. Figure 13. MiniSO8 package outline
Model Line for this Datasheet
Text Version of Document
TSL6201, TSL6202, TSL6204 MiniSO8 package information 5.2 MiniSO8 package information Figure 13. MiniSO8 package outline Table 8. MiniSO8 mechanical data Dim. Millimeters Inches Min. Typ. Max. Min. Typ. Max.
A 1.1 0.043 A1 0 0.15 0 0.006 A2 0.75 0.85 0.95 0.03 0.033 0.037 b 0.22 0.4 0.009 0.016 c 0.08 0.23 0.003 0.009 D 2.8 3 3.2 0.11 0.118 0.126 E 4.65 4.9 5.15 0.183 0.193 0.203 E1 2.8 3 3.1 0.11 0.118 0.122 e 0.65 0.026 L 0.4 0.6 0.8 0.016 0.024 0.031 L1 0.95 0.037 L2 0.25 0.01 k 0° 8° 0° 8° ccc 0.1 0.004
