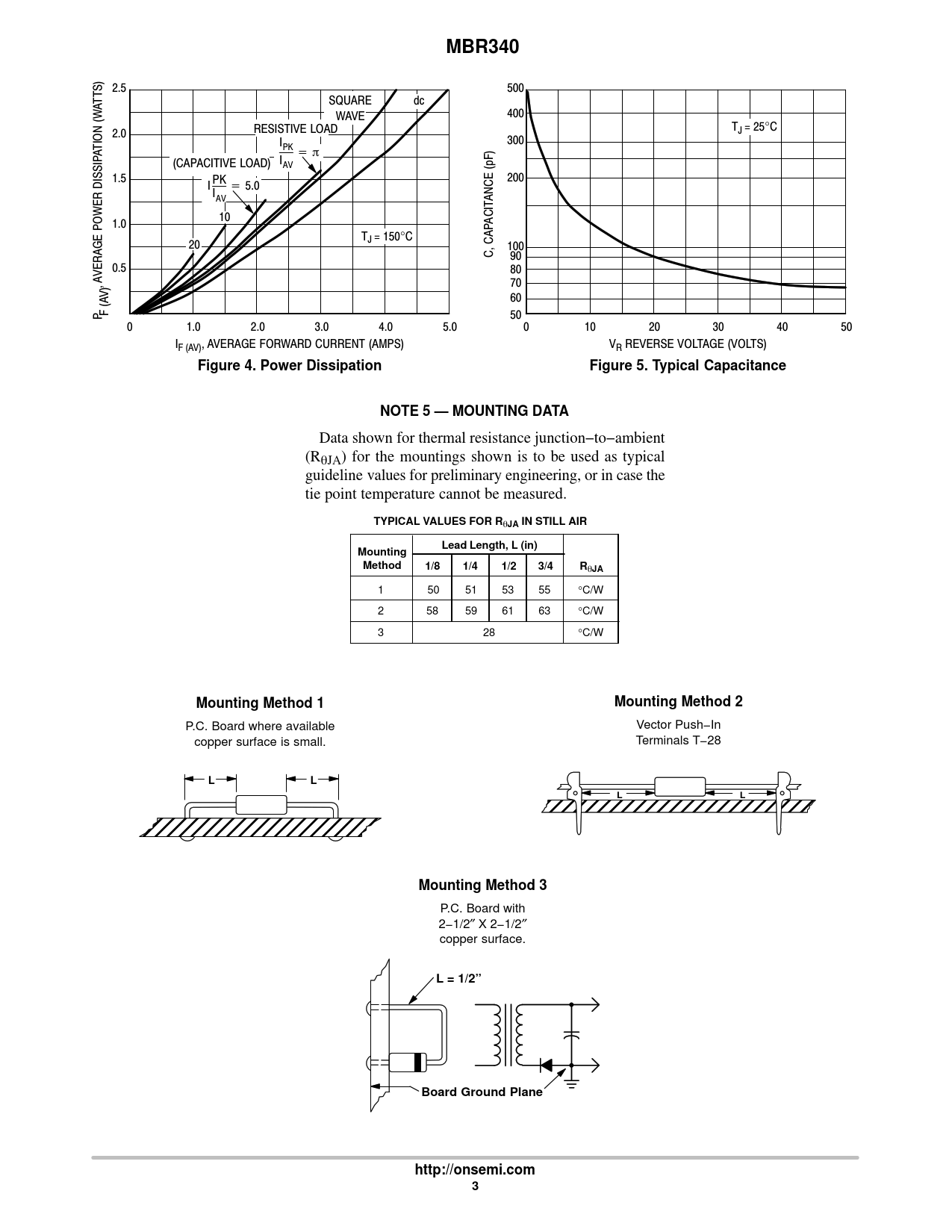

MBR340. Figure 4. Power Dissipation. Figure 5. Typical Capacitance. NOTE 5 — MOUNTING DATA. TYPICAL VALUES FOR. JA IN STILL AIR
Model Line for this Datasheet
Text Version of Document
MBR340
2.5 500 ATTS) SQUARE dc (W WAVE 400 2.0 RESISTIVE LOAD TJ = 25°C I 300 ATION PK + p (CAPACITIVE LOAD) IAV (pF) 1.5 200 DISSIP I PK + 5.0 IAV ANCE 1.0 10 ACIT POWER TJ = 150°C 20 100 C, CAP 90 0.5 80 AVERAGE 70 V) 60 , P F (A 50 0 1.0 2.0 3.0 4.0 5.0 0 10 20 30 40 50 IF (AV), AVERAGE FORWARD CURRENT (AMPS) VR REVERSE VOLTAGE (VOLTS)
Figure 4. Power Dissipation Figure 5. Typical Capacitance NOTE 5 — MOUNTING DATA
Data shown for thermal resistance junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering, or in case the tie point temperature cannot be measured.
TYPICAL VALUES FOR R
q
JA IN STILL AIR Lead Length, L (in) Mounting Method 1/8 1/4 1/2 3/4 R
q
JA
1 50 51 53 55 °C/W 2 58 59 61 63 °C/W 3 28 °C/W
Mounting Method 1 Mounting Method 2
P.C. Board where available Vector Push−In copper surface is small. Terminals T−28
L L L L
ÉÉÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ
Mounting Method 3
P.C. Board with 2−1/2″ X 2−1/2″ copper surface. ÉÉ
L = 1/2’’
ÉÉ ÉÉ ÉÉ ÉÉ
Board Ground Plane
ÉÉ ÉÉ
http://onsemi.com 3
