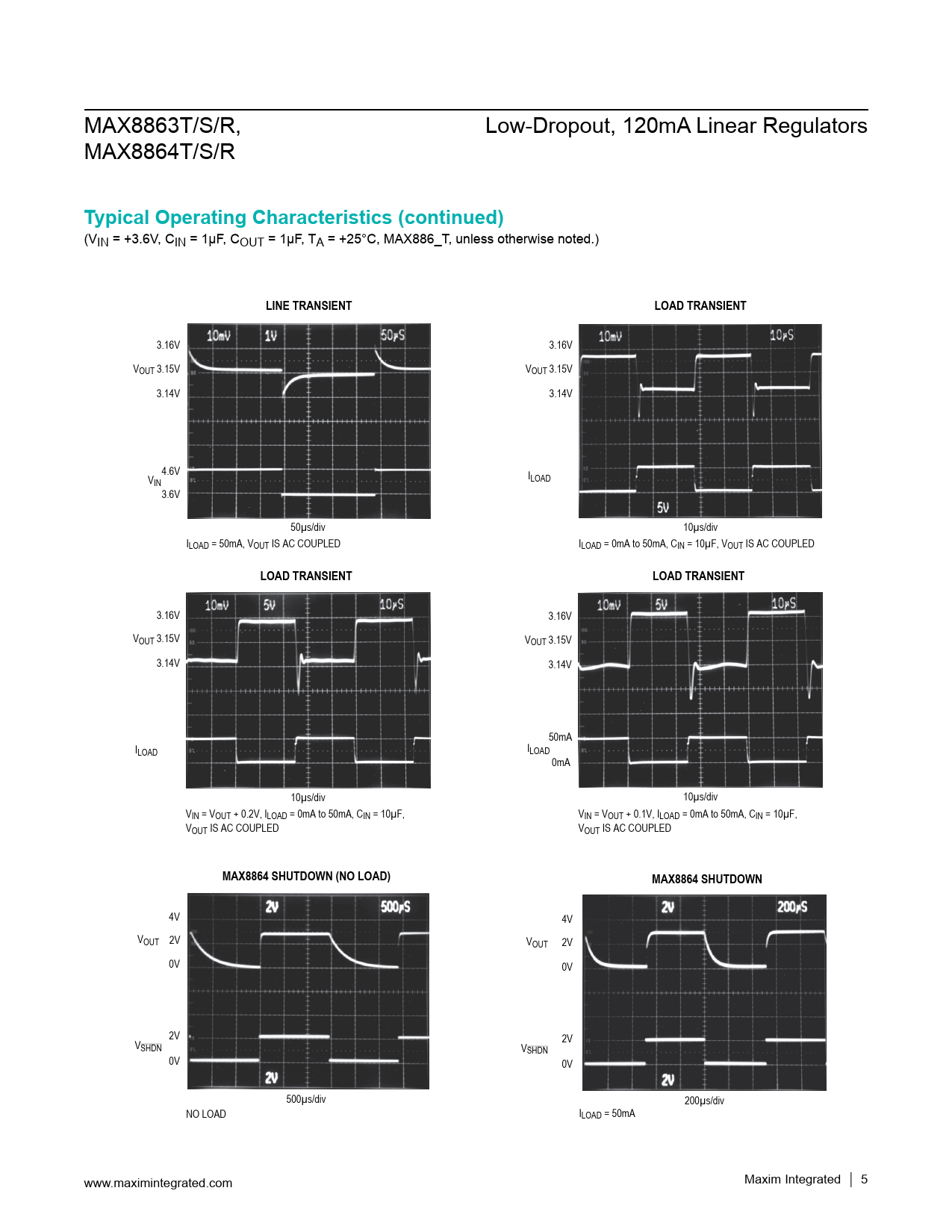

Typical Operating Characteristics (continued). LINE TRANSIENT. LOAD TRANSIENT. MAX8864 SHUTDOWN (NO LOAD). MAX8864 SHUTDOWN
Model Line for this Datasheet
Text Version of Document
MAX8863T/S/R, Low-Dropout, 120mA Linear Regulators MAX8864T/S/R
Typical Operating Characteristics (continued)
(VIN = +3.6V, CIN = 1μF, COUT = 1μF, TA = +25°C, MAX886_T, unless otherwise noted.)
LINE TRANSIENT LOAD TRANSIENT
3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V 4.6V V I IN LOAD 3.6V 50µs/div 10µs/div ILOAD = 50mA, VOUT IS AC COUPLED ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED
LOAD TRANSIENT LOAD TRANSIENT
3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V 50mA ILOAD ILOAD 0mA 10µs/div 10µs/div VIN = VOUT + 0.2V, ILOAD = 0mA to 50mA, CIN = 10µF, VIN = VOUT + 0.1V, ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED VOUT IS AC COUPLED
MAX8864 SHUTDOWN (NO LOAD) MAX8864 SHUTDOWN
4V 4V VOUT 2V VOUT 2V 0V 0V 2V V 2V SHDN VSHDN 0V 0V 500µs/div 200µs/div NO LOAD ILOAD = 50mA www.maximintegrated.com Maxim Integrated │
5
Typical Operating Characteristics (continued)
(VIN = +3.6V, CIN = 1μF, COUT = 1μF, TA = +25°C, MAX886_T, unless otherwise noted.)
LINE TRANSIENT LOAD TRANSIENT
3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V 4.6V V I IN LOAD 3.6V 50µs/div 10µs/div ILOAD = 50mA, VOUT IS AC COUPLED ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED
LOAD TRANSIENT LOAD TRANSIENT
3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V 50mA ILOAD ILOAD 0mA 10µs/div 10µs/div VIN = VOUT + 0.2V, ILOAD = 0mA to 50mA, CIN = 10µF, VIN = VOUT + 0.1V, ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED VOUT IS AC COUPLED
MAX8864 SHUTDOWN (NO LOAD) MAX8864 SHUTDOWN
4V 4V VOUT 2V VOUT 2V 0V 0V 2V V 2V SHDN VSHDN 0V 0V 500µs/div 200µs/div NO LOAD ILOAD = 50mA www.maximintegrated.com Maxim Integrated │
5
