Datasheet TL431, TL431A (Fairchild) - 6
| Manufacturer | Fairchild |
| Description | Programmable Shunt Regulator |
| Pages / Page | 10 / 6 — TL431/TL431A. Typical Application. MC7805/LM7805. TL431/A. Figure 10. … |
| File Format / Size | PDF / 100 Kb |
| Document Language | English |
TL431/TL431A. Typical Application. MC7805/LM7805. TL431/A. Figure 10. Shunt Regulator. Figure 11. Output Control for Three-
Model Line for this Datasheet
Text Version of Document
TL431/TL431A Typical Application
R ⎛ ⎞ R ⎛ 1⎞ R ⎛ ⎞ V 1 = 1 1 + ---- V V = V 1 + ---- V = 1 + ---- V O ⎝ R ⎠ ref O ref⎝ R ⎠ O ⎝ R ⎠ ref 2 2 2

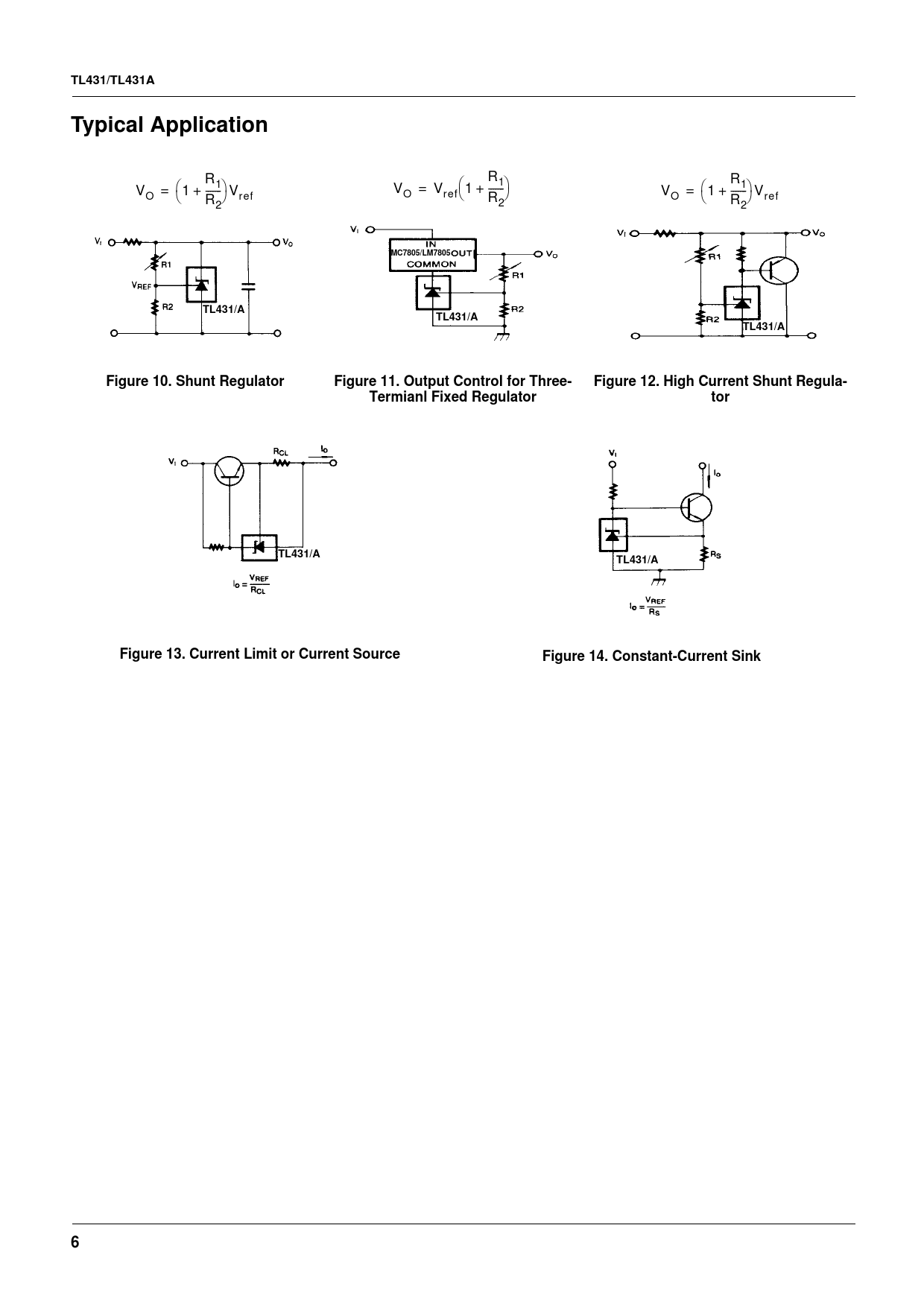

MC7805/LM7805 TL431/A TL431/A TL431/A Figure 10. Shunt Regulator Figure 11. Output Control for Three- Figure 12. High Current Shunt Regula- Termianl Fixed Regulator tor TL431/A TL431/A Figure 13. Current Limit or Current Source Figure 14. Constant-Current Sink 6
