Datasheet MOC3060, MOC3061, MOC3062, MOC3063 (Isocom) - 3
| Manufacturer | Isocom |
| Description | Zero Crossing Triac Output, 6 Pin |
| Pages / Page | 11 / 3 — MOC306x. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise … |
| File Format / Size | PDF / 3.2 Mb |
| Document Language | English |

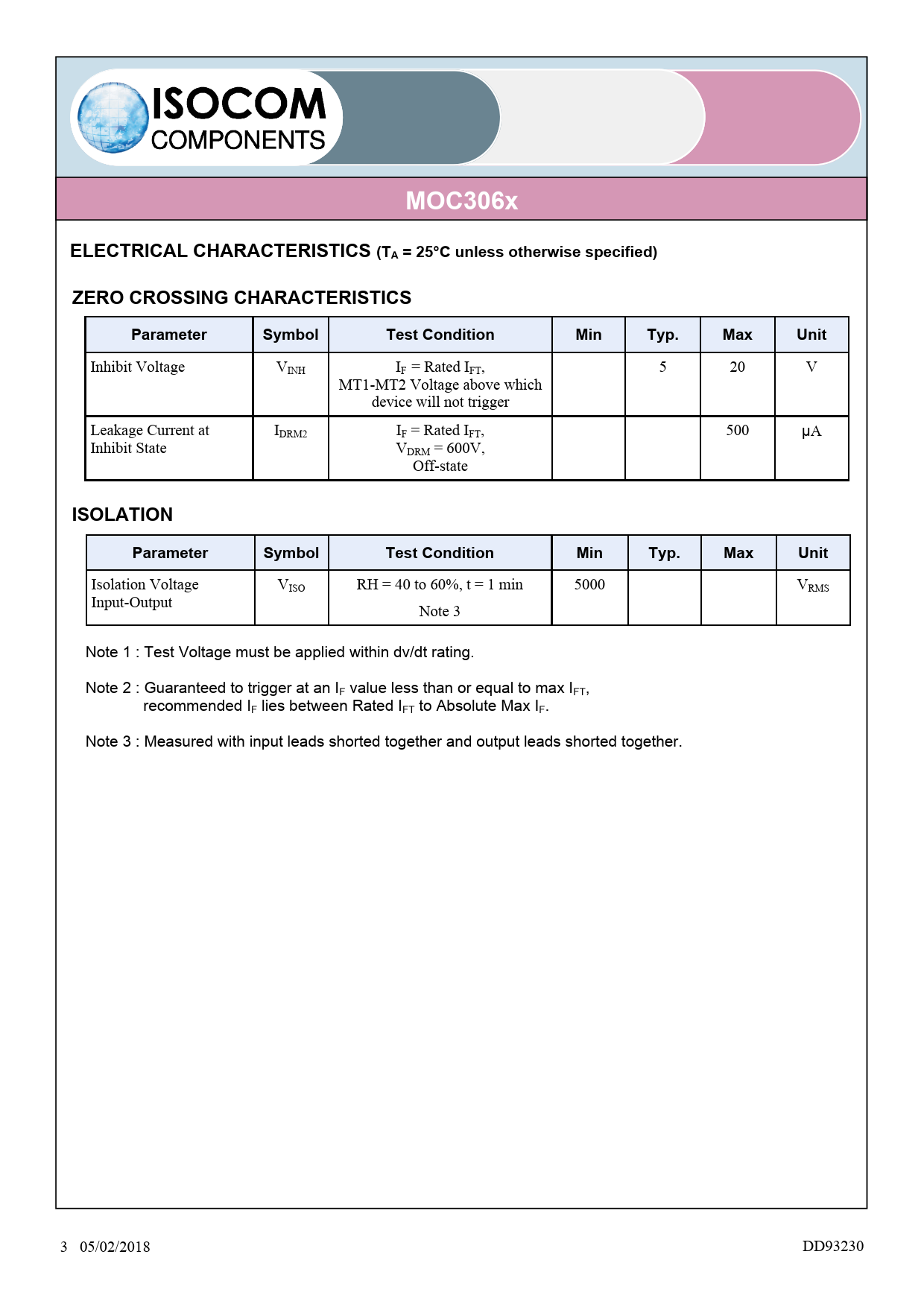

MOC306x. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified). ZERO CROSSING CHARACTERISTICS. Parameter. Symbol
Model Line for this Datasheet
Text Version of Document
MOC306x ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) ZERO CROSSING CHARACTERISTICS Parameter Symbol Test Condition Min Typ. Max Unit
Inhibit Voltage VINH IF = Rated IFT, 5 20 V MT1-MT2 Voltage above which
device will not trigger
Leakage Current at IDRM2 IF = Rated IFT, 500 μA Inhibit State V
DRM = 600V, Off-state
ISOLATION Parameter Symbol Test Condition Min Typ. Max Unit
Isolation Voltage VISO RH = 40 to 60%, t = 1 min 5000 VRMS
Input-Output Note 3
Note 1 : Test Voltage must be applied within dv/dt rating. Note 2 : Guaranteed to trigger at an IF value less than or equal to max IFT, recommended IF lies between Rated IFT to Absolute Max IF.
Note 3 : Measured with input leads shorted together and output leads shorted together. 3 05/02/2018 DD93230
